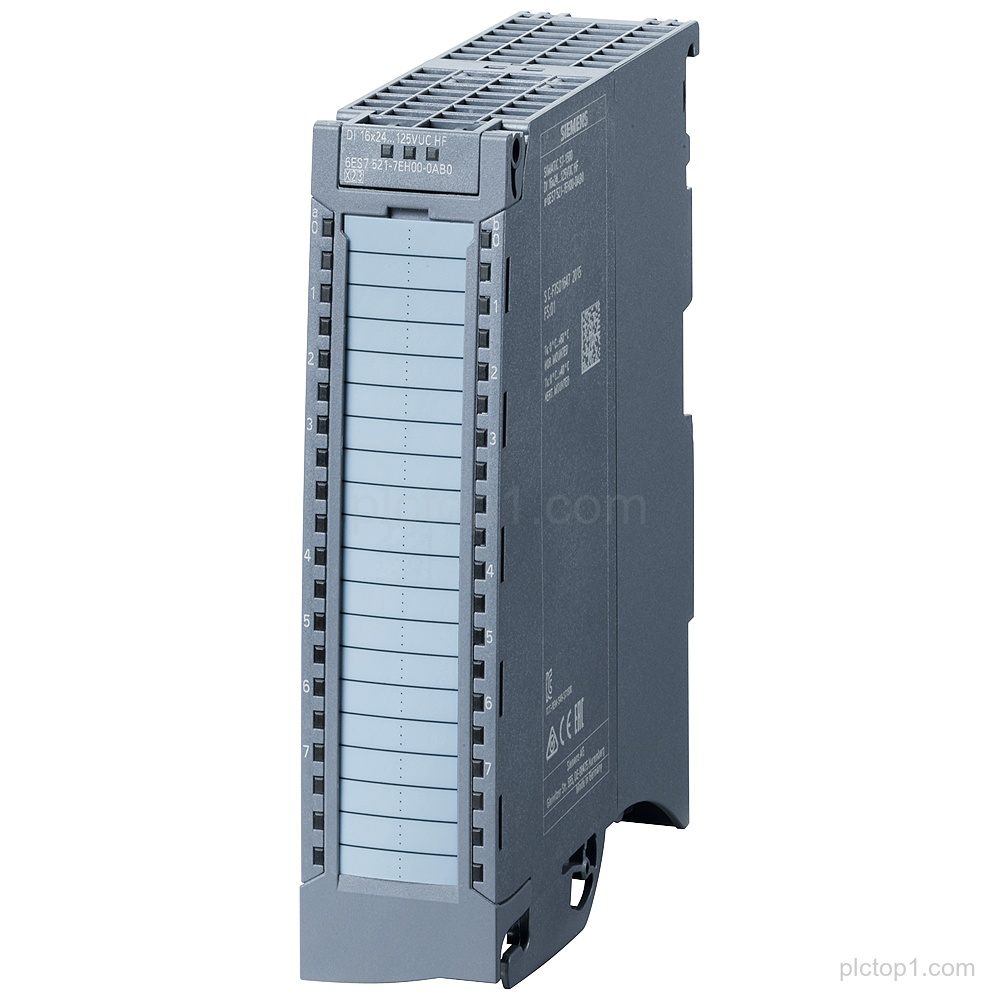

SIPLUS S7-1500 DI 16x 48 V UC/ 125 V digital input module (Part number: 6AG1521-7EH00-7AB0) with conformal coating for -40…+70 °C operation, featuring 16 input channels in groups of 1, configurable input delay, input type 3 (IEC 61131), and diagnostics with hardware interrupts.
Detailed Parameters
Based on:6ES7521-7EH00-0AB0
Product family/designation:SIPLUS S7-1500 DI 16x 48 V UC/ 125 V
Conformal coating:Yes
Ambient temperature range:-40…+70 °C
Module type:Digital input module
Number of channels:16
Channel grouping:Groups of 1
Input delay:0.05..20 ms
Input type:3 (IEC 61131)
Diagnostics:Diagnostics available
Hardware interrupts:Hardware interrupts available
Engineering Context
Use SIPLUS S7-1500 DI as a digital input module for 16 input channels configured in groups of 1.
Select the input delay range of 0.05..20 ms and input type 3 (IEC 61131) for the module’s digital input behavior.
Enable and use diagnostics and hardware interrupts as supported by the digital input module.
FAQ
1. What is the module function and how many digital input channels does it provide?
It is a digital input module with 16 channels in groups of 1.
2. What input delay range is supported?
The input delay is 0.05..20 ms.
3. Which input type is supported?
Input type 3 (IEC 61131) is supported.
4. What temperature range is the module designed for?
The module is designed for -40…+70 °C.
5. Does the module include diagnostics and hardware interrupts?
Yes, diagnostics and hardware interrupts are available.
6. What is the module based on?
It is based on 6ES7521-7EH00-0AB0.
