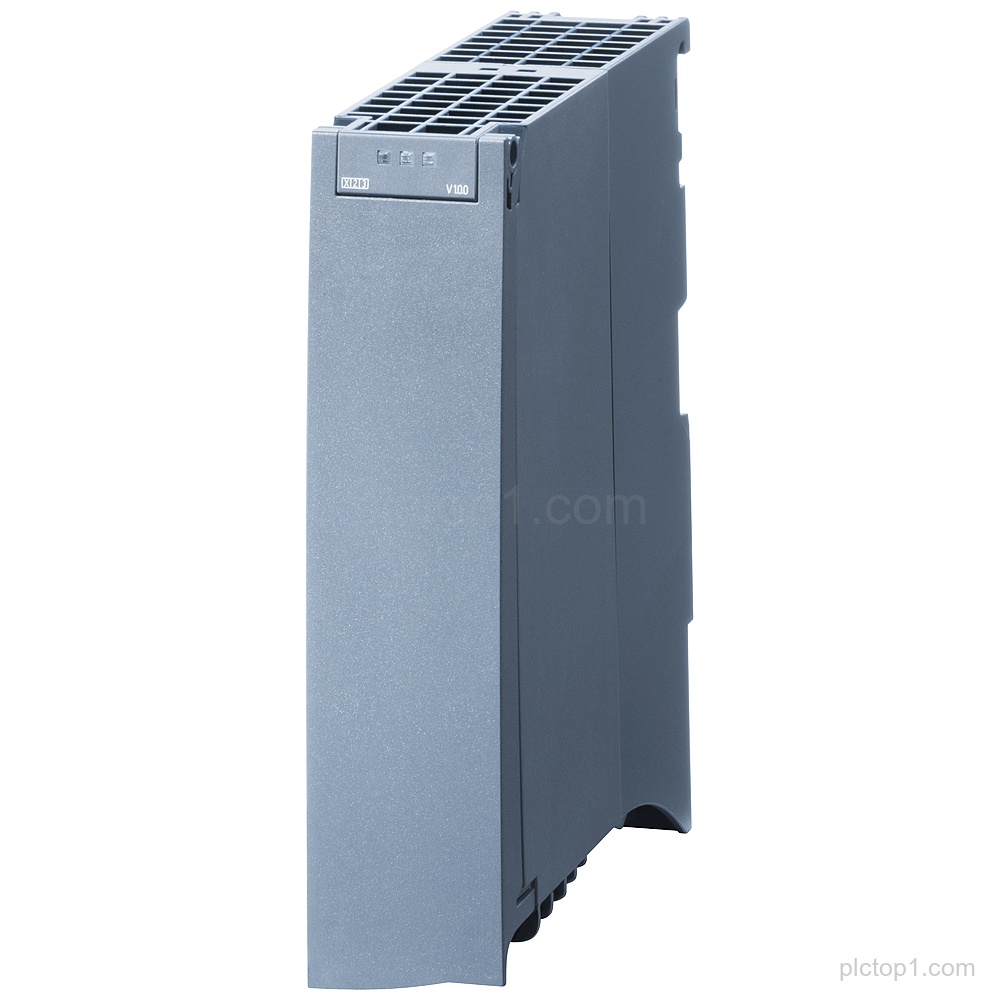

SIPLUS S7-1500 DQ digital output module with part number 6AG1522-1BH01-7AB0, based on 6ES7522-1BH01-0AB0 with conformal coating.
Detailed Parameters
Product family:SIPLUS S7-1500 DQ
Based on:6ES7522-1BH01-0AB0
Conformal coating:Yes
Function:digital output module
Number of channels:16
Channel grouping:in groups of 8
Output voltage:24VDC
Output current (per channel):0.5A
Current per group:4 A per group
Single-channel diagnostics:Yes
Operating temperature:-40…+70 °C
Substitute value:Yes
Engineering Context
The SIPLUS S7-1500 DQ provides digital output switching for 16 channels arranged in groups of 8.
The module supports single-channel diagnostics and provides a substitute value.
Conformal coating is provided as the basis on 6ES7522-1BH01-0AB0 for operation over -40…+70 °C.
FAQ
1. How many channels does 6AG1522-1BH01-7AB0 provide?
It provides 16 channels in groups of 8.
2. What output voltage and per-channel current are specified for this digital output module?
The module is based on 24VDC and provides 0.5A per channel.
3. Is single-channel diagnostics available for 6AG1522-1BH01-7AB0?
Yes, single-channel diagnostics is specified.
4. What is the specified operating temperature range?
-40…+70 °C.
5. Does the module include a substitute value function?
Yes, substitute value is specified.
6. Is conformal coating included in this product?
Yes, conformal coating is specified.
