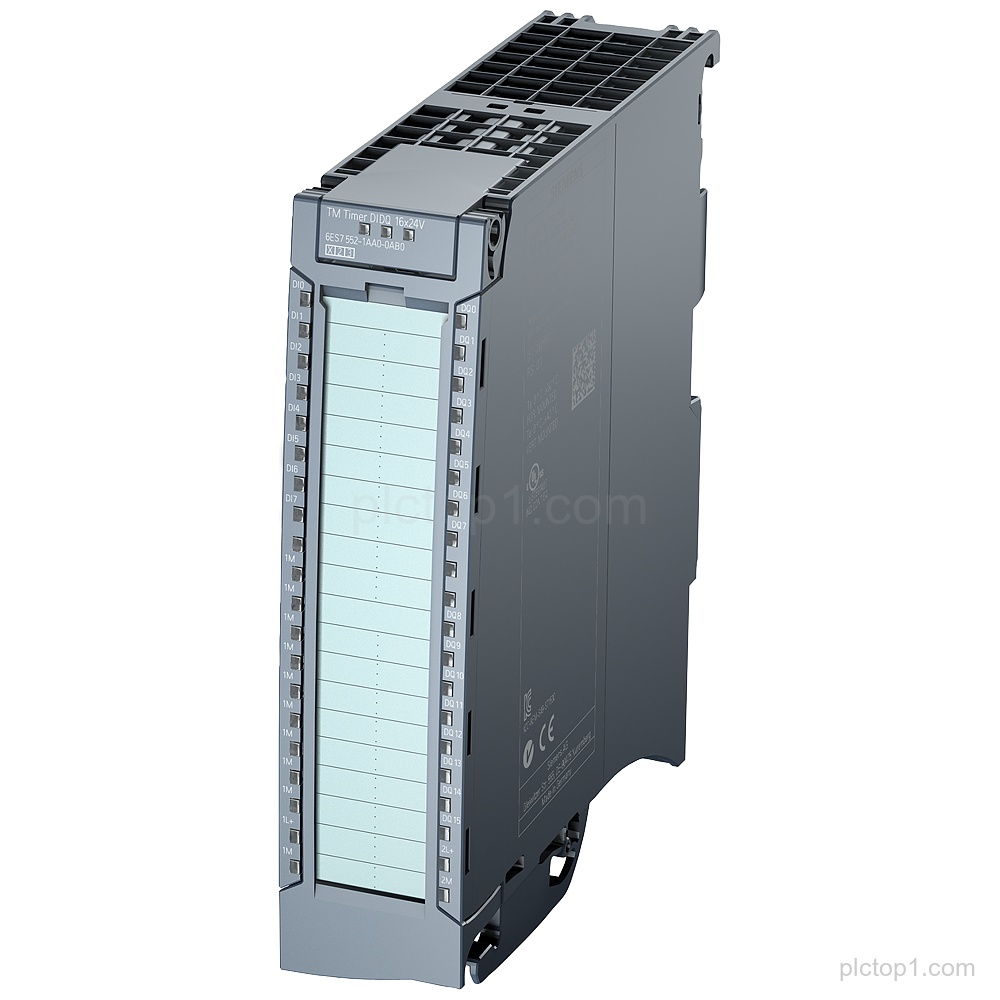

SIPLUS S7-1500 digital output module with part number 6AG1522-5FH00-7AB0, 16x230VAC 1A ST TRIAC based on 6ES7522-5FH00-0AB0, conformal coated and designed for -40…+70 °C operation.
Detailed Parameters
Module type:digital output module
Channels:16 channels
Output groups:16 channels in groups of 2
Output technology:ST TRIAC
Nominal output voltage:230 VAC
Output current:1 A
Current per group:2 A per group
Based on:6ES7522-5FH00-0AB0
Coating:conformal coating
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Substitute value:substitute value
Engineering Context
The module provides digital output switching with ST TRIAC technology for 230 VAC applications.
Outputs are arranged in 16 channels grouped in pairs, with a specified current limit of 2 A per group.
The module is based on 6ES7522-5FH00-0AB0 and includes conformal coating for operation in the stated temperature range.
