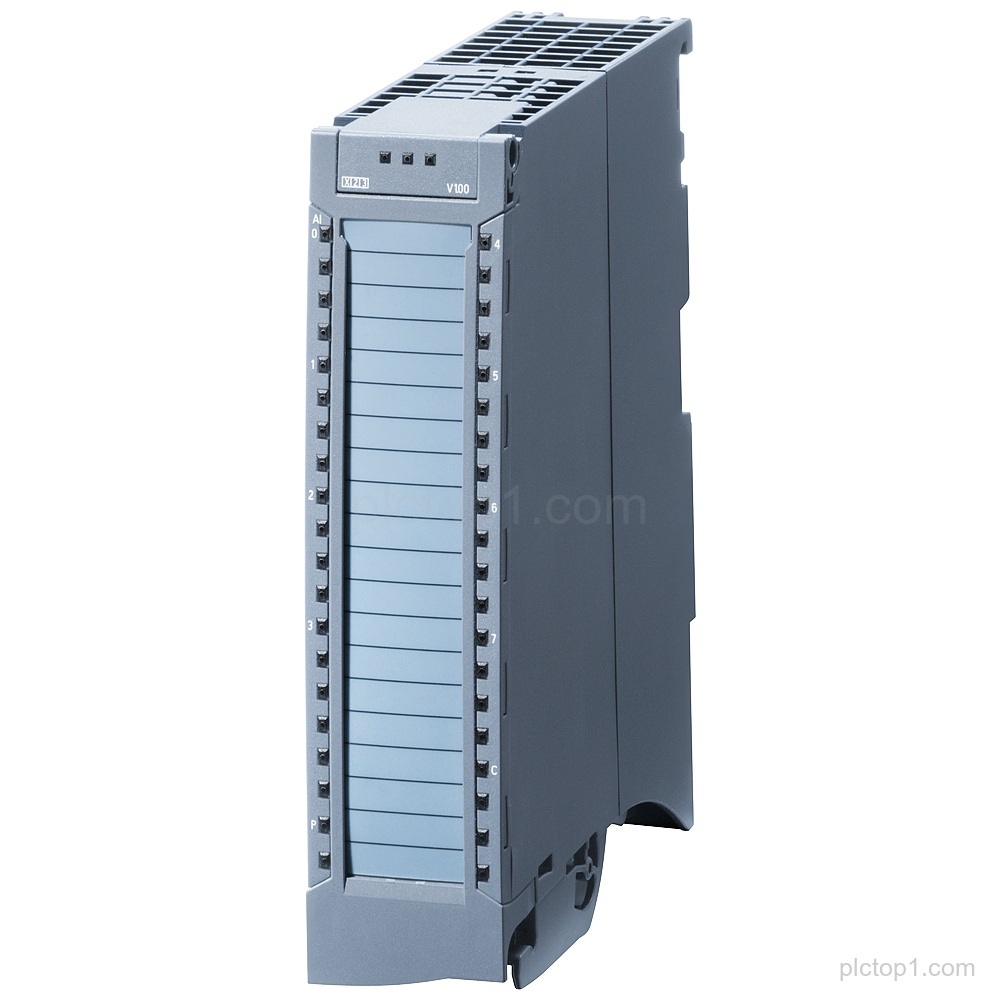

SIPLUS S7-1500 analog input module (6AG1531-7KF00-7AB0) based on 6ES7531-7KF00-0AB0 with conformal coating for U/I/RTD/TC analog input and diagnostics.
Detailed Parameters
Based on:6ES7531-7KF00-0AB0
Conformal coating:with conformal coating
Operating temperature:-40…+70 °C
Module type:analog input module
Analog input type:U/I/RTD/TC based
Resolution:16-bit
Accuracy:0.3%
Channel count:8 channels in groups of 8
RTD channels:4 channels for RTD measurement
Common mode voltage:10 V
Diagnostics:diagnostics
Hardware interrupts:including infeed element
Shielding components:shielding bracket and shield terminal
Engineering Context
The module provides analog inputs for U/I/RTD/TC measurements with 16-bit resolution and 8 channels grouped in 8.
For RTD measurement, 4 channels are specified within the 8-channel configuration.
Diagnostics and hardware interrupts (including infeed element) are supported, with shielding bracket and shield terminal included.
FAQ
1. What is the module type and resolution of 6AG1531-7KF00-7AB0?
It is an analog input module with 16-bit resolution.
2. How many analog input channels are available and how are they grouped?
There are 8 channels in groups of 8.
3. Which measurement type is supported for RTD and how many RTD channels are provided?
RTD measurement is supported with 4 channels.
4. What is the stated accuracy for this module?
The accuracy is 0.3%.
5. What is the common mode voltage specified for this module?
The common mode voltage is 10 V.
6. What support is listed for diagnostics and hardware interrupts?
The module includes diagnostics and hardware interrupts, including infeed element.
