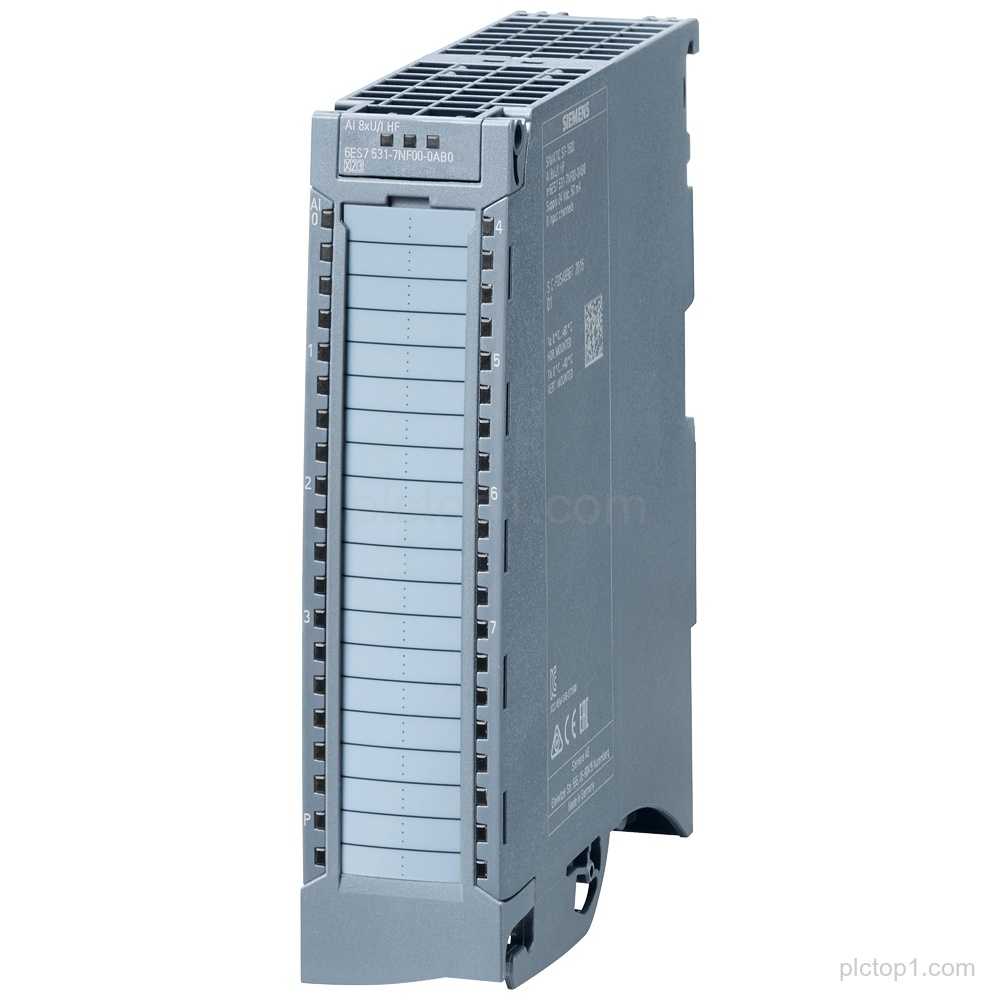

SIPLUS S7-1500 AI 8xU/I HF based on 6ES7531-7NF00-0AB0; part number 6AG1531-7NF00-7AB0.
Detailed Parameters
Product family:SIPLUS S7-1500 AI 8xU/I HF
Based on:6ES7531-7NF00-0AB0
Module type:Analog input module
Conformal coating:Yes
Temperature range:-40…+70 °C
Start up temperature:-25 °C
Resolution:16-bit
Accuracy:0.1%
Channel configuration:8 channels in groups of 1
Common mode voltage:30 V AC/60 V DC
Diagnostics:Diagnostics
Hardware interrupts:Hardware interrupts
Included:including infeed element, shielding bracket and shield terminal
Engineering Context
The SIPLUS S7-1500 AI 8xU/I HF is an analog input module intended for analog signal acquisition with 16-bit resolution and 0.1% accuracy.
The module provides 8 channels configured in groups of 1 and supports diagnostics and hardware interrupts.
The design is based on 6ES7531-7NF00-0AB0 and includes conformal coating for an operating temperature range of -40…+70 °C.
FAQ
1. What product family and function does part number 6AG1531-7NF00-7AB0 provide?
6AG1531-7NF00-7AB0 is a SIPLUS S7-1500 AI 8xU/I HF analog input module.
2. How many analog input channels are available and how are they grouped?
It has 8 channels in groups of 1.
3. What analog input resolution and accuracy are specified?
The module specifies 16-bit resolution and 0.1% accuracy.
4. Which diagnostics and interrupt features are included?
The module includes diagnostics and hardware interrupts.
5. What temperature range and start-up temperature are specified for this module?
Temperature range is -40…+70 °C and start up temperature is -25 °C.
6. What is the specified common mode voltage?
The specified common mode voltage is 30 V AC/60 V DC.
