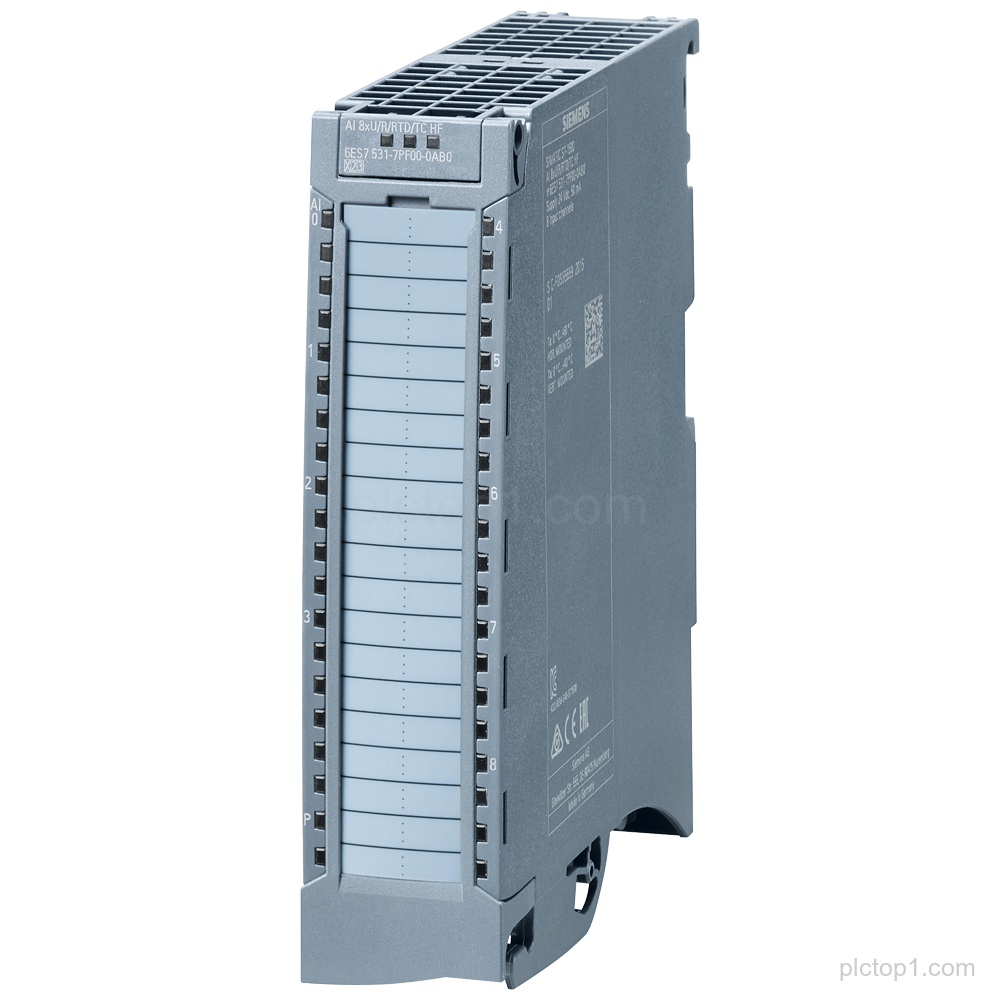

SIPLUS S7-1500 AI analog input module 6AG1531-7PF00-4AB0 for 8 channels in groups of 1, with conformal coating and diagnostics including hardware interrupts with infeed element, shielding bracket and shield terminal, designed for 0…+60 °C.
Detailed Parameters
Module family:SIPLUS S7-1500 AI
Analog signal types:U/R/RTD/TC
Channels:8
Channel grouping:in groups of 1
Resolution:16-bit
Accuracy:0.1%
Conformal coating:with conformal coating
Operating temperature:0…+60 °C
Common mode voltage:30 V AC/60 V DC
Diagnostics:diagnostics
Hardware interrupts:including infeed element, shielding bracket and shield terminal
Based on:6ES7531-7PF00-0AB0
Engineering Context
The SIPLUS S7-1500 AI module 6AG1531-7PF00-4AB0 provides analog input acquisition for U/R/RTD/TC signals using 16-bit resolution and 8 channels in groups of 1.
The module supports diagnostics and hardware interrupts including infeed element, shielding bracket and shield terminal.
With conformal coating, the module is specified for an operating temperature range of 0…+60 °C and a common mode voltage of 30 V AC/60 V DC.
