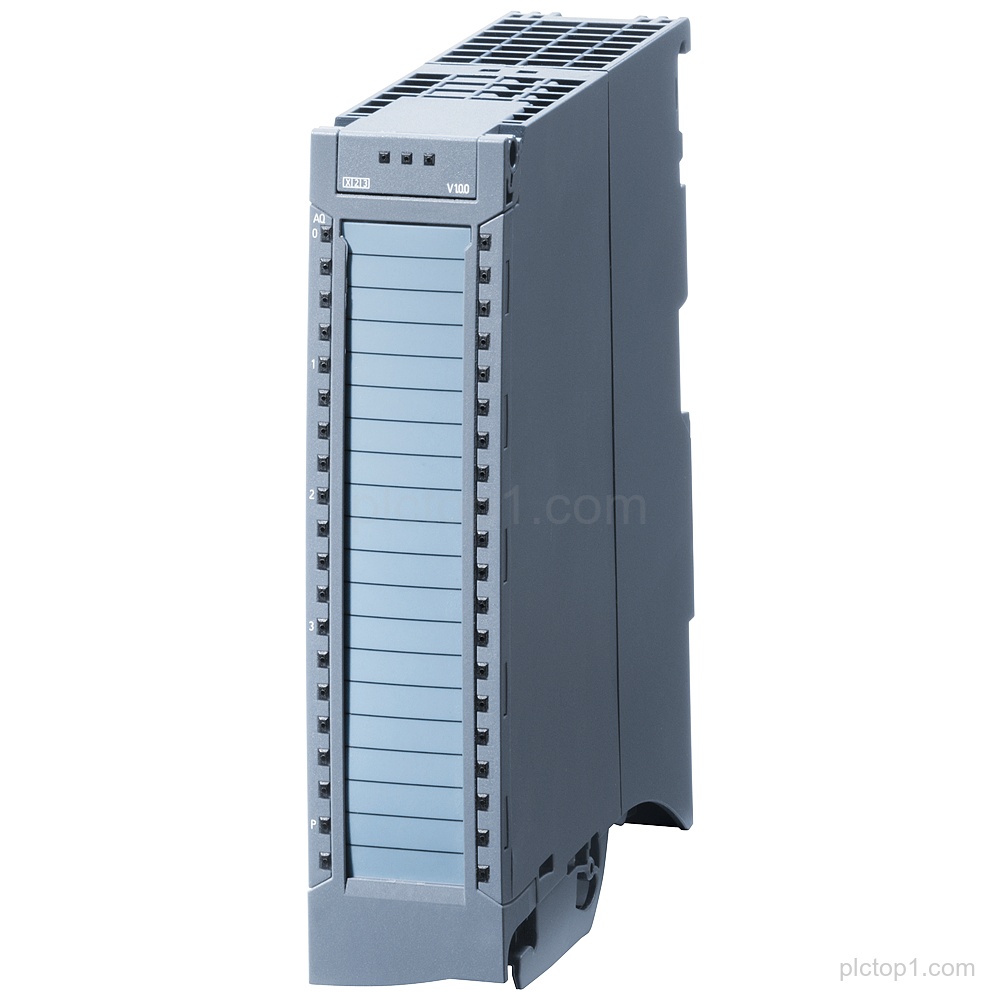

SIPLUS S7-1500 AQ 8xU/I HS based on 6ES7532-5HF00-0AB0, part number 6AG1532-5HF00-7AB0, provides analog output functionality with 8 channels in groups of 8, 16-bit resolution, accuracy 0.4%, and diagnostics.
Detailed Parameters
Base type:SIPLUS S7-1500 AQ 8xU/I HS based on 6ES7532-5HF00-0AB0
Conformal coating:With conformal coating
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Signal type:Analog output
Resolution:16-bit
Accuracy:0.4%
Channels:8 channels in groups of 8
Diagnostics:Diagnostics
Substitute value:Substitute value
Substitute-value response time:8 channels in 0.125 ms including infeed element, shielding bracket and shield terminal
Engineering Context
The module is designed as an analog output module within SIPLUS S7-1500 AQ (8xU/I HS) and supports 8 channels configured in groups of 8.
SIPLUS S7-1500 AQ includes diagnostics and provides a substitute value with a specified substitute-value response time for 8 channels.
The product is based on 6ES7532-5HF00-0AB0 and is provided with conformal coating for operation over -40…+70 °C with a specified start-up temperature of -25 °C.
FAQ
1. What is the module type for part number 6AG1532-5HF00-7AB0?
It is an analog output module (SIPLUS S7-1500 AQ 8xU/I HS).
2. How many analog output channels are provided?
8 channels in groups of 8.
3. What output resolution and accuracy are specified?
16-bit resolution and accuracy 0.4%.
4. What temperatures are specified for operation and start-up?
Operating temperature is -40…+70 °C and start-up temperature is -25 °C.
5. Is conformal coating included?
Yes, it is with conformal coating.
6. What safety-related behavior for outputs is specified?
A substitute value is specified with a response time of 8 channels in 0.125 ms including infeed element, shielding bracket and shield terminal, and diagnostics are provided.
