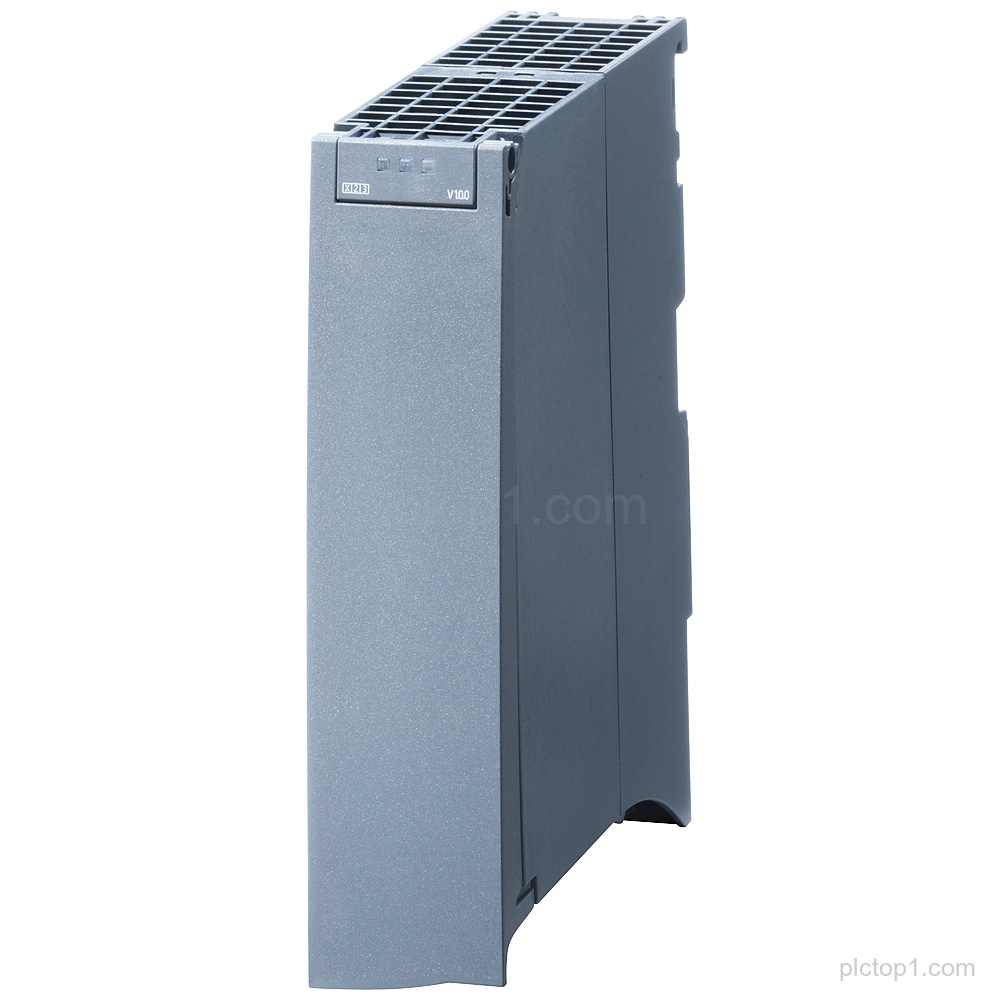

SIPLUS S7-1500 CM PTP RS232 HF, part number 6AG1541-1AD00-7AB0, is a communications module for serial connection RS-232 based on 6ES7541-1AD00-0AB0 with conformal coating.
Detailed Parameters
Product family:SIPLUS S7-1500 CM PTP RS232 HF
Based on:6ES7541-1AD00-0AB0
Coating:conformal coating
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Interface / serial connection:RS-232
Connection type:9-pin D-sub plug
Protocols / functions:Freeport, 3964 (R), USS, MODBUS RTU master, slave
Baud rate:115200 Kbit/s
Engineering Context
The SIPLUS S7-1500 CM PTP RS232 HF module 6AG1541-1AD00-7AB0 provides a communications module for serial connection RS-232.
The module is based on 6ES7541-1AD00-0AB0 and is supplied with conformal coating.
The module supports Freeport, 3964 (R), USS, and MODBUS RTU master/slave operation at 115200 Kbit/s.
