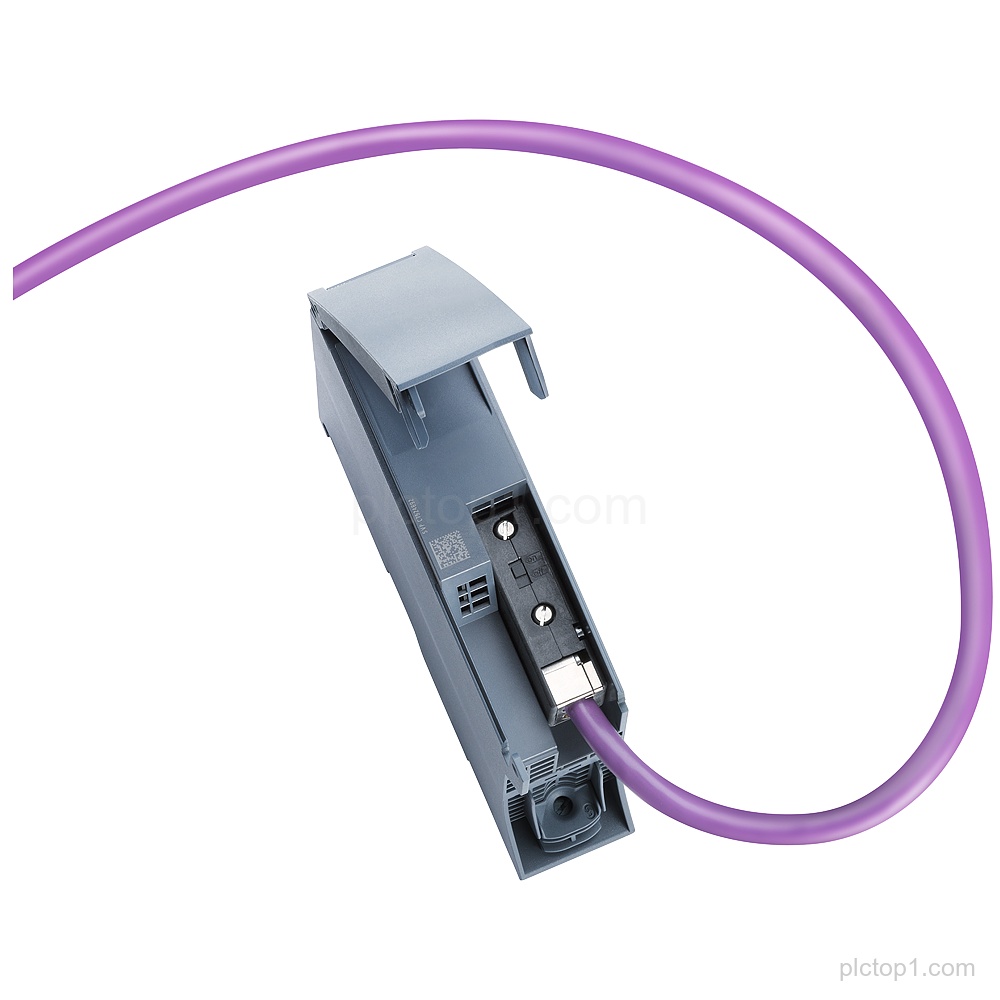

SIPLUS S7-1500 CM 1542-5 (PROFIBUS) based on 6GK7542-5DX00-0XE0; part number 6AG1542-5DX00-7XE0 provides PROFIBUS DP connection for S7-1500 including S7 and PG/OP communication, time-of-day synchronization, and diagnostics.
Detailed Parameters
Product family:SIPLUS S7-1500 CM 1542-5
Based on:6GK7542-5DX00-0XE0
Topology:Communications module for connection of S7-1500 to PROFIBUS DP
PROFIBUS DP roles:DP master and DP Slave
S7 and PG/OP communication:Supported
Time-of-day synchronization:Supported
Diagnostics:Provided
Conformal coating:With conformal coating
Ambient operating range:-40…+70 °C
Start-up temperature:start up -25 °C
Engineering Context
SIPLUS S7-1500 CM 1542-5 provides a communications module for connection of S7-1500 to PROFIBUS DP.
The module supports PROFIBUS DP operation as DP master and DP Slave.
S7 and PG/OP communication, time-of-day synchronization, and diagnostics are included.
FAQ
1. What system does 6AG1542-5DX00-7XE0 support connection to?
It is designed for connection of S7-1500 to PROFIBUS DP.
2. Which PROFIBUS DP roles does SIPLUS S7-1500 CM 1542-5 support?
It supports operation as DP master and DP Slave.
3. Which communication types are supported on the module?
S7 and PG/OP communication are supported.
4. Does the module support time-of-day synchronization and diagnostics?
Yes, time-of-day synchronization and diagnostics are provided.
5. What temperature ranges are specified for this module?
The specified ambient operating range is -40…+70 °C, with start up -25 °C.
