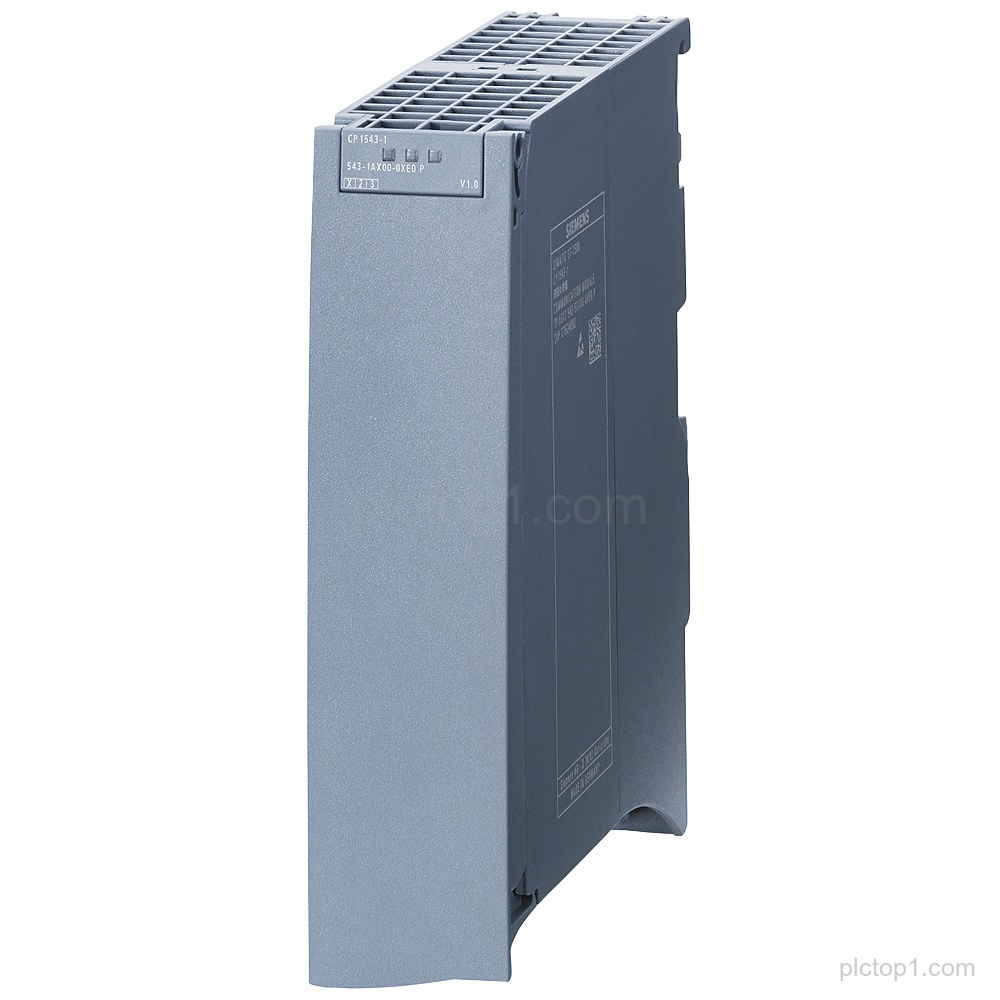

SIPLUS NET CP 1543-1 communications processor, part number 6AG1543-1AX00-2XE0, is based on 6GK7543-1AX00-0XE0 with conformal coating and supports Industrial Ethernet connectivity for SIMATIC S7-1500, including TCP/IP, ISO, UDP, and S7 communication, with security functions and diagnostics.
Detailed Parameters
Based on:6GK7543-1AX00-0XE0
Conformal coating:Yes
Operating temperature:-40…+70 °C
Communications:TCP/IP, ISO, UDP, S7 communication
IP broadcast/multicast:Supported
Security:Hardware identification, IP/MAC access list, firewall
Diagnostics:SNMPV1/V3
DHCP:Supported
FTP:Client/server
Email:Supported
IP protocol support:IPv4/IPv6
Data storage:On SD Card of the CPU
Time-of-day synchronization:NTP
Engineering Context
The SIPLUS NET CP 1543-1 (6AG1543-1AX00-2XE0) is intended for connecting SIMATIC S7-1500 to Industrial Ethernet.
The communications processor supports TCP/IP, ISO, UDP, and S7 communication, including IP broadcast/multicast.
Security is provided with hardware identification, IP/MAC access list, and firewall, and diagnostics are supported via SNMPV1/V3.
FAQ
1. What is the product family and designation of 6AG1543-1AX00-2XE0?
SIPLUS NET CP 1543-1.
2. 6AG1543-1AX00-2XE0 is based on which Siemens product?
It is based on 6GK7543-1AX00-0XE0.
3. For what is the communications processor intended in the SIMATIC system?
It is for connecting SIMATIC S7-1500 to Industrial Ethernet.
4. Which communication protocols are supported?
TCP/IP, ISO, UDP, and S7 communication.
5. What security functions are available?
Hardware identification, IP/MAC access list, and firewall.
6. Which diagnostics protocol/version is supported?
SNMPV1/V3.
7. How is time-of-day synchronization performed?
Via NTP.
