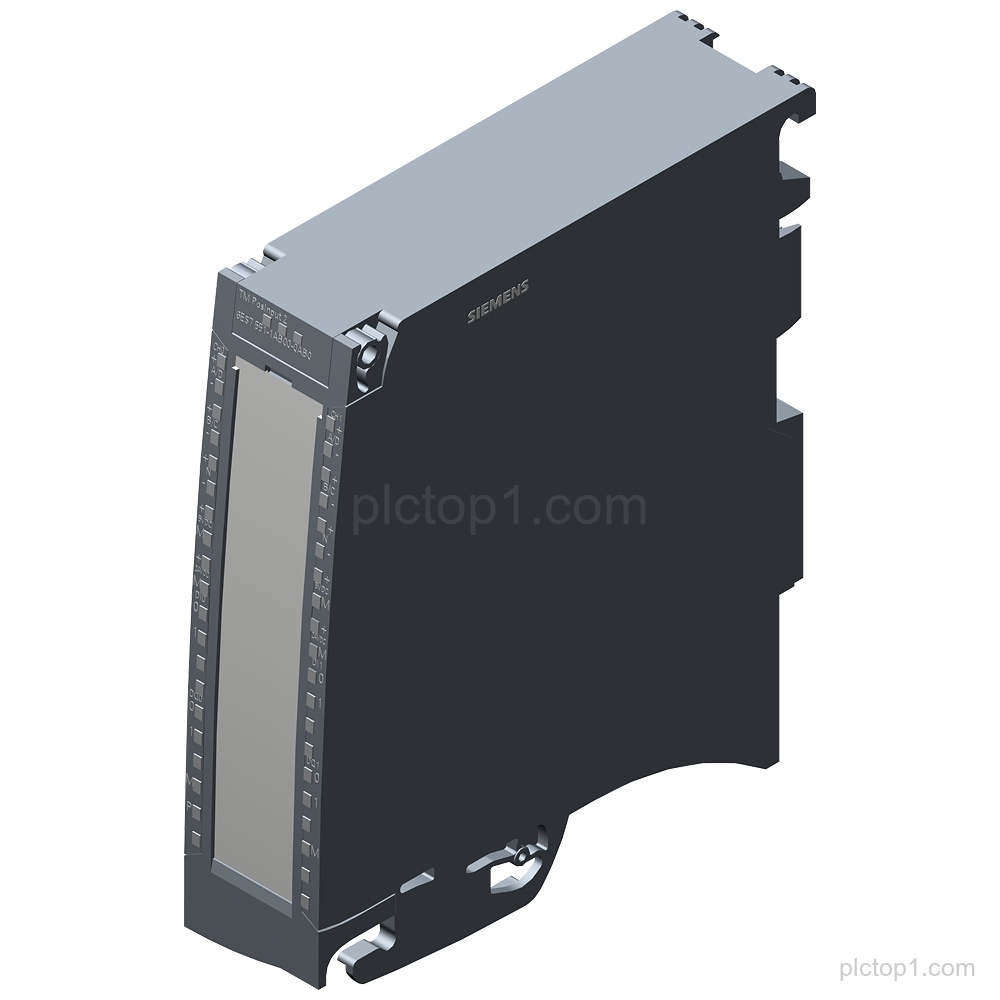

SIPLUS S7-1500 TM Posinput 2 with part number 6AG1551-1AB00-7AB0 is designed for counting and position feedback and supports 2 channels for RS-422 incremental encoders or SSI absolute encoders.
Detailed Parameters
Based on:6ES7551-1AB00-0AB0
Mounting/Coating:Conformal coating
Operating temperature:-25…+70 °C
Module function:Counting and position feedback module
Channels:2
Encoder interface:RS-422 incremental encoder or SSI absolute encoder
Digital inputs per channel:2 DI
Digital outputs per channel:2 DQ per channel
Engineering Context
Use SIPLUS S7-1500 TM Posinput 2 to acquire counting and position feedback with 2 channels.
The module is intended for RS-422 incremental encoder or SSI absolute encoder connection in system configurations requiring this interface selection.
Each channel provides 2 DI and 2 DQ for the module’s digital signal handling alongside position feedback.
FAQ
1. What is the core function of 6AG1551-1AB00-7AB0?
It is a counting and position feedback module.
2. How many channels does SIPLUS S7-1500 TM Posinput 2 support?
It supports 2 channels.
3. Which encoder types are supported?
RS-422 incremental encoder or SSI absolute encoder.
4. How many DI and DQ signals are available per channel?
2 DI and 2 DQ per channel.
5. What is the specified operating temperature range?
-25…+70 °C.
6. What base reference does this product use?
It is based on 6ES7551-1AB00-0AB0 with conformal coating.
