Product information

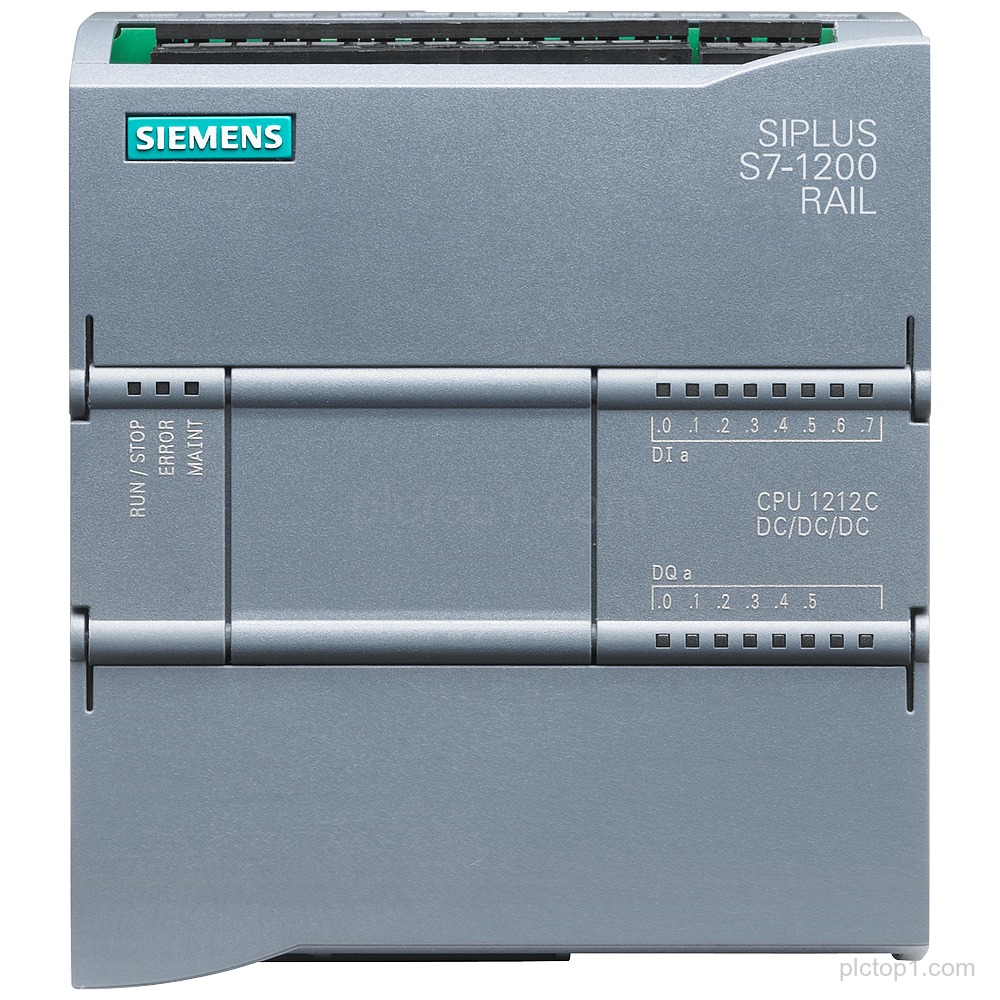

SIPLUS S7-1200 CPU 1212C DC/DC/DC T1 rail, part number 6AG2212-1AE40-1XB0, is based on 6ES7212-1AE40-0XB0 and includes conformal coating. It is specified as a compact CPU with DC/DC/DC design and onboard I/O. The product information states an operating range of -25…+60 °C, OT1 with ST1/2 (+70 °C for 10 minutes), and a program/data memory of 50 KB.
Detailed Parameters
Product family:SIPLUS S7-1200 CPU 1212C
Designation:DC/DC/DC T1 rail
Based on:6ES7212-1AE40-0XB0
Coating:Conformal coating
Operating temperature:-25…+60 °C
OT1 with ST1/2:+70 °C for 10 minutes
CPU type:Compact CPU
Onboard I/O:8 DI 24 V DC, 6 DQ 24 V DC, 2 AI 0-10 V DC
Power supply:20.4-28.8 V DC
Program/data memory:50 KB
Engineering Context
The product is a SIPLUS S7-1200 CPU 1212C configured with DC/DC/DC onboard I/O.
The specified onboard I/O includes 8 DI, 6 DQ, and 2 AI channels.
The part number is provided with a conformal coating specification and an operating temperature range.
FAQ
1. What is the product family?
SIPLUS S7-1200 CPU 1212C.
2. What is the part number?
6AG2212-1AE40-1XB0.
3. What onboard I/O is specified?
8 DI 24 V DC, 6 DQ 24 V DC, and 2 AI 0-10 V DC.
4. What is the power supply range?
20.4-28.8 V DC.
5. What is the program/data memory?
50 KB.
