Product information

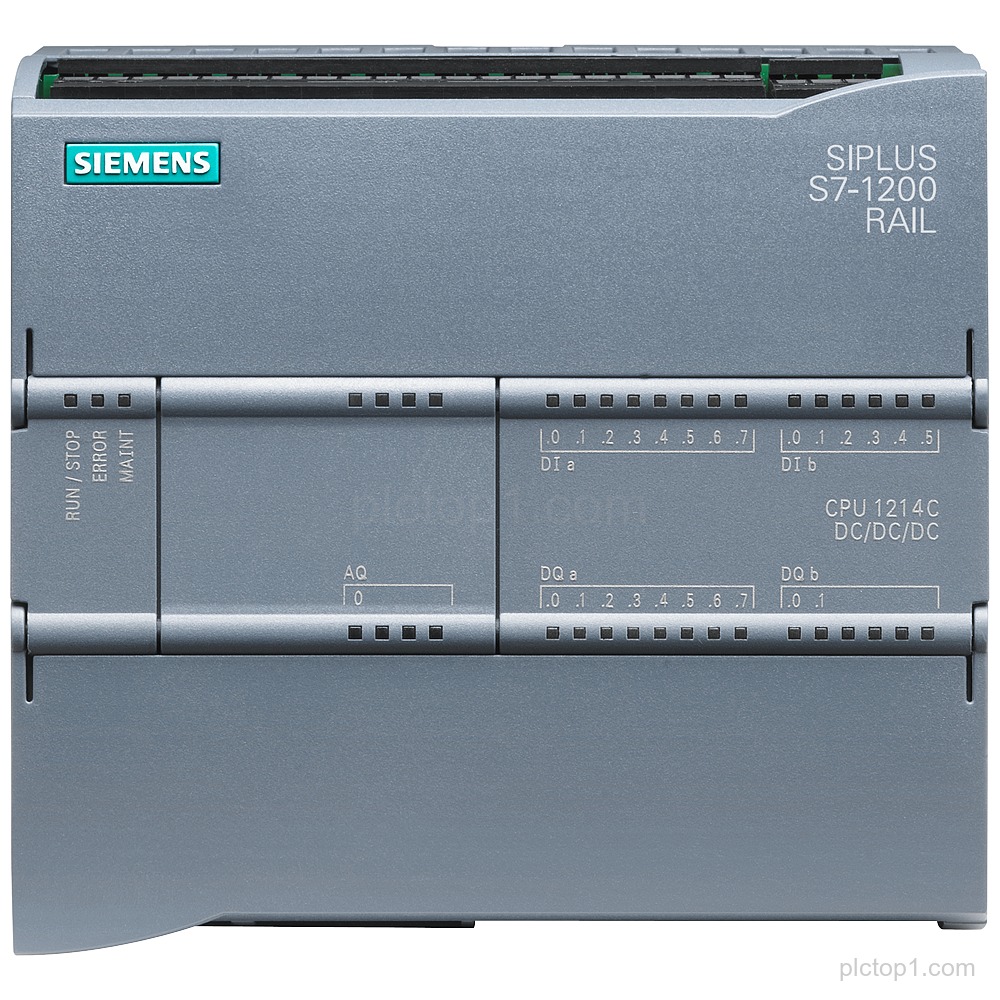

SIPLUS S7-1200 CPU 1214C DC/DC/DC rail based, part number 6AG2214-1AG40-1XB0, for compact CPU applications with conformal coating and onboard I/O.
Detailed Parameters
Rail-based reference:based on 6ES7214-1AG40-0XB0
Conformal coating:with conformal coating
Ambient temperature range:-25…+60 °C
OT1 / ST1/2 rating:OT1 with ST1/2 (+70 °C for 10 minutes)
CPU type:compact CPU
Power supply:20.4-28.8 V DC
Power configuration:DC/DC/DC
Onboard DI:14 DI 24 V DC
Onboard DQ:10 DQ 24 V DC
Onboard AI:2 AI 0-10 V DC
Program/data memory:75 KB
Engineering Context
The SIPLUS S7-1200 CPU 1214C DC/DC/DC is rail based and compact CPU designed for onboard DI, DQ, and AI integration.
The conformal coating and the specified ambient temperature range (-25…+60 °C) define operating conditions for the CPU.
The CPU is powered with 20.4-28.8 V DC and provides program/data memory of 75 KB.
FAQ
1. What is the product family and function designation for part number 6AG2214-1AG40-1XB0?
SIPLUS S7-1200 CPU 1214C DC/DC/DC.
2. Which reference CPU is the rail-based design based on?
It is based on 6ES7214-1AG40-0XB0.
3. What onboard I/O is available on the CPU 1214C?
Onboard I/O: 14 DI 24 V DC; 10 DQ 24 V DC; 2 AI 0-10 V DC.
4. What power supply range is specified for the CPU?
Power supply: 20.4-28.8 V DC.
5. What are the specified temperature conditions for the CPU?
Ambient temperature range: -25…+60 °C; OT1 with ST1/2 (+70 °C for 10 minutes).
6. What program/data memory is specified?
Program/data memory: 75 KB.
