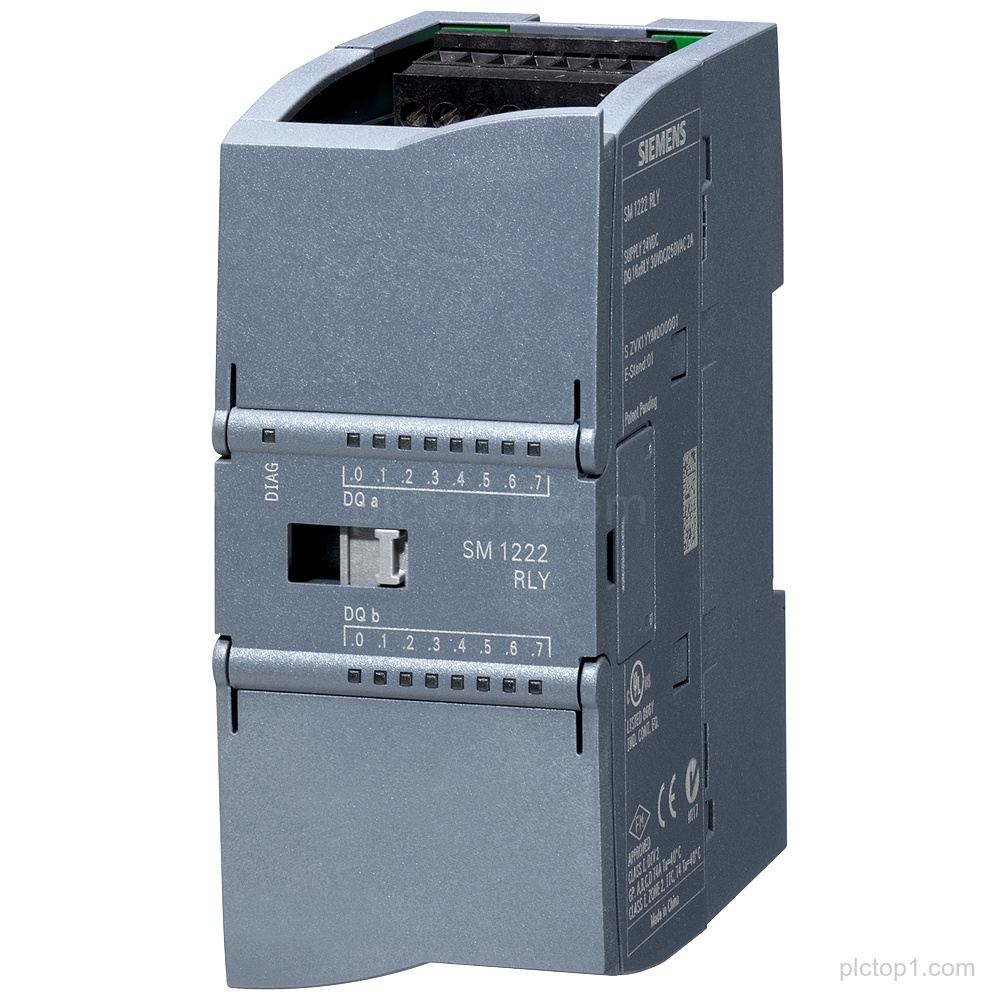

SIPLUS S7-1200 SM 1222 8DQ T1 rail based for part number 6AG2222-1BF32-1XB0, based on 6ES7222-1BF32-0XB0 with conformal coating for the specified operating range.
Detailed Parameters
Conformal coating:with conformal coating
Operating temperature:-25…+70 °C
OT1 with ST1/2:OT1 with ST1/2 (+70 °C for 10 minutes)
Output channels:8 DQ
Output type:digital output
Output voltage:24 V DC
Output technology:transistor
Output current:0.5 A
Based on:6ES7222-1BF32-0XB0
Rail-based design:rail based
Engineering Context
The product is a SIPLUS S7-1200 SM 1222 8DQ T1 rail based digital output module based on 6ES7222-1BF32-0XB0.
The module provides 8 DQ digital outputs using transistor outputs at 24 V DC.
The module supports operation over -25…+70 °C and OT1 with ST1/2 (+70 °C for 10 minutes).
FAQ
1. What product family and module designation does 6AG2222-1BF32-1XB0 belong to?
It belongs to SIPLUS S7-1200 SM 1222 8DQ T1.
2. How many digital output channels are provided?
8 DQ.
3. What is the output voltage and output technology?
24 V DC transistor outputs.
4. What operating temperature range is specified?
-25…+70 °C.
5. What is the specified OT1 with ST1/2 temperature condition?
OT1 with ST1/2 (+70 °C for 10 minutes).
6. What is the underlying base part mentioned for this module?
6ES7222-1BF32-0XB0.
