Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

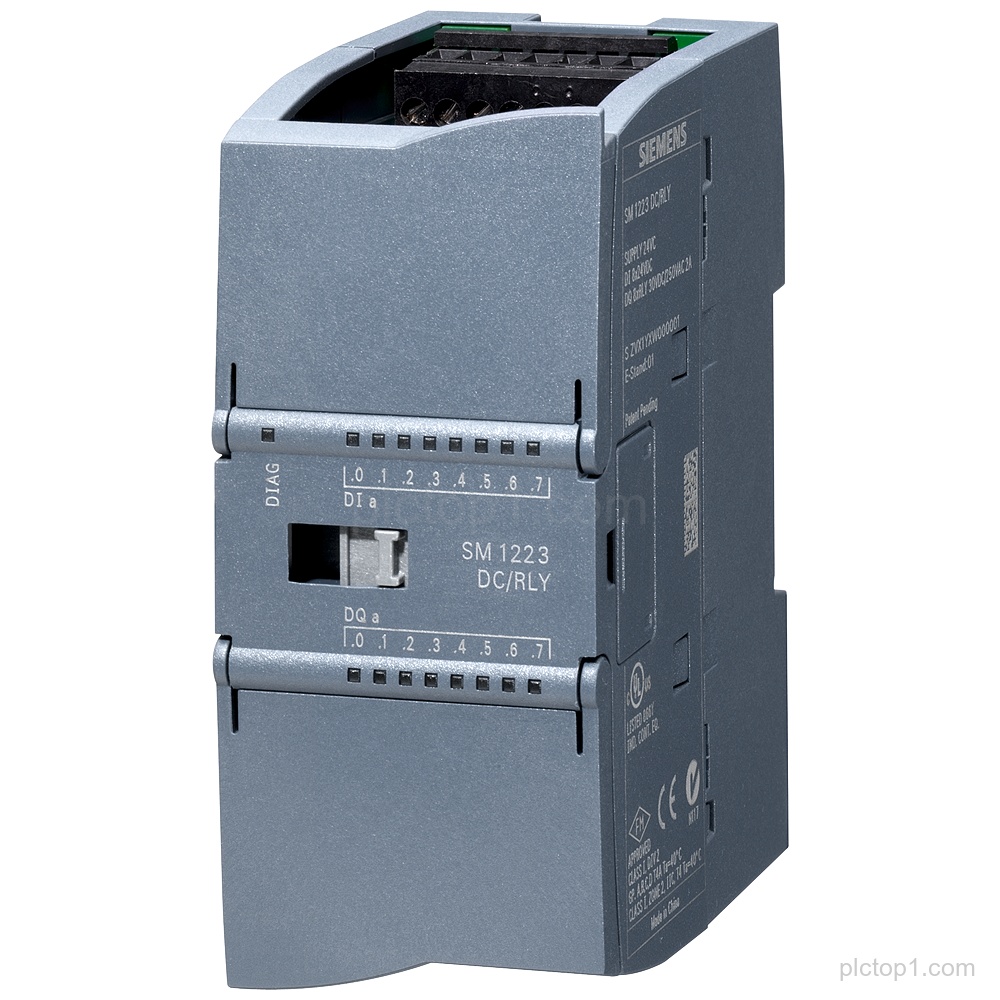

SIMATIC SIPLUS S7-1200 SM 1223 is available under part number 6AG2223-1BH32-1XB0 for digital input and digital output use in the SM 1223 module format.
Detailed Parameters
Product type:digital input/output SM 1223
Rail type:T1 rail based on 6ES7223-1BH32-0XB0
Coating:conformal coating
Ambient temperature:-25…+55 °C
OT1 with ST1/2:+70 °C for 10 minutes
Digital inputs (DI):8 DI
Digital input voltage:8 DI 24 V DC
Digital input type:sink/source
Digital outputs (DQ):8 DQ
Digital output type:transistor
Digital output current:0.5 A
Engineering Context
The module is a SIPLUS S7-1200 SM 1223 digital input/output designed for T1 rail operation based on 6ES7223-1BH32-0XB0.
The SM 1223 provides 8 digital inputs at 24 V DC and 8 digital outputs in transistor technology.
The specified temperature conditions include -25…+55 °C and OT1 with ST1/2 of +70 °C for 10 minutes.
FAQ
1. What does 6AG2223-1BH32-1XB0 provide?
It provides a SIMATIC SIPLUS S7-1200 SM 1223 digital input/output with 8 DI and 8 DQ.
2. How many digital inputs and what input voltage are supported?
It supports 8 DI with 24 V DC.
3. How many digital outputs and what output type/current are specified?
It supports 8 DQ with transistor outputs rated at 0.5 A.
4. Is the module based on 6ES7223-1BH32-0XB0?
Yes, it is described as a T1 rail based on 6ES7223-1BH32-0XB0.
5. What temperature range is specified for this module?
The specified ambient temperature is -25…+55 °C, with OT1 with ST1/2 (+70 °C for 10 minutes).
