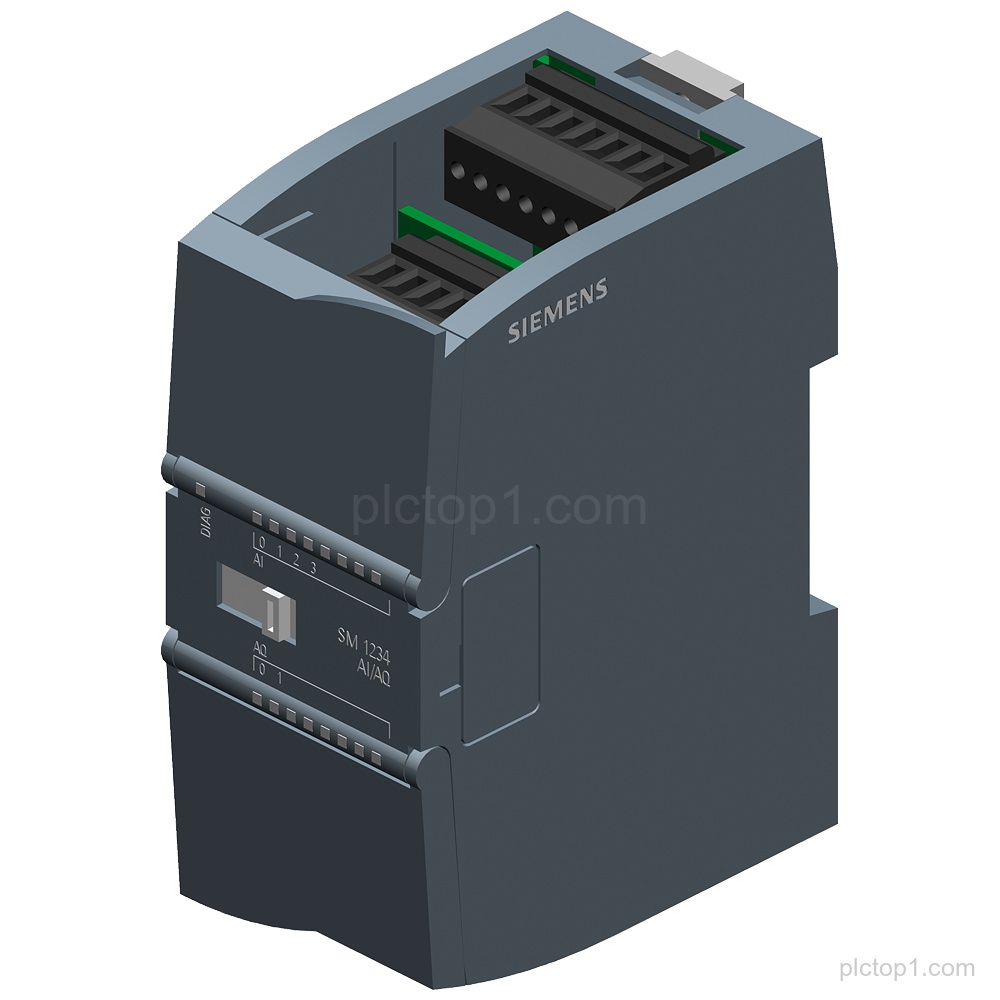

SIPLUS S7-1200 SM 1234 4AI/2AQ rail based module; part number 6AG2234-4HE32-1XB1. Based on 6ES7234-4HE32-0XB0 with conformal coating, designed for -25…+60 °C and OT1 with ST1/2 (+70 °C for 10 minutes).
Detailed Parameters
Conformal coating:Yes
Base type:6ES7234-4HE32-0XB0
Product family:SIPLUS S7-1200
Module designation:SM 1234
Channel configuration:4 AI/2 AQ
Analog input voltage range:+/-10 V
Analog input resolution (for +/-10 V):14-bit resolution
Analog input current range:0 (4)-20 mA
Analog input resolution (for 0 (4)-20 mA):13-bit resolution
Operating temperature:-25…+60 °C
OT1 with ST1/2:+70 °C for 10 minutes
Engineering Context
The module provides 4 AI and 2 AQ analog channels under the SM 1234 designation.
The module supports analog input operation with either +/-10 V (14-bit resolution) or 0 (4)-20 mA (13-bit resolution) depending on the signal type.
The rail-based design is referenced as being based on 6ES7234-4HE32-0XB0 with conformal coating for operation within the specified temperature limits.
FAQ
1. What module designation and channel configuration does 6AG2234-4HE32-1XB1 provide?
It is a SIPLUS S7-1200 SM 1234 rail based module with 4 AI/2 AQ analog channels.
2. What analog input signal ranges are supported and what resolutions apply?
For +/-10 V the resolution is 14-bit, and for 0 (4)-20 mA the resolution is 13-bit.
3. What temperature conditions are specified for 6AG2234-4HE32-1XB1?
It is specified for -25…+60 °C and OT1 with ST1/2 (+70 °C for 10 minutes).
4. What is the reference base product for this rail based module?
The product is described as rail based on 6ES7234-4HE32-0XB0.
