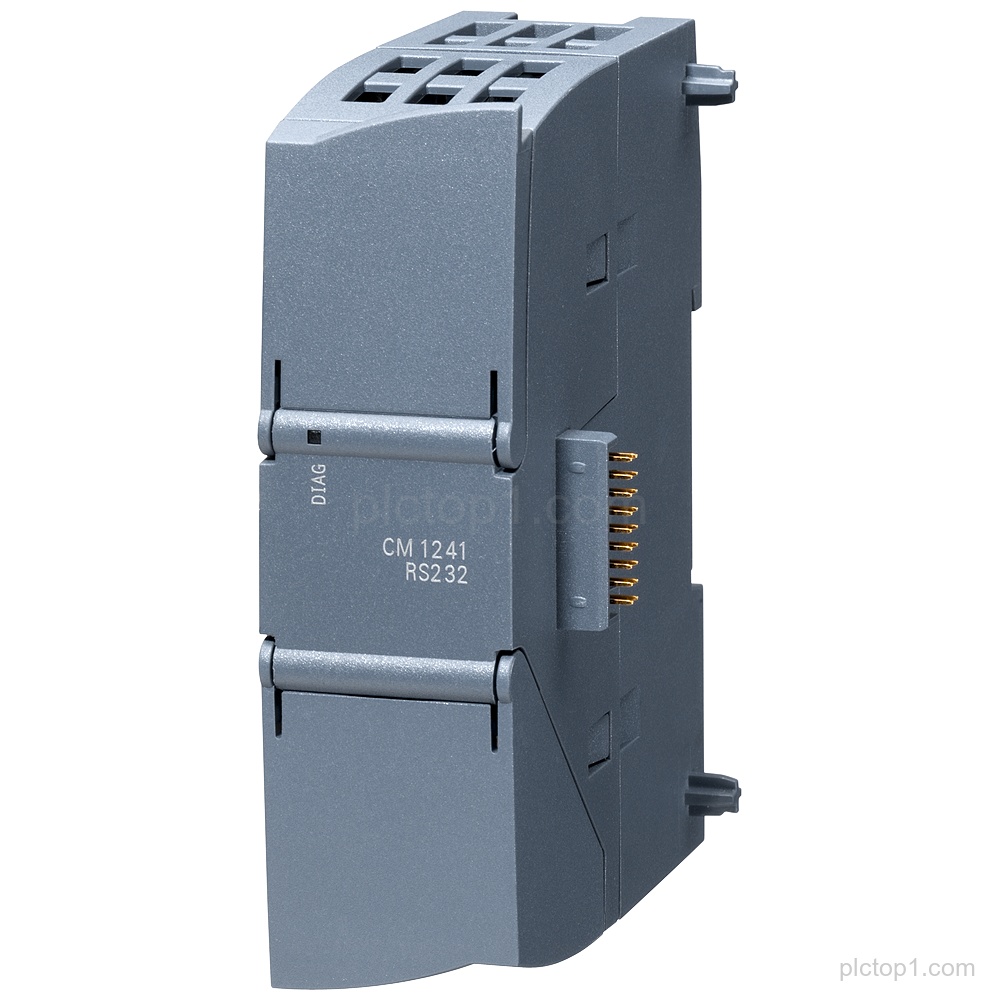

SIPLUS S7-1200 CM 1241 RS232 communications module (Part Number: 6AG2241-1AH32-1XB0) is a T1 rail based design with conformal coating and specified operating and temperature limits.
Detailed Parameters
Product family:SIPLUS S7-1200
Base designation:CM 1241 RS232
Rail type:T1 rail based on 6ES7241-1AH32-0XB0
Conformal coating:with conformal coating
Communications module:RS-232
Connector type:9-pole D-sub (pin)
Support:supports Freeport
Operating temperature:-25…+60 °C
OT1 with ST1/2 temperature limit:+70 °C for 10 minutes
Engineering Context
The SIPLUS S7-1200 CM 1241 RS232 provides RS-232 communications in a rail-based CM 1241 configuration.
A 9-pole D-sub (pin) connector is used for the RS-232 communications module interface.
The device is specified for -25…+60 °C operation and includes a higher short-term temperature allowance of +70 °C for 10 minutes under OT1 with ST1/2.
FAQ
1. What communications type does 6AG2241-1AH32-1XB0 support?
It is a communications module for RS-232.
2. Which connector does the CM 1241 RS232 communications module use?
It uses a 9-pole D-sub (pin).
3. Does 6AG2241-1AH32-1XB0 support Freeport?
Yes, it supports Freeport.
4. What temperature range is specified for the device?
The specified operating temperature is -25…+60 °C, with OT1 with ST1/2 allowing +70 °C for 10 minutes.
5. What is the rail-based base design referenced for 6AG2241-1AH32-1XB0?
It is T1 rail based on 6ES7241-1AH32-0XB0.
