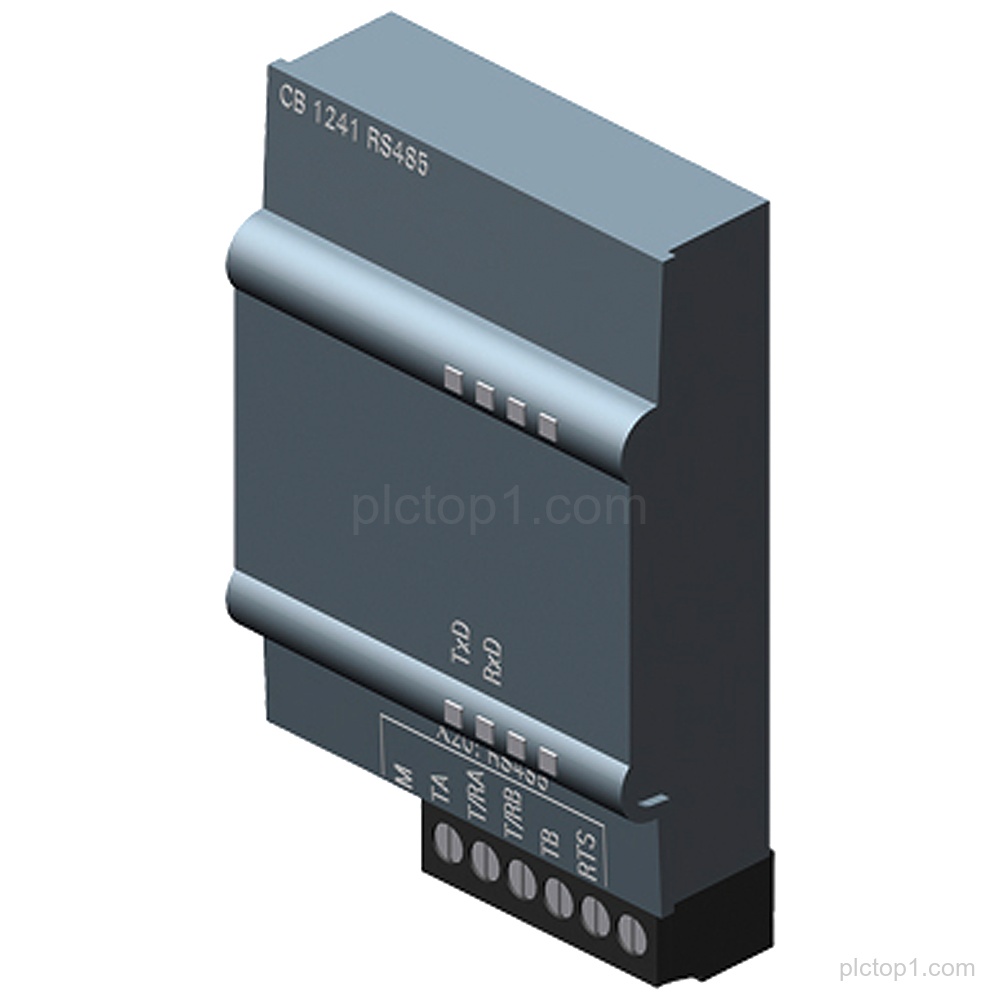

SIPLUS S7-1200 CB 1241 RS 485 rail based on 6AG2241-1CH30-1XB0 provides an RS-485 interface with a terminal block and supports Freeport.
Detailed Parameters
Part number base:6ES7241-1CH30-1XB0
Conformal coating:Yes
Operating temperature:-25…+55 °C
OT1 with ST1/2:OT1 with ST1/2 (+70 °C for 10 minutes)
Interface:RS-485
Connection type:Terminal block
Freeport support:Yes
Engineering Context
The SIPLUS S7-1200 CB 1241 RS 485 rail based variant is designed on 6ES7241-1CH30-1XB0 and includes conformal coating.
The module provides an RS-485 interface using a terminal block connection.
The module supports Freeport and is specified for -25…+55 °C operation with OT1 with ST1/2 (+70 °C for 10 minutes).
FAQ
1. What is the product family and official designation for part number 6AG2241-1CH30-1XB0?
SIPLUS S7-1200 CB 1241 RS 485.
2. Which base type is used for 6AG2241-1CH30-1XB0?
It is based on 6ES7241-1CH30-1XB0.
3. What interface and connection type are provided?
RS-485 with a terminal block.
4. Does 6AG2241-1CH30-1XB0 support Freeport?
Yes.
5. What temperature range is specified for 6AG2241-1CH30-1XB0?
Operating temperature is -25…+55 °C, with OT1 with ST1/2 (+70 °C for 10 minutes).
6. Does the module have conformal coating?
Yes.
