Product information

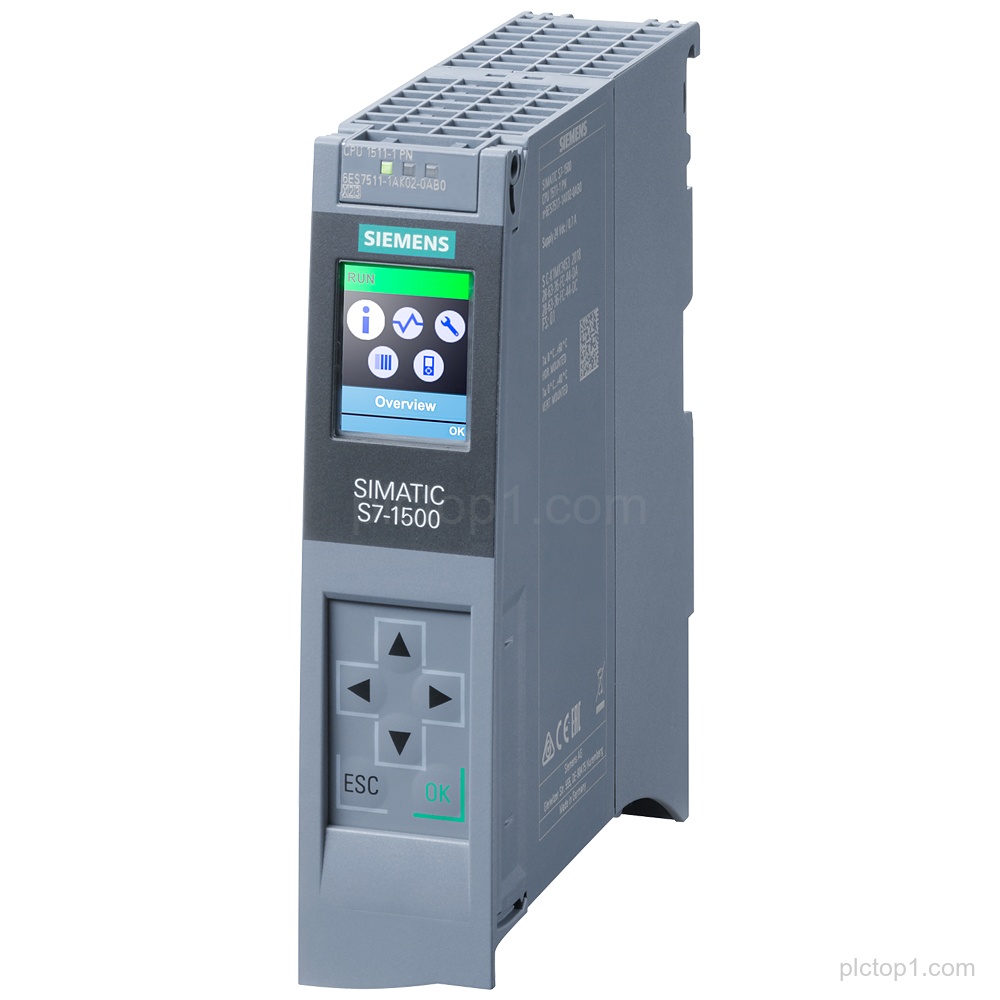

SIPLUS S7-1500 CPU 1511-1 PN T1 rail based (part number 6AG2511-1AK02-1AB0) for central processing with PROFINET IRT via 2-port switch and specified performance and memory resources.
Detailed Parameters
Part number:6AG2511-1AK02-1AB0
Base:based on 6ES7511-1AK02-0AB0
Coating:with conformal coating
Operating temperature:-40…+60 °C
OT2 with ST1/2:OT2 with ST1/2 (+70 °C for 10 minutes)
Central processing unit:for CPU 1511-1 PN T1
Work memory for program:150 KB
Work memory for data:1 MB
1st interface:PROFINET IRT with 2-port switch
Bit performance:60 ns
Memory card requirement:SIMATIC Memory Card required
Engineering Context
The device is a SIPLUS S7-1500 CPU 1511-1 PN T1 rail-based central processing unit with conformal coating.
PROFINET IRT is provided via a 2-port switch as the 1st interface.
Programming and data resources are specified as 150 KB (program) and 1 MB (data), with a stated 60 ns bit performance.
FAQ
1. What is the part number and product designation of this CPU?
The part number is 6AG2511-1AK02-1AB0 and the product designation is SIPLUS S7-1500 CPU 1511-1 PN T1.
2. What is the interface type and how many ports does it include?
The 1st interface is PROFINET IRT with 2-port switch.
3. What are the specified work memory sizes for program and data?
Work memory is 150 KB for program and 1 MB for data.
4. What temperature range is specified for operation and what is the short-term limit?
Operating temperature is -40…+60 °C, with OT2 with ST1/2 (+70 °C for 10 minutes).
5. Is a memory card required?
Yes, SIMATIC Memory Card required.
6. What is the stated bit performance?
The bit performance is 60 ns.
