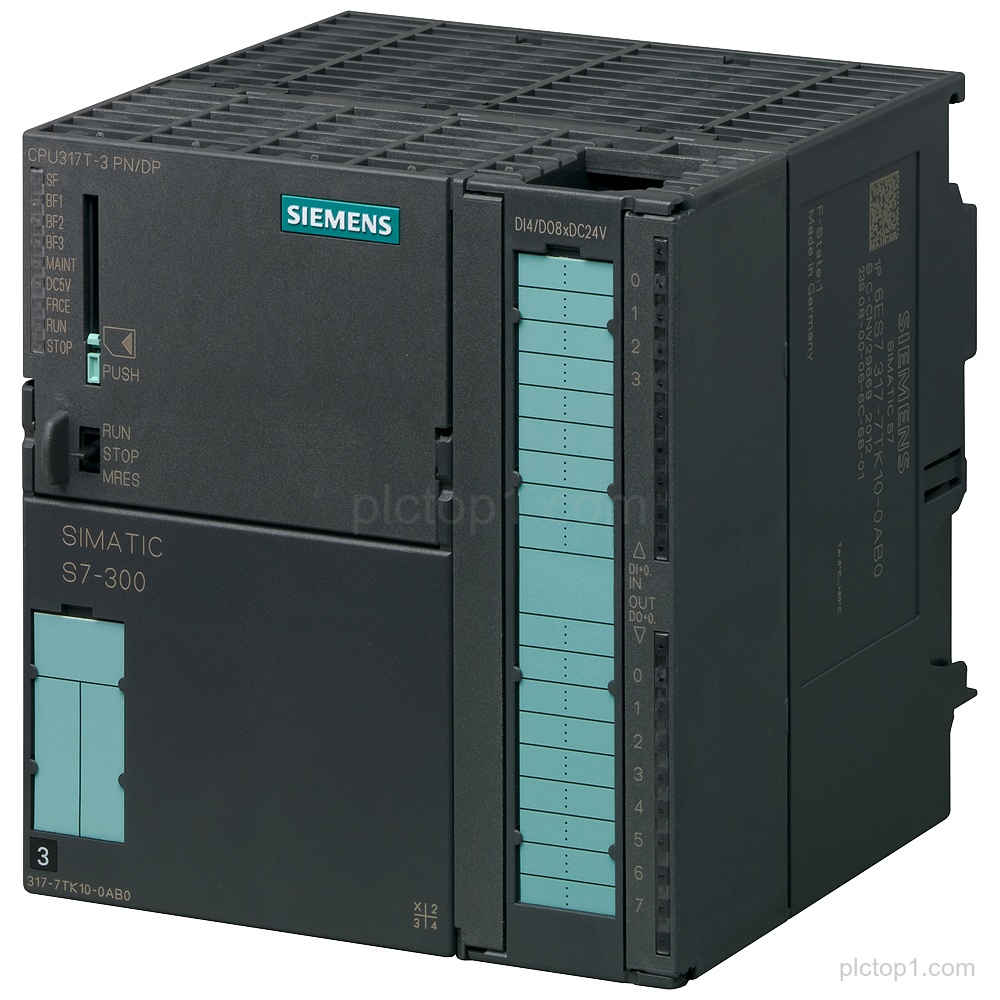

SIMATIC S7-300 CPU 317T-3 PN/DP (Part number: 6ES7317-7TK10-0AB0) for PLC and technology tasks with 1024 KB work memory and multiple interfaces including PROFINET with a 2-port switch.
Detailed Parameters
Spare part:SIMATIC S7-300
Product:CPU 317T-3 PN/DP
Function:Central processing unit for PLC and technology tasks
Work memory:1024 KB
1st interface:MPI/DP, 12 Mbps
2nd interface:DP (drive)
3rd interface:Ethernet PROFINET with 2-port switch
Integrated I/O:for technology
Front connector:1x 40-pole
Micro Memory Card requirement:min. 8 MB required
Engineering Context
Use CPU 317T-3 PN/DP as the central processing unit for PLC and technology tasks in a SIMATIC S7-300 system.
Connect the first interface as MPI/DP operating at 12 Mbps and use the second interface as DP (drive) depending on system configuration.
Use the Ethernet PROFINET interface with a 2-port switch for system connections and integrated I/O for technology through the CPU.
FAQ
1. What is the product family and designation for part number 6ES7317-7TK10-0AB0?
SIMATIC S7-300 CPU 317T-3 PN/DP.
2. What is the main function of the CPU 317T-3 PN/DP?
It is a central processing unit for PLC and technology tasks.
3. How much work memory does this CPU provide?
1024 KB work memory.
4. Which interfaces are available on this CPU?
1st interface: MPI/DP (12 Mbps), 2nd interface: DP (drive), 3rd interface: Ethernet PROFINET with 2-port switch.
5. Does the CPU include integrated I/O for technology?
Yes, it has integrated I/O for technology.
6. What front connector type is used?
Front connector (1x 40-pole).
7. What Micro Memory Card requirement is stated?
Micro Memory Card min. 8 MB required.
