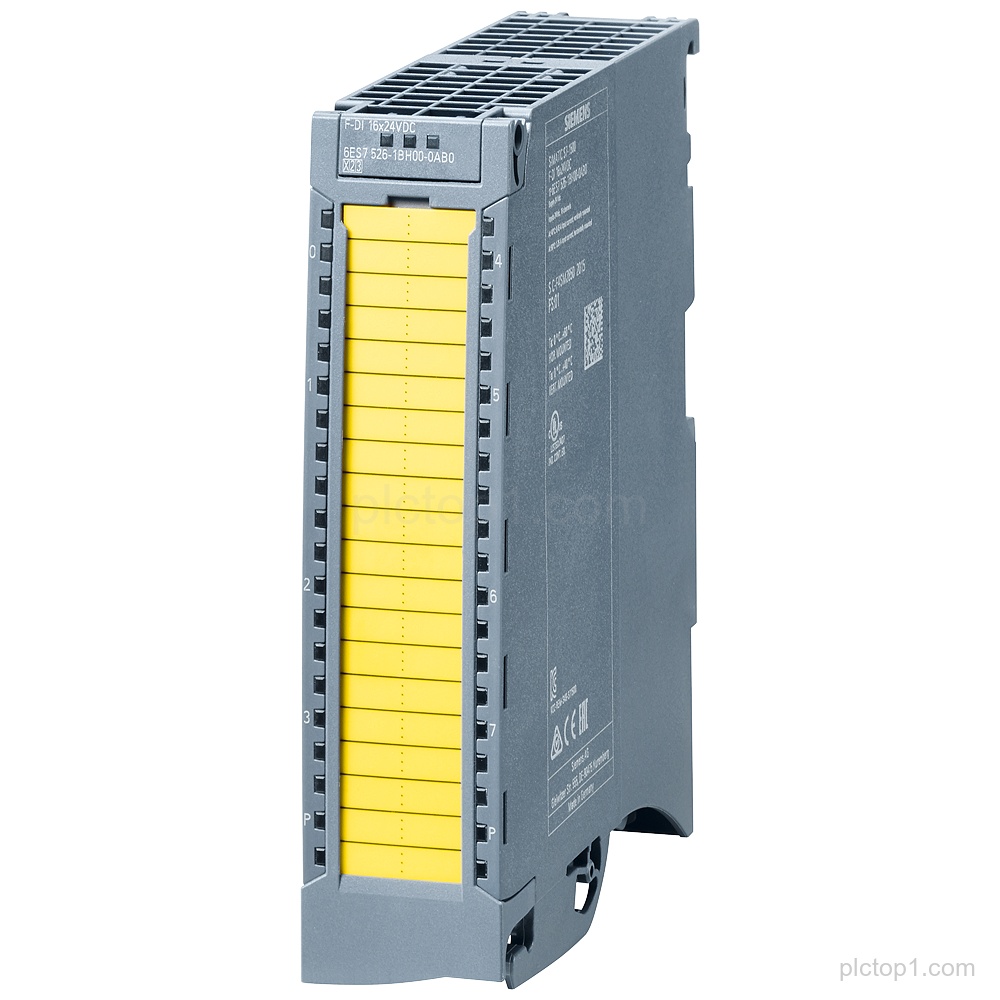

SIMATIC S7-1500 F digital input module (part number 6ES7526-1BH00-0AB0) with F-DI 16x 24 V DC PROFIsafe for 35 mm width applications.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:F digital input module
Designation:F-DI 16x 24 V DC PROFIsafe
Input count:16
Input voltage:24 V DC
PROFIsafe:PROFIsafe
Width:35 mm
Safety level (ISO 13849-1):up to PL E
Safety integrity level (IEC 61508):up to SIL 3
Engineering Context
The module is a SIMATIC S7-1500 F digital input module with designation F-DI 16x 24 V DC PROFIsafe.
It provides 16 digital inputs for 24 V DC signal inputs and includes PROFIsafe functionality.
The module supports safety requirements up to PL E (ISO 13849-1) / SIL 3 (IEC 61508).
FAQ
1. What is the module designation for part number 6ES7526-1BH00-0AB0?
F-DI 16x 24 V DC PROFIsafe.
2. How many digital input channels does the module provide?
16.
3. What input signal voltage does the module support?
24 V DC.
4. What is the PROFIsafe-related designation of the module?
PROFIsafe.
5. What mounting width is specified for the module?
35 mm width.
6. What safety capability is specified for the module?
Up to PL E (ISO 13849-1) / SIL 3 (IEC 61508).
