Product information

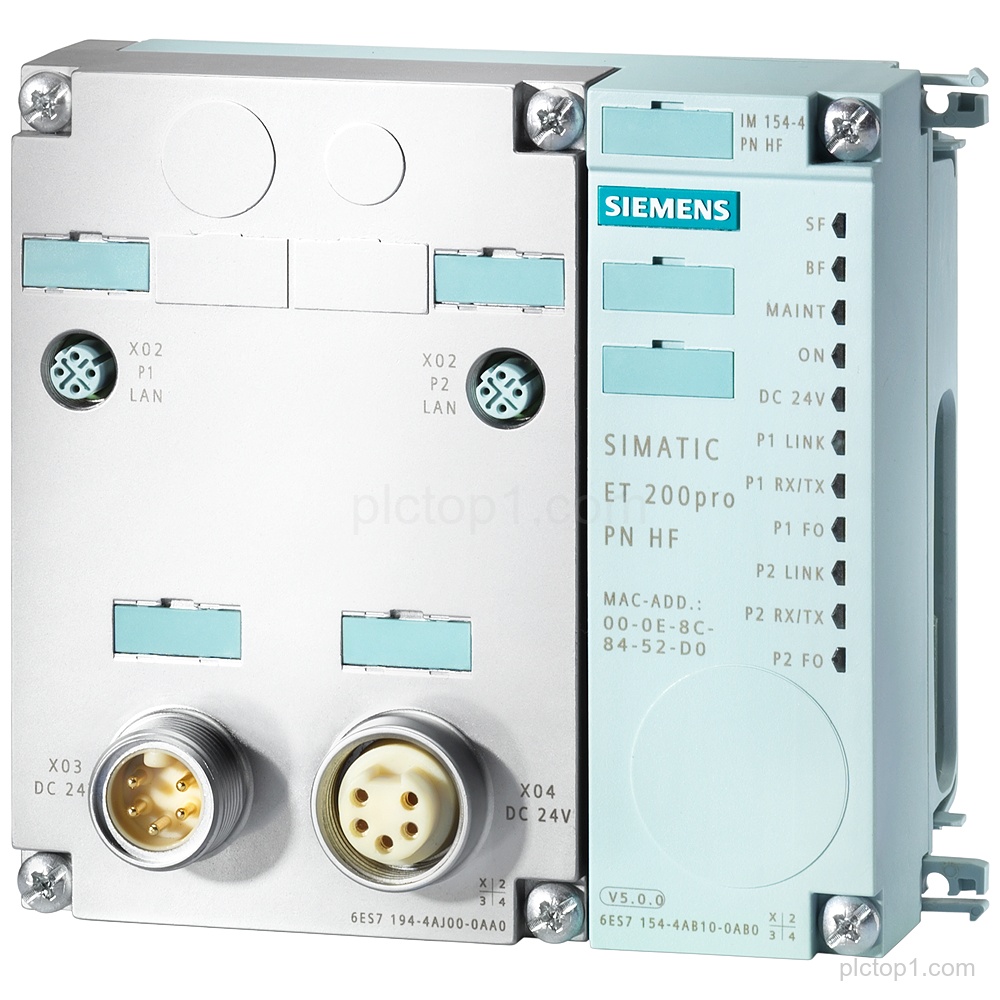

SIMATIC DP PROFINET Interface module IM 154-4 PN (High Feature) for ET 200 PRO, Part number 6ES7154-4AB10-0AB0, with integrated switch and included termination module.
Detailed Parameters
Product family:SIMATIC DP
Module designation:PROFINET Interface module IM 154-4 PN
Feature level:High Feature
For:ET 200 PRO
Integrated switch:Yes
Included modules:incl. termination module
Connection module in PROFINET ordering:connection module in PN 6ES7194-4A.00-0AA0 order separately
Engineering Context
The PROFINET Interface module IM 154-4 PN is designed for ET 200 PRO within the SIMATIC DP system context.
An integrated switch is provided for the module.
The termination module is included, while the required PROFINET connection module must be ordered separately as 6ES7194-4A.00-0AA0.
FAQ
1. What is the module designation for part number 6ES7154-4AB10-0AB0?
It is a PROFINET Interface module IM 154-4 PN (High Feature) for ET 200 PRO.
2. Is an integrated switch included in 6ES7154-4AB10-0AB0?
Yes, the module includes an integrated switch.
3. Does 6ES7154-4AB10-0AB0 include the termination module?
Yes, it is supplied with incl. termination module.
4. Does the product include the PROFINET connection module?
No, the connection module in PN 6ES7194-4A.00-0AA0 must be ordered separately.
