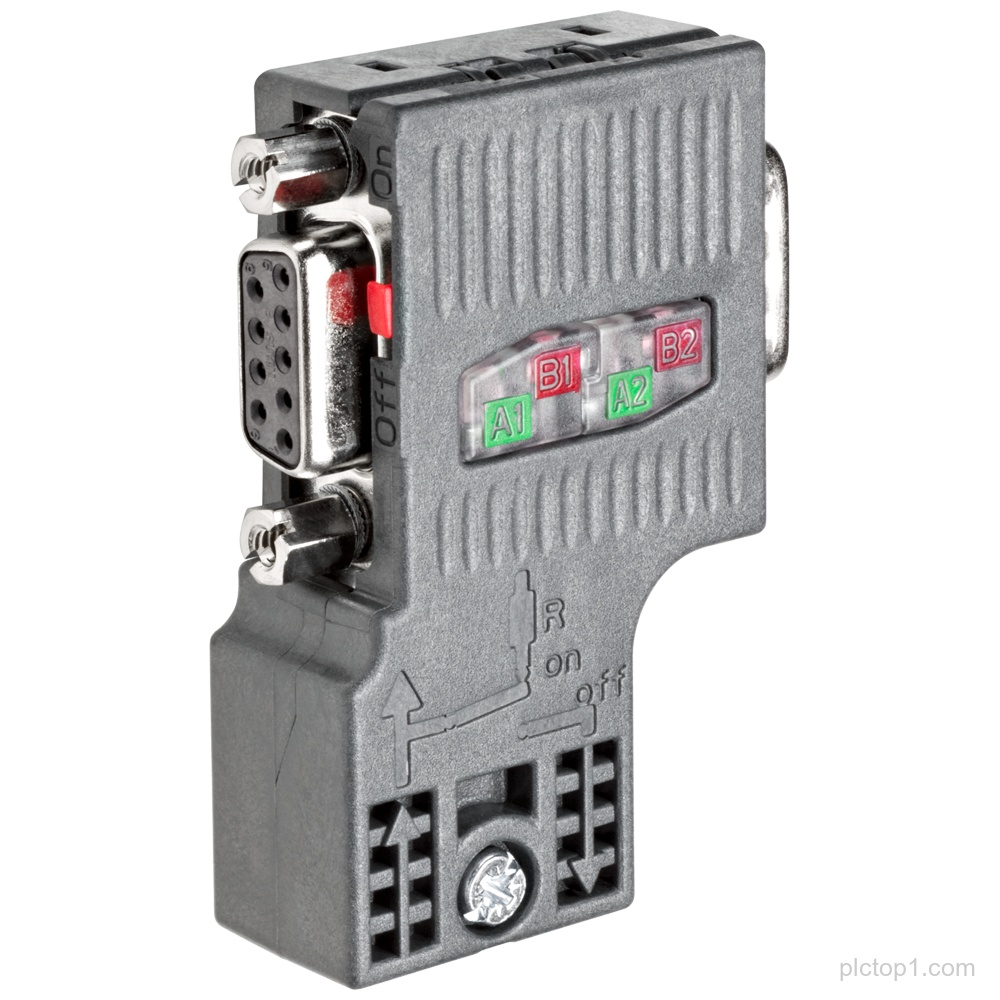

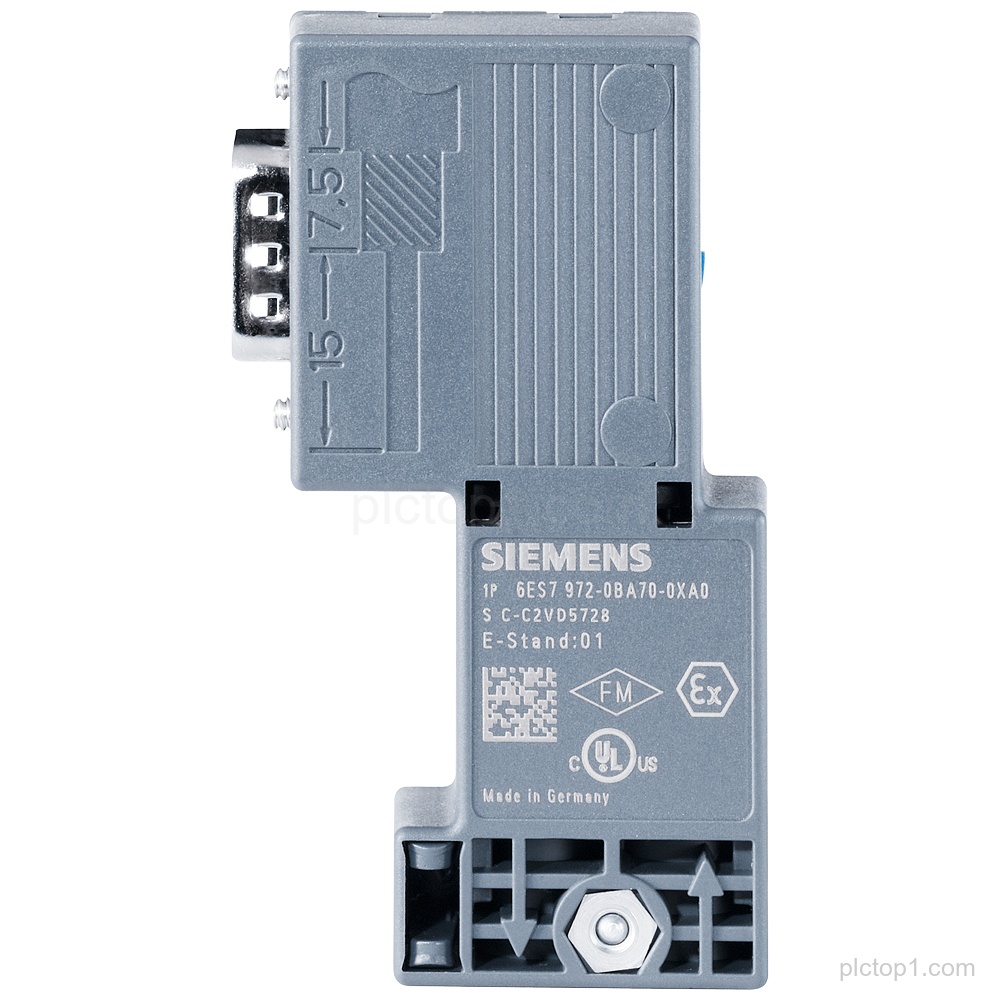

SIMATIC DP connection plug for PROFIBUS up to 12 Mbit/s, part number 6ES7972-0BA70-0XA0, with 90° cable outlet and insulation displacement method FastConnect.
Detailed Parameters
Product family:SIMATIC DP
Connector type:Connection plug
PROFIBUS data rate:up to 12 Mbit/s
Cable outlet:90° cable outlet
Dimensions (W x H x D):15.8 x 72.2 x 36.4 mm
Insulation displacement method:FastConnect
PG socket:without PG socket
Engineering Context
Use the SIMATIC DP connection plug for PROFIBUS signals up to 12 Mbit/s.
The 90° cable outlet is intended for systems requiring a 90° cable routing orientation.
FastConnect insulation displacement method supports the specified termination approach for the connection plug without a PG socket.
FAQ
1. What is the PROFIBUS data rate supported by 6ES7972-0BA70-0XA0?
It is specified for PROFIBUS up to 12 Mbit/s.
2. Does 6ES7972-0BA70-0XA0 have a PG socket?
No, it is specified as without PG socket.
3. What cable outlet orientation does this connection plug provide?
It provides a 90° cable outlet.
4. Which insulation displacement method is specified for this connection plug?
FastConnect.
5. What are the dimensions (W x H x D) of the connection plug?
15.8 x 72.2 x 36.4 mm (W x H x D).
