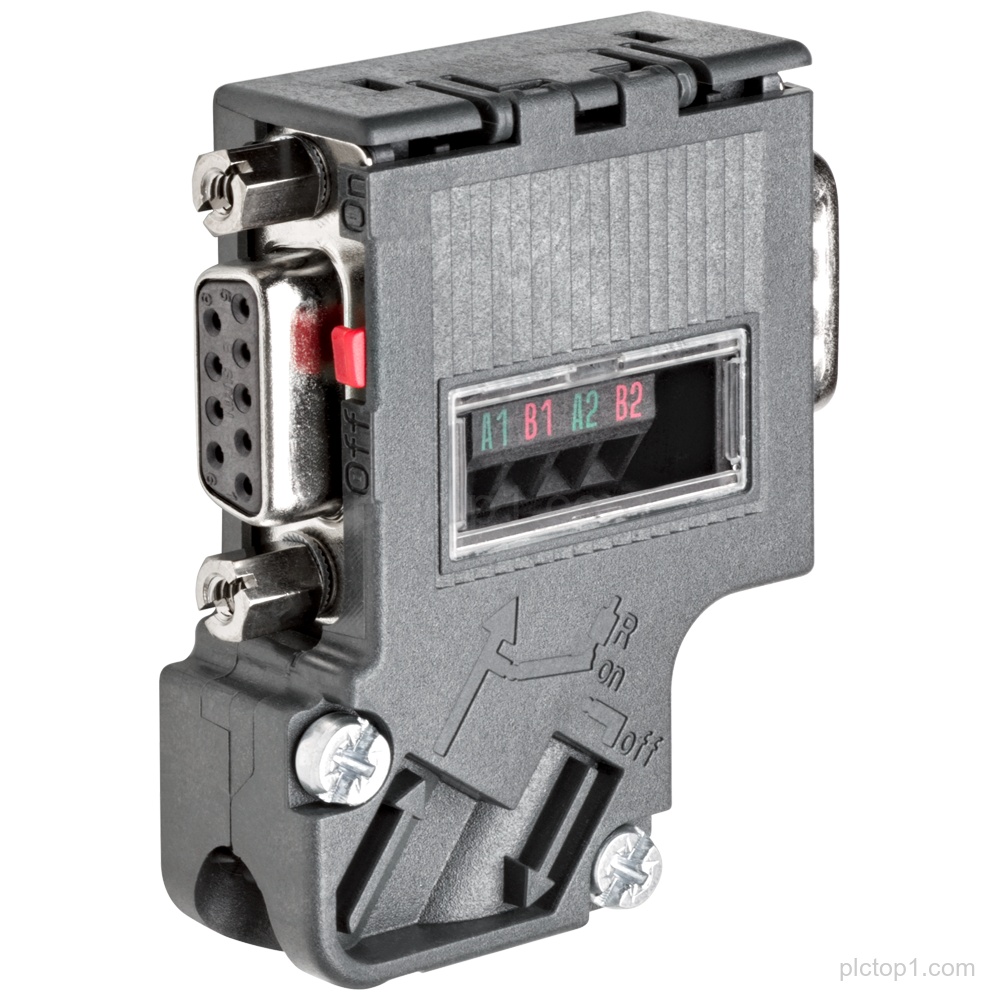

SIMATIC DP connection plug (Part number: 6ES7972-0BB42-0XA0) for PROFIBUS up to 12 Mbit/s with inclined cable outlet and terminating resistor with isolating function, including PG receptacle.
Detailed Parameters
Product line:SIMATIC DP
Connection type:Connection plug for PROFIBUS
PROFIBUS data rate:up to 12 Mbit/s
Cable outlet:inclined cable outlet
Terminating resistor:terminating resistor with isolating function
PG receptacle:With PG receptacle
Dimensions (WxHxD):15.8x 54x 39.5 mm
Engineering Context
Use this SIMATIC DP connection plug for PROFIBUS installations with a data rate up to 12 Mbit/s.
The inclined cable outlet supports the specified cable routing in the intended installation geometry.
The integrated terminating resistor with isolating function is provided in the plug design.
FAQ
1. What is the product family for part 6ES7972-0BB42-0XA0?
SIMATIC DP.
2. What PROFIBUS data rate is supported with this connection plug?
Up to 12 Mbit/s.
3. Does 6ES7972-0BB42-0XA0 include a terminating resistor?
Yes, it includes a terminating resistor with isolating function.
4. Is there an inclined cable outlet on this connection plug?
Yes, it has an inclined cable outlet.
5. Is a PG receptacle included?
Yes, it is with PG receptacle.
6. What are the dimensions of the connection plug?
15.8x 54x 39.5 mm (WxHxD).
