Product information

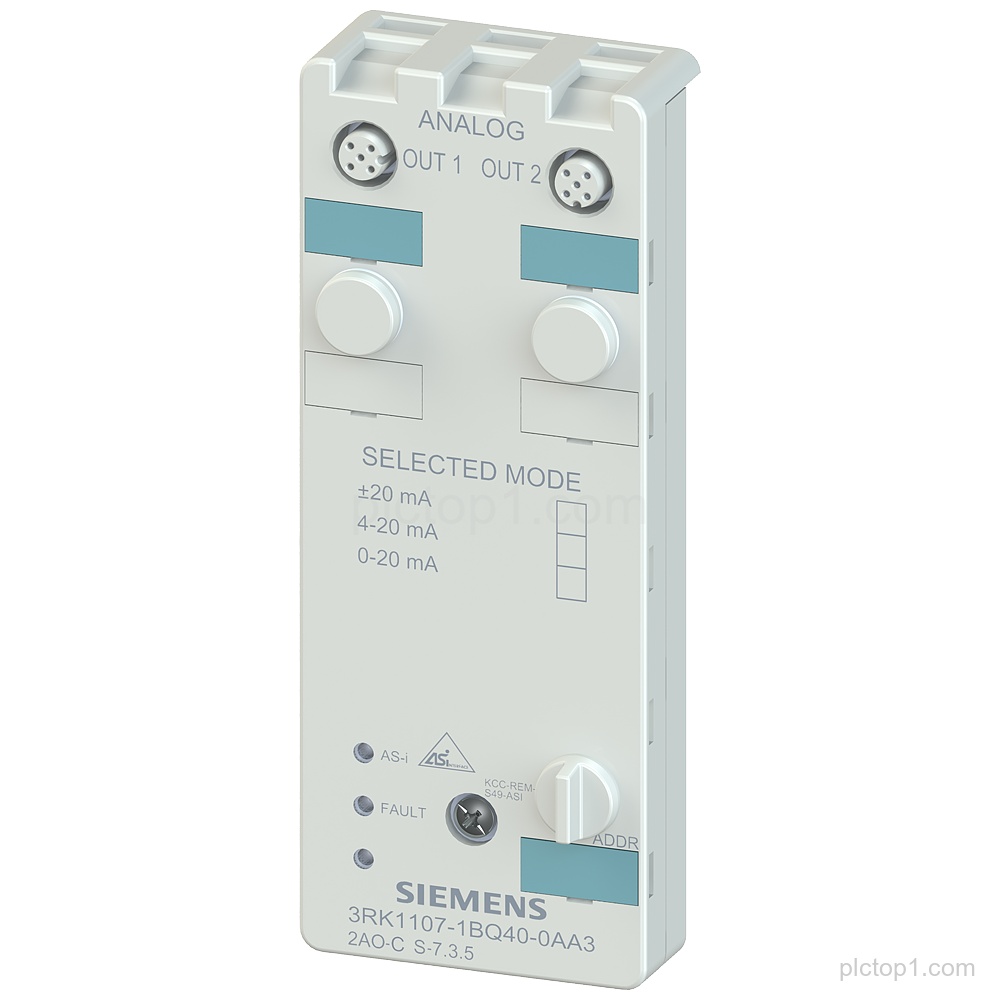

SIPLUS AS Interface 2 AQ IP67 analog compact module (Part Number: 6AG1107-1BQ40-7AA3) with conformal coating, AS-Interface compact module design, and IP67 analog characteristics.
Detailed Parameters
Based on:3RK1107-1BQ40-0AA3
Conformal coating:Yes
Mounting plate:3RK1901-0CA00 must be ordered separately
Product type:AS-Interface compact module
Ingress protection:IP67 analog
Temperature range:-25…+70 °C
AS-Interface identifier:2 AQ
Number format:S7
Outputs:2x 1
Output type / current range:4…20 mA for 2-wire actuators
Output connector:M12
Engineering Context
Use the SIPLUS AS Interface 2 AQ IP67 analog compact module to provide IP67 analog functionality for AS-Interface compact module setups.
The module supports 2 AQ and uses S7 number format for the analog values.
For 2-wire actuators, the outputs are specified as 4…20 mA with M12 outputs.
FAQ
1. What is the product family and designation for 6AG1107-1BQ40-7AA3?
6AG1107-1BQ40-7AA3 is a SIPLUS AS Interface 2 AQ IP67 AS-Interface compact module with IP67 analog.
2. What is the temperature range of the module?
The module is specified for -25…+70 °C.
3. How many AQ channels does the module provide?
The module provides 2 AQ.
4. What output type and current range are specified?
It provides 4…20 mA for 2-wire actuators.
5. What output arrangement is specified?
It has 2x 1 output with M12 connectors.
6. Is the mounting plate included?
No. Mounting plate 3RK1901-0CA00 must be ordered separately.
