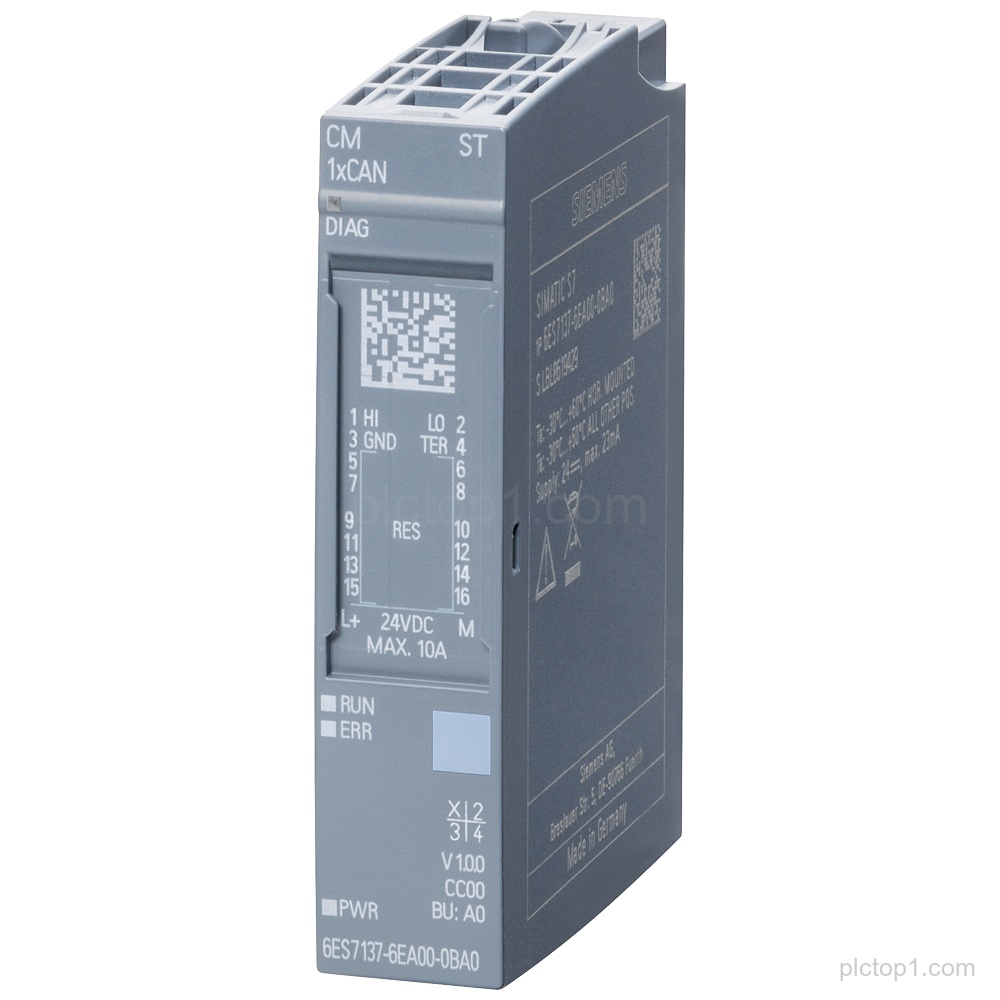

SIPLUS ET 200SP CM CAN based on 6ES7137-6EA00-0BA0 (Part number: 6AG1137-6EA00-2BA0) is a gateway module for CAN Bus or CANopen networks, with conformal coating and operation in the range -40…+60 °C.
Detailed Parameters
Conformal coating:Yes
Operating temperature:-40…+60 °C
Function:Gateway to CAN Bus or CANopen networks
CAN standard:CAN 2.0A/B
CANopen Manager:CiA301/302
CANopen Slave:CiA301/302
Protection class:IP20
Base product designation:6ES7137-6EA00-0BA0
Engineering Context
The SIPLUS ET 200SP CM CAN based on 6ES7137-6EA00-0BA0 is designed as a gateway to CAN Bus or CANopen networks.
The module supports CAN 2.0A/B and provides CANopen Manager functionality to CiA301/302.
The module provides CANopen Slave functionality to CiA301/302 and is intended for IP20 installations.
FAQ
1. What is the main function of 6AG1137-6EA00-2BA0?
It provides a gateway to CAN Bus or CANopen networks.
2. Which CAN standard is supported?
CAN 2.0A/B.
3. Does it support CANopen Manager or CANopen Slave roles?
Yes—CANopen Manager to CiA301/302 and CANopen Slave to CiA301/302.
4. What operating temperature range is specified?
-40…+60 °C.
5. What is the protection class?
IP20.
6. Is conformal coating included?
Yes, it is based on 6ES7137-6EA00-0BA0 with conformal coating.
