Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

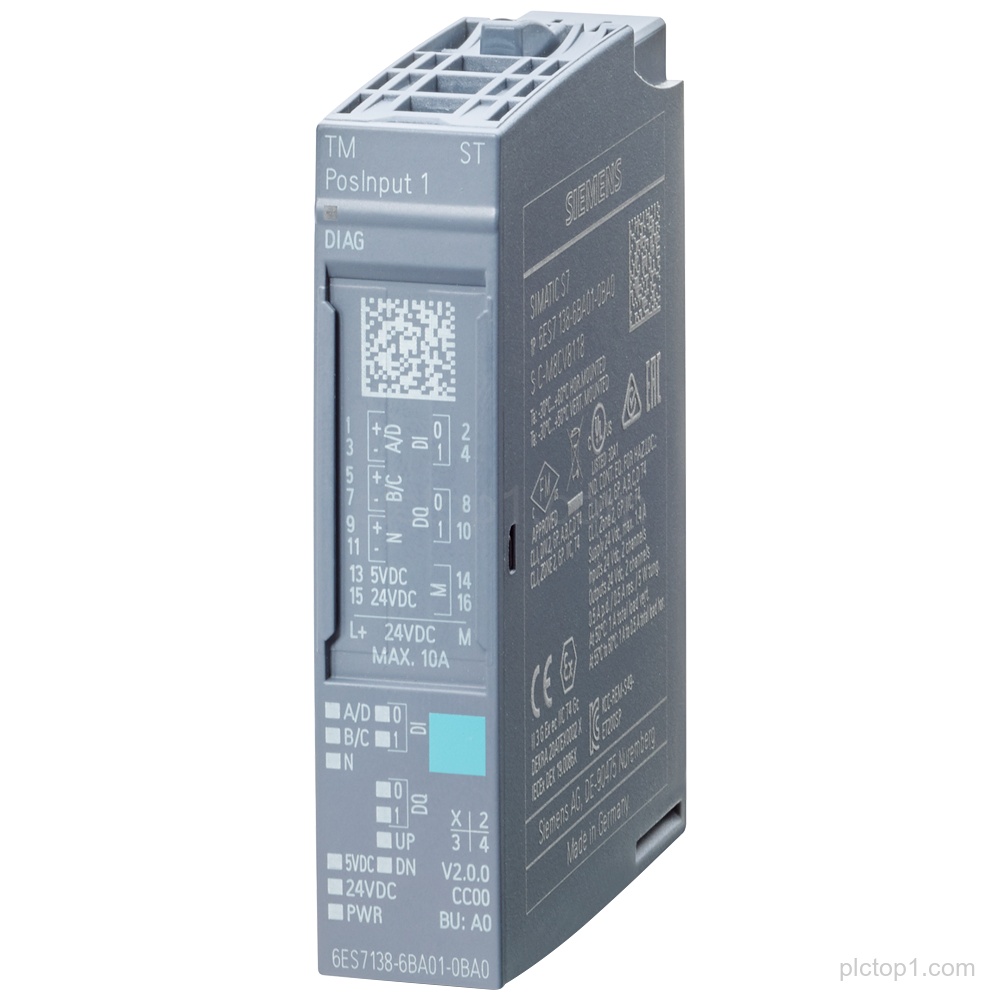

SIPLUS ET 200SP TM Posinput 1 with part number 6AG1138-6BA01-2BA0 provides counting and position detection for RS-422 incremental encoder or SSI absolute encoder and is based on 6ES7138-6BA01-0BA0 with conformal coating.
Detailed Parameters
Product family / designation:SIPLUS ET 200SP TM Posinput 1
Based on:6ES7138-6BA01-0BA0
Conformal coating:Yes
Application:Counting and position detection module
Encoder interface:RS-422 incremental encoder or SSI absolute encoder
Number of DI:2
Number of DQ:2
Suitable for:BU type A0
Ambient temperature:-40…+60 °C
Engineering Context
Use SIPLUS ET 200SP TM Posinput 1 to implement counting and position detection based on RS-422 incremental encoder or SSI absolute encoder signals.
The module is based on 6ES7138-6BA01-0BA0 and includes conformal coating.
Provide 2 DI and 2 DQ as specified and use it with BU type A0.
FAQ
1. What does the SIPLUS ET 200SP TM Posinput 1 module do?
It is a counting and position detection module.
2. Which encoder types are supported?
RS-422 incremental encoder or SSI absolute encoder.
3. How many DI and DQ channels are available?
2 DI and 2 DQ.
4. What is the module based on?
It is based on 6ES7138-6BA01-0BA0.
5. What coating is included?
It has conformal coating.
6. Which BU type is the module suitable for?
BU type A0.
7. What ambient temperature range is specified?
-40…+60 °C.
