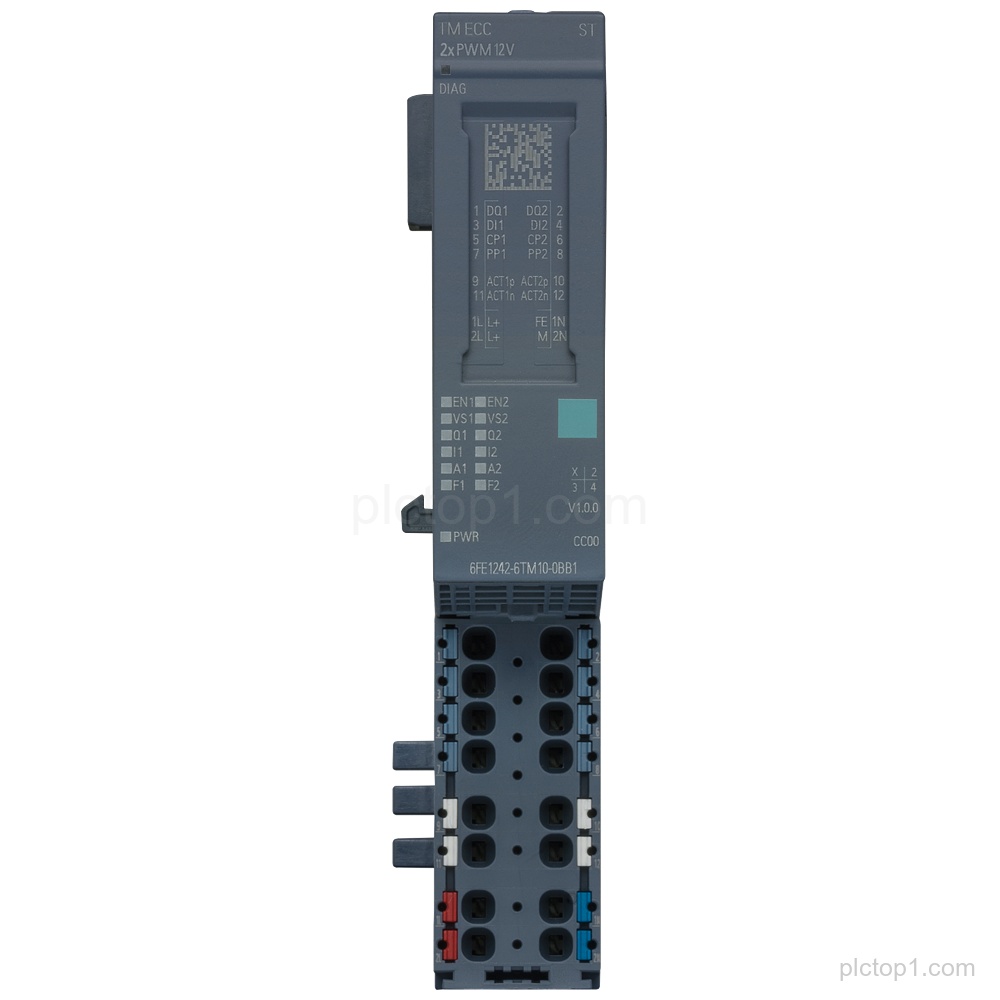

SIPLUS ET 200SP TM ECC 2xPWM is provided under part number 6AG1242-6TM10-2BB1 with conformal coating for load control in systems for conductive charging of electric vehicles according to IEC61851, including 2 charging outlets and associated control, switching, and interlock signals.
Detailed Parameters
Conformal coating:yes
Based on:6FE1242-6TM10-0BB1
Operating temperature:-30…+60 °C
Function:load controller for conductive charging of electric vehicles according to IEC61851
Charging outlets:2
Control Pilot:2x Control Pilot
Plug present:2x plug present
Switching output type:2x DQ switching contact for load contactor as open collector
Feedback inputs:2x DI for feedback
Locking:load contactor or connector lock
Connector interlock:2x ACT for connector interlock
Connector interlock suitability:suitable for BU type BU20-P12+A0+4B and BU20-P12+A4+0B
Engineering Context
SIPLUS ET 200SP TM ECC 2xPWM provides load control for conductive charging of electric vehicles according to IEC61851 with 2 charging outlets.
The TM ECC version is based on 6FE1242-6TM10-0BB1 and includes conformal coating.
The load contactor control is provided via 2x DQ switching contact as open collector, supported by 2x DI feedback and interlock signals (2x ACT).
FAQ
1. What is the function of part number 6AG1242-6TM10-2BB1?
It is a load controller for conductive charging of electric vehicles according to IEC61851.
2. How many charging outlets does 6AG1242-6TM10-2BB1 support?
It provides 2 charging outlets.
3. What PWM designation is included in this SIPLUS ET 200SP TM ECC?
It is designated as TM ECC 2xPWM.
4. Which channel signals are provided for each charging outlet?
It includes 2x Control Pilot, 2x plug present, 2x DI for feedback, and 2x ACT for connector interlock, as stated in the product information.
5. How is the load contactor controlled?
Via 2x DQ switching contact for load contactor as open collector.
6. What BU types is the connector interlock suitable for?
It is suitable for BU type BU20-P12+A0+4B and BU20-P12+A4+0B.
7. What is the operating temperature range for 6AG1242-6TM10-2BB1?
-30…+60 °C.
