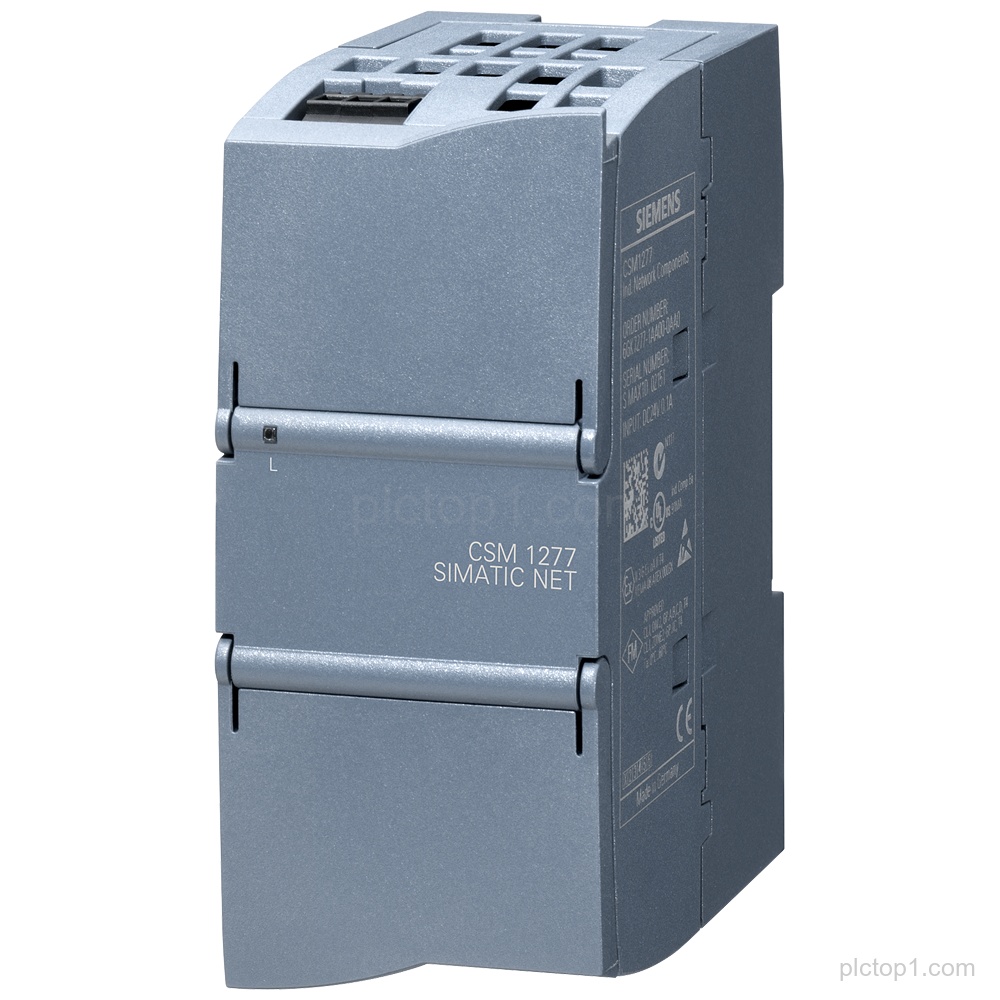

SIPLUS NET CSM 1277 -40…+70 °C with conformal coating (Part number: 6AG1277-1AA10-2AA0) provides a connection for SIMATIC S7-1200 and supports up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s.
Detailed Parameters
Product family:SIPLUS NET CSM 1277
Part number:6AG1277-1AA10-2AA0
Operating temperature:-40…+70 °C
Conformal coating:Conformal coating
Based on:6GK7277-1AA10-0AA0 Compact Switch Module CSM 1277
Connection to:SIMATIC S7-1200
Network expansion:Up to 3 further nodes
Industrial Ethernet data rate:10/100 Mbit/s
Engineering Context
Designed as a SIPLUS NET CSM 1277 connection for SIMATIC S7-1200 to Industrial Ethernet.
Supports connection of up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s.
Uses a conformal coating and is based on 6GK7277-1AA10-0AA0 Compact Switch Module CSM 1277.
FAQ
1. What is the operating temperature range for 6AG1277-1AA10-2AA0?
It is specified for -40…+70 °C.
2. What does 6AG1277-1AA10-2AA0 provide in a SIMATIC S7-1200 system?
It provides a connection to Industrial Ethernet for SIMATIC S7-1200.
3. How many additional nodes can be connected to Industrial Ethernet?
Up to 3 further nodes.
4. What Industrial Ethernet data rate is supported?
10/100 Mbit/s.
5. Is conformal coating included?
Yes, it is supplied with conformal coating.
6. Which module is 6AG1277-1AA10-2AA0 based on?
It is based on 6GK7277-1AA10-0AA0 Compact Switch Module CSM 1277.
