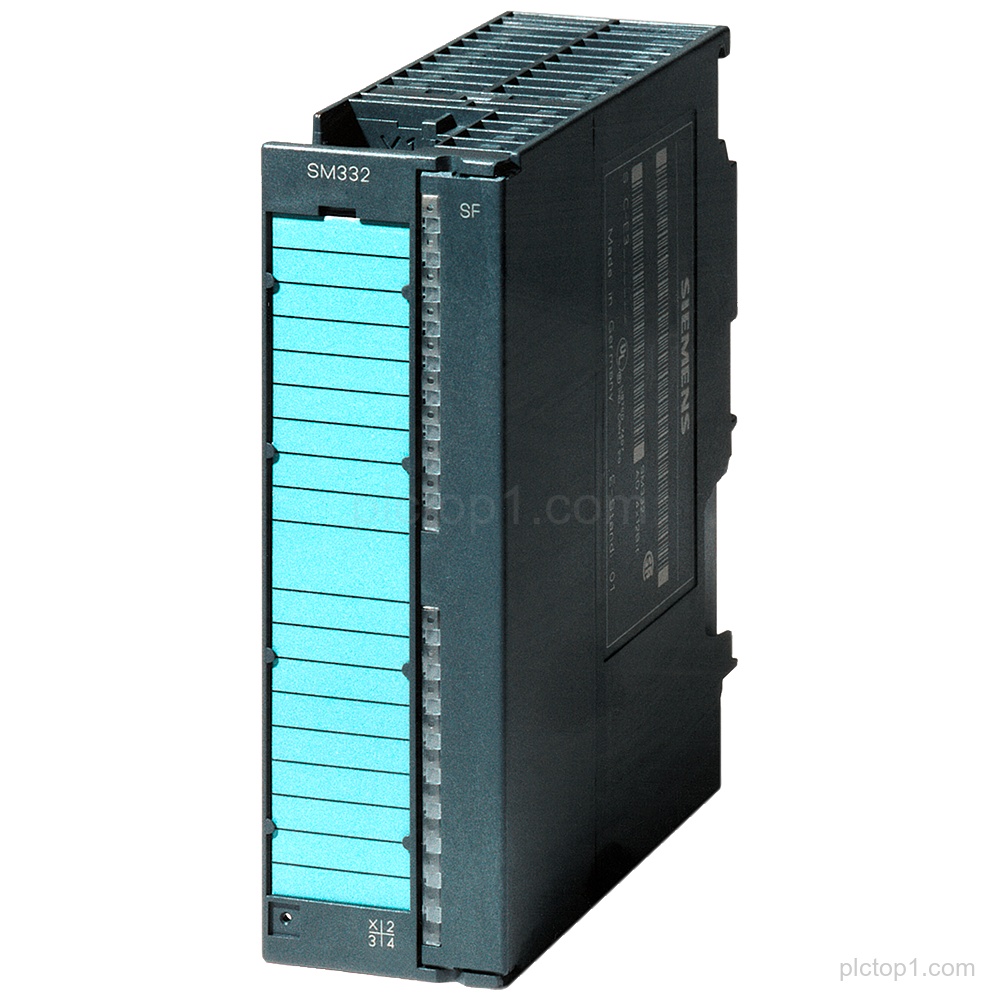

SIPLUS S7-300 SM 332 8 AO HART (part number 6AG1332-8TF01-2AB0) provides analog output 8 AO with HART based on 6ES7332-8TF01-0AB0 for ET 200M with IM 153-2, and includes conformal coating.
Detailed Parameters
Part number:6AG1332-8TF01-2AB0
Product family / designation:SIPLUS S7-300 SM 332 8 AO HART
Base reference:based on 6ES7332-8TF01-0AB0
Conformal coating:yes
Ambient temperature range:-25…+60 °C
Analog output:8 AO
Output signal range / mode:0/4 – 20 mA HART
HART:supported
Application system:for ET 200M
Required interface module:with IM 153-2
Firmware update:20-pole functions: firmware update
HART auxiliary variables:20-pole functions: HART auxiliary variables
Redundancy:20-pole functions: redundancy
Local diagnostic buffer:local diagnostic buffer with time stamping
Software requirement:requirement: PCS 7 V7.0, SP1
Spare part:spare part
Engineering Context
SIPLUS S7-300 SM 332 8 AO HART provides analog output 8 AO with HART in the signal range 0/4 – 20 mA.
The module is intended for use in ET 200M systems with IM 153-2.
The 20-pole functions include firmware update, HART auxiliary variables, redundancy, and a local diagnostic buffer with time stamping.
FAQ
1. What is the product designation of part 6AG1332-8TF01-2AB0?
SIPLUS S7-300 SM 332 8 AO HART.
2. How many analog outputs does this SM 332 8 AO HART provide?
8 AO.
3. Which output signal range/mode is specified for the analog outputs?
0/4 – 20 mA HART.
4. For which system is the module specified?
for ET 200M with IM 153-2.
5. Does the module include conformal coating?
Yes, conformal coating is specified.
6. What software requirement is stated for PCS 7?
PCS 7 V7.0, SP1.
