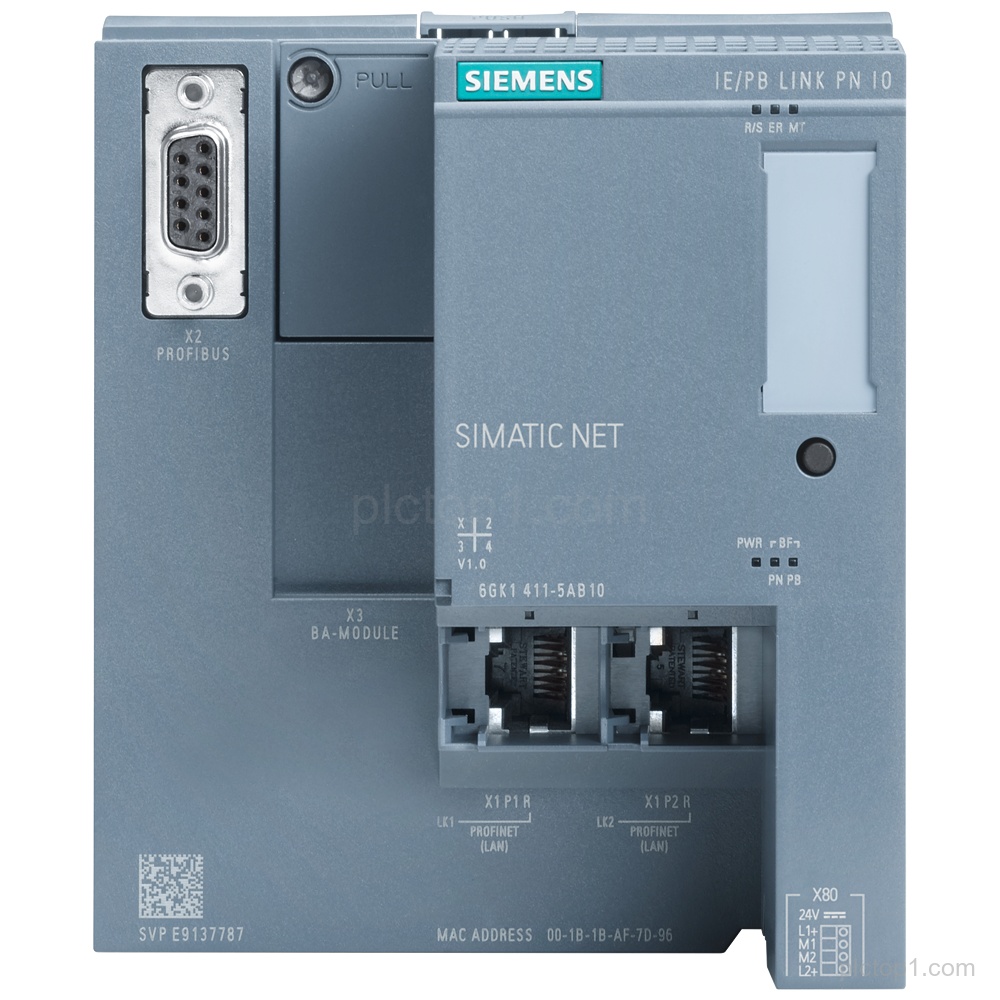

SIPLUS NET IE/PB Link PN IO gateway between Industrial Ethernet and PROFIBUS with the part number 6AG1411-5AB10-2AA0, featuring PROFINET IO functionality, S7 routing and data record routing.
Detailed Parameters
Conformal coating:Conformal coating
Operating temperature:-40…+60 °C
Base product:SIPLUS NET IE/PB Link PN IO based on 6GK1411-5AB10
Gateway function:Gateway between Industrial Ethernet and PROFIBUS
PROFINET IO functionality:Provided
Routing:S7 routing and data record routing
Ethernet interface:10/100 Mbps Fast Ethernet
PROFIBUS data rate:9.6 Kbit/s up to 12 Mbps
MRP:MRP
NTP:NTP
Engineering Context
The SIPLUS NET IE/PB Link PN IO provides a gateway role between Industrial Ethernet and PROFIBUS.
PROFINET IO functionality is included together with S7 routing and data record routing.
The Ethernet side operates at 10/100 Mbps Fast Ethernet while the PROFIBUS side supports 9.6 Kbit/s up to 12 Mbps.
FAQ
1. What does 6AG1411-5AB10-2AA0 do?
It is a SIPLUS NET IE/PB Link PN IO gateway between Industrial Ethernet and PROFIBUS with PROFINET IO functionality.
2. Which routing features are supported?
S7 routing and data record routing.
3. What are the Ethernet and PROFIBUS data rate characteristics?
It uses 10/100 Mbps Fast Ethernet and supports 9.6 Kbit/s up to 12 Mbps on PROFIBUS.
4. What temperature range is specified?
-40…+60 °C.
5. Does it include MRP and NTP?
Yes, MRP and NTP are specified.
