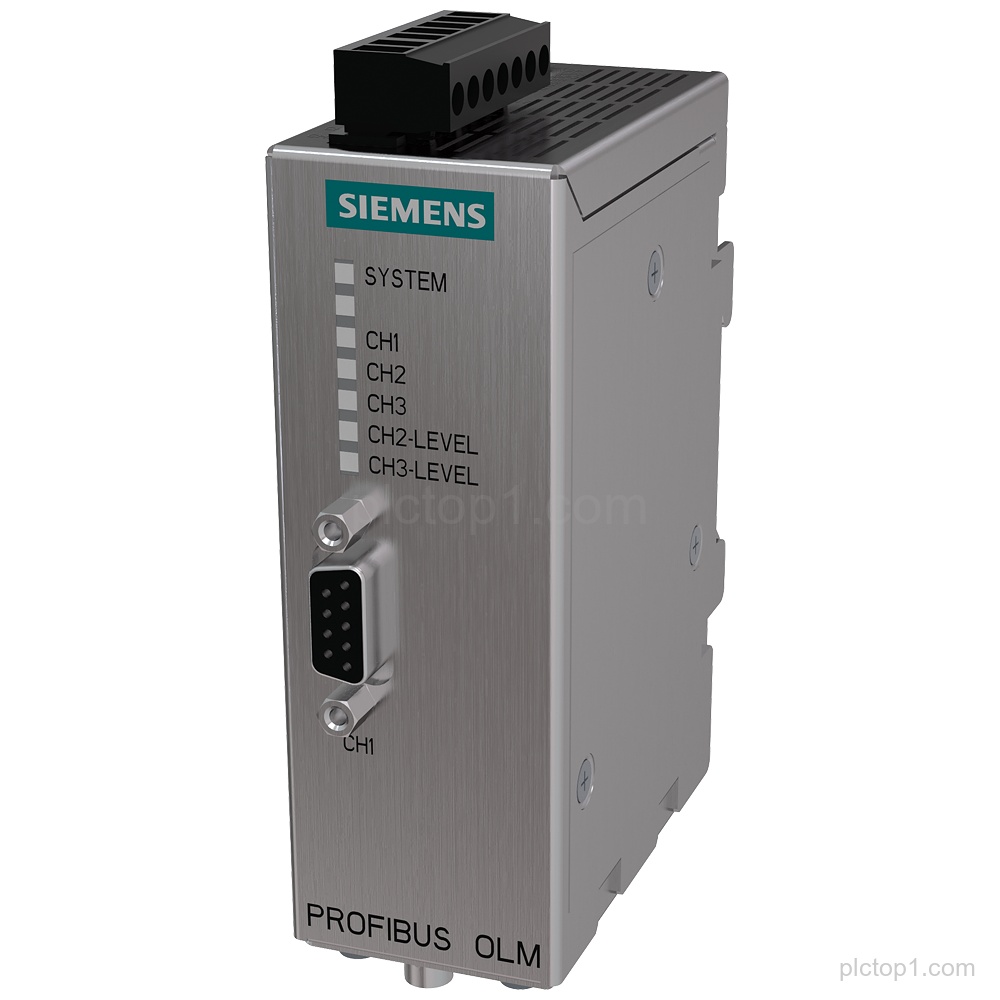

SIPLUS NET OLM G12-1300 V4.0 optical link module (Part Number: 6AG1503-3CC00-2AA0) is based on 6GK1503-3CC00 and provides optical link interfacing with RS-485 and glass fiber optic cable connections.
Detailed Parameters
Product line:SIPLUS NET
Type:OLM G12-1300 V4.0
Based on:6GK1503-3CC00
Conformal coating:with conformal coating
Temperature range:-25…+60 °C
Optical link module:PROFIBUS OLM/G12-1300 V4.0
Interfaces:1 RS-485 and 2 glass fiber optic cable interfaces
BFOC sockets:4
Shaft length:1300 Nm
Additional features:signaling contact and test port
Engineering Context
The PROFIBUS OLM/G12-1300 V4.0 optical link module provides an optical link interface between RS-485 and glass fiber optic cable connections.
The module is intended for large distances via a 1300 Nm shaft length and includes a signaling contact and test port.
The design includes conformal coating and is specified for an operating range of -25…+60 °C.
