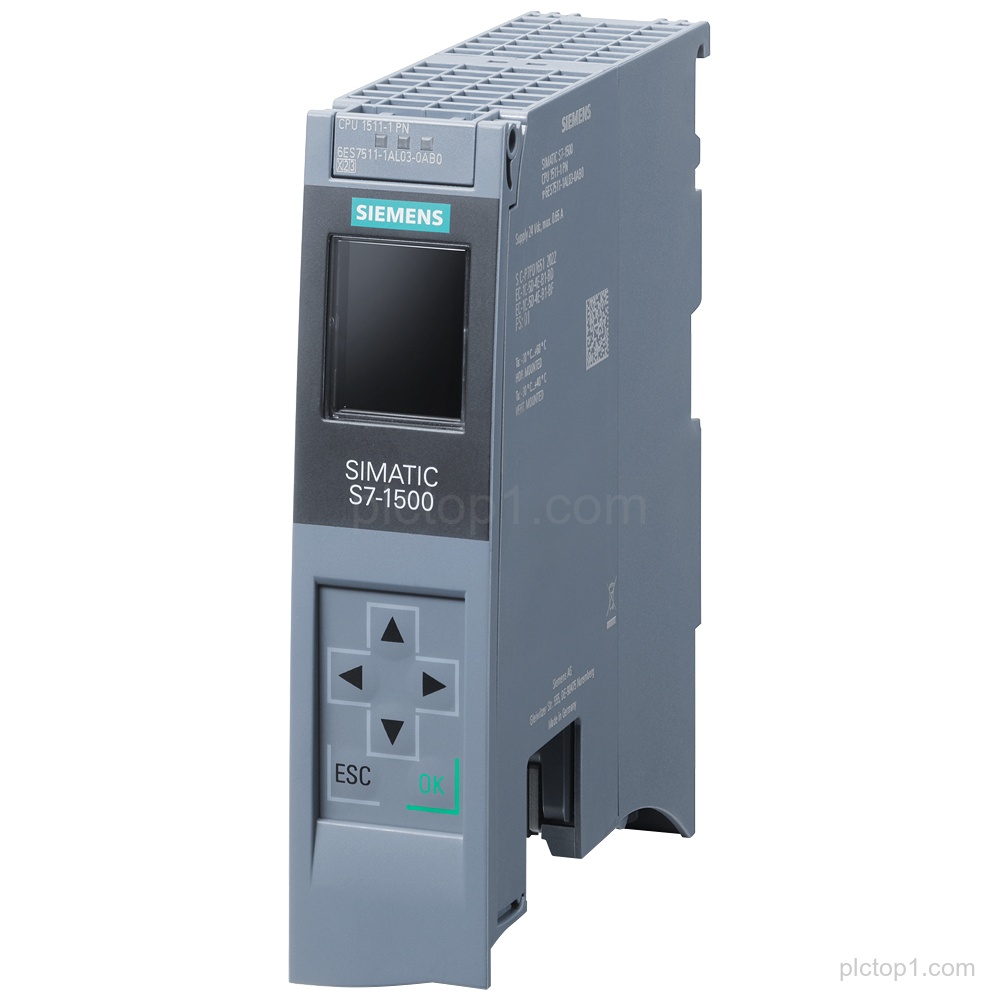

SIPLUS S7-1500 CPU 1511-1 PN 6AG1511-1AL03-7AB0 with conformal coating for -40…+70 °C, featuring work memory 300 KB for program and 1.5 MB for data.
Detailed Parameters
Product designation:SIPLUS S7-1500 CPU 1511-1 PN
Based on:6ES7511-1AL03-0AB0
Conformal coating:Yes
Permissible ambient temperature:-40…+70 °C
Work memory for program:300 KB
Work memory for data:1.5 MB
1st interface:PROFINET IRT with 2-port switch
Bit performance:25 ns
SIMATIC Memory Card required:Yes
Engineering Context
CPU 1511-1 PN provides central processing unit functionality for SIMATIC/SIPLUS S7-1500 system configurations based on 6ES7511-1AL03-0AB0.
The 1st interface is PROFINET IRT with 2-port switch.
Work memory is specified as 300 KB for program and 1.5 MB for data.
FAQ
1. What is the product family and designation for part number 6AG1511-1AL03-7AB0?
SIPLUS S7-1500 CPU 1511-1 PN.
2. What base product is 6AG1511-1AL03-7AB0 based on?
It is based on 6ES7511-1AL03-0AB0.
3. What coating and temperature range are specified?
It has conformal coating for -40…+70 °C.
4. How much work memory is available for program and data?
Work memory is 300 KB for program and 1.5 MB for data.
5. Which interface does the CPU provide as the 1st interface?
PROFINET IRT with 2-port switch.
6. Is a SIMATIC Memory Card required?
Yes.
