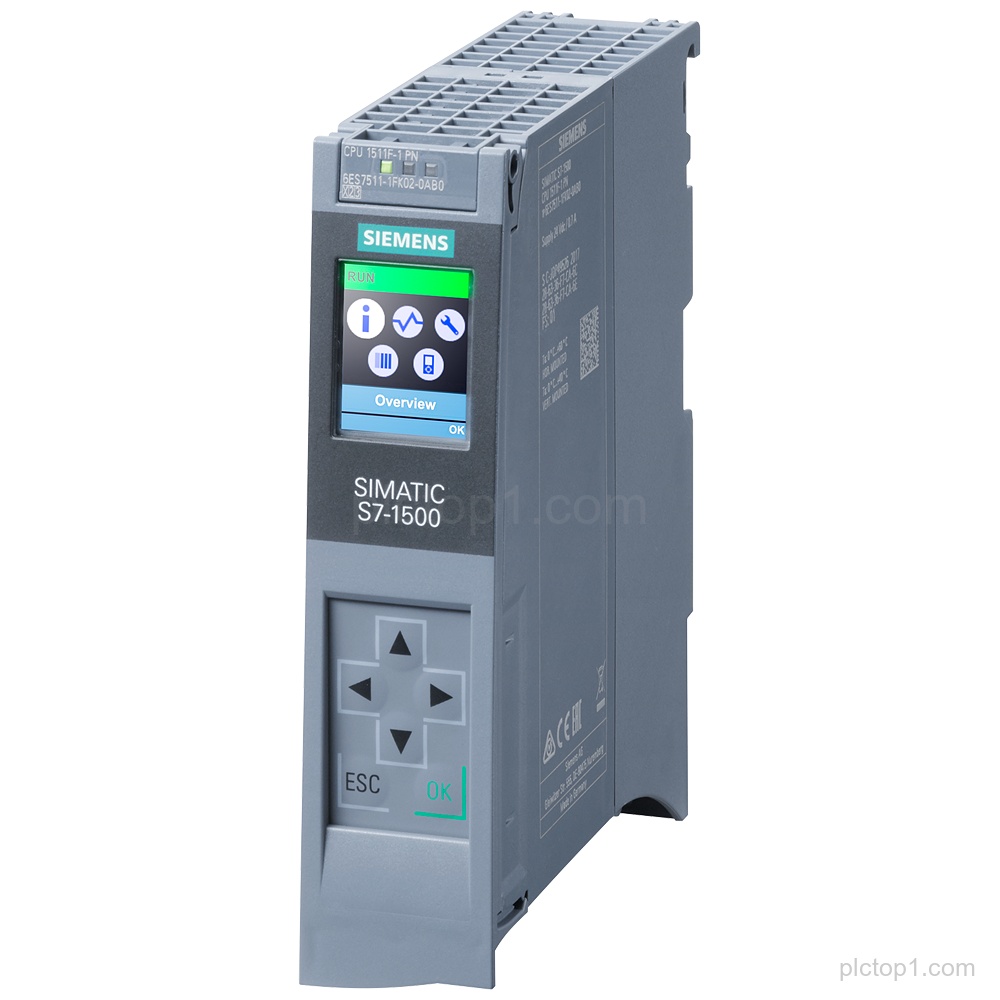

SIPLUS S7-1500 CPU 1511F-1 PN, Part number 6AG1511-1FK02-2AB0, is a central processing unit with conformal coating for use within the specified ambient temperature range.
Detailed Parameters
Product designation:SIPLUS S7-1500 CPU 1511F-1 PN
Based on:6ES7511-1FK02-0AB0
Conformal coating:with conformal coating
Ambient temperature:-25…+60 °C
Work memory (program):225 KB
Work memory (data):1 MB
1st interface:PROFINET IRT with 2-port switch
Bit performance:60 ns
Memory Card:SIMATIC Memory Card required (spare part display: 6AG1591-1AB00-2AA0)
Engineering Context
The central processing unit provides work memory for program and data.
The 1st interface is PROFINET IRT with a 2-port switch.
The conformal coating and specified ambient temperature range define the intended installation environment for the CPU.
FAQ
1. What product family and CPU designation does part number 6AG1511-1FK02-2AB0 belong to?
It belongs to the SIPLUS S7-1500 family and is designated CPU 1511F-1 PN.
2. What is the basis of the CPU 1511F-1 PN for part number 6AG1511-1FK02-2AB0?
It is based on 6ES7511-1FK02-0AB0.
3. What ambient temperature range is specified for this CPU?
-25…+60 °C.
4. How much work memory is available for program and for data?
Work memory is 225 KB for program and 1 MB for data.
5. What interface type and switch configuration are provided?
The 1st interface is PROFINET IRT with 2-port switch.
6. Is a SIMATIC Memory Card required, and which spare part is listed?
Yes. SIMATIC Memory Card required spare part display: 6AG1591-1AB00-2AA0.
