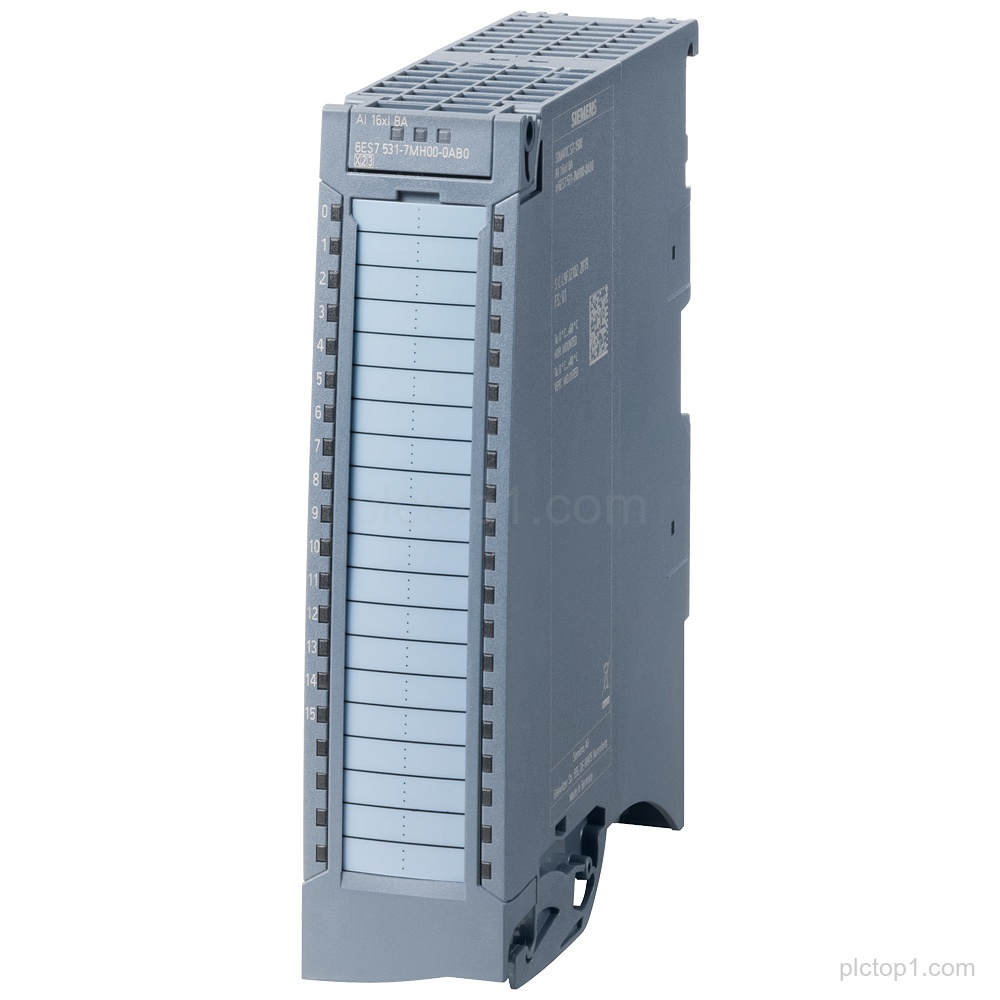

SIPLUS S7-1500 AI 16xI BA (Part Number: 6AG1531-7MH00-7AB0) is an analog input module based on 6ES7531-7MH00-0AB0 with conformal coating for -40…+70 °C.
Detailed Parameters
Product family / designation:SIPLUS S7-1500 AI 16xI BA
Module type:analog input module
Analog input:AI 16xI BA
Conformal coating:based on 6ES7531-7MH00-0AB0 with conformal coating
Ambient temperature:-40…+70 °C
Resolution:16-bit
Resolution accuracy:0.5%
Channel count:16
Channel grouping:16 channels in groups of 16
Common mode voltage:4 V DC
Diagnostics:yes
Hardware interrupts:yes
Delivery includes:infeed element, shielding bracket and shield terminal
Front connector:front connector (screw terminals or push-in) to be ordered separately
Engineering Context
The SIPLUS S7-1500 AI 16xI BA analog input module is based on 6ES7531-7MH00-0AB0 and provides analog input functionality with conformal coating.
The module specifies 16-bit resolution with 0.5% accuracy and 16 channels arranged in groups of 16.
Diagnostics and hardware interrupts are supported as part of the module’s specified functionality.
FAQ
1. What is the module type for 6AG1531-7MH00-7AB0?
It is an analog input module, designated as AI 16xI BA.
2. How many analog input channels does AI 16xI BA provide?
It provides 16 channels in groups of 16.
3. What resolution and resolution accuracy are specified?
It is specified with 16-bit resolution and 0.5% resolution accuracy.
4. What is the specified common mode voltage?
The specified common mode voltage is 4 V DC.
5. Which temperature range is specified for conformal coating operation?
The conformal coating is specified for -40…+70 °C.
6. What is included in delivery, and what must be ordered separately?
Delivery includes infeed element, shielding bracket and shield terminal; the front connector (screw terminals or push-in) must be ordered separately.
