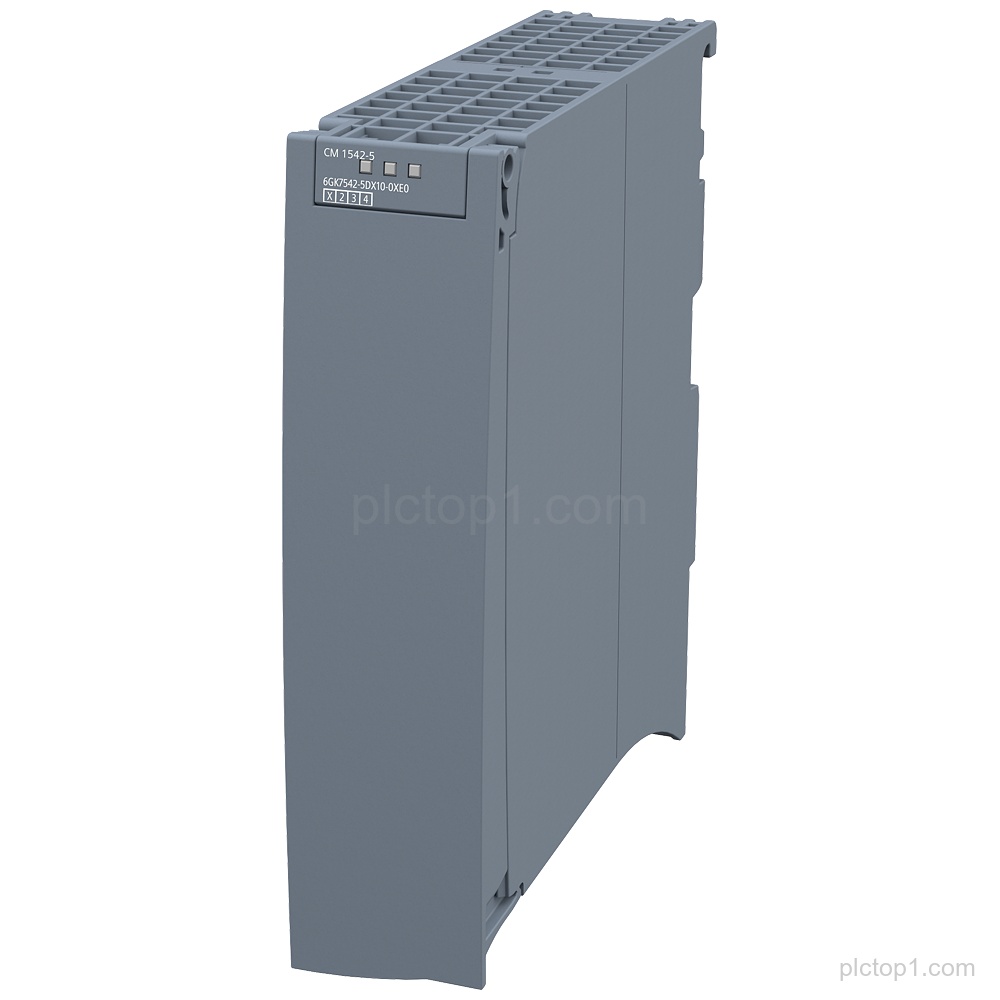

SIPLUS S7-1500 CM 1542-5 with part number 6AG1542-5DX10-7XE0 is based on 6GK7542-5DX10-0XE0 with conformal coating for S7-1500 communication to PROFIBUS DP.
Detailed Parameters
Conformal coating:Provided
Ambient operating temperature:-40…+70 °C
Start up temperature:-25 °C
Based on:6GK7542-5DX10-0XE0
Function:Communications module for connection of S7-1500 to PROFIBUS DP
PROFIBUS DP role:DP master and DP Device
DP Device communications:S7 and PG/OP communication
Time-of-day synchronization:Provided
Diagnostics:Provided
Engineering Context
The communications module connects S7-1500 to PROFIBUS DP as DP master and DP Device.
DP device communications include S7 and PG/OP communication.
Time-of-day synchronization and diagnostics are provided.
FAQ
1. What is the function of 6AG1542-5DX10-7XE0?
It is a communications module for connection of S7-1500 to PROFIBUS DP as DP master and DP Device.
2. Which DP device communications are supported?
S7 and PG/OP communication.
3. Does it include time-of-day synchronization?
Yes, time-of-day synchronization is provided.
4. Does it provide diagnostics?
Yes, diagnostics are provided.
5. What temperature range is specified for operation and start up?
Operating temperature is -40…+70 °C and start up temperature is -25 °C.
6. What is the base version it is based on?
It is based on 6GK7542-5DX10-0XE0 with conformal coating.
