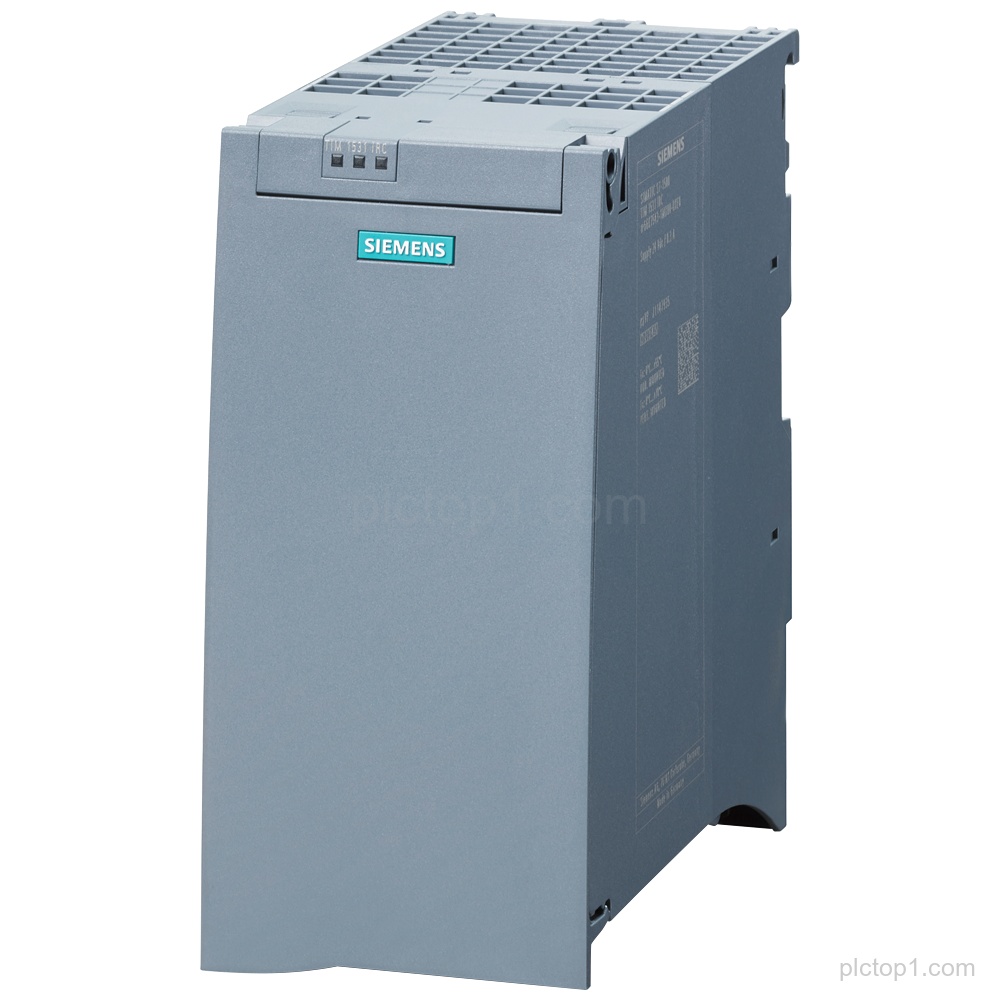

SIPLUS TIM 1531 IRC communications module 6AG1543-1MX00-7XE0 based on 6GK7543-1MX00-0XE0 with conformal coating, designed for use with SIMATIC S7-1500, S7-400, and S7-300 and SINAUT ST7.
Detailed Parameters
Product designation:SIPLUS TIM 1531 IRC
Base product:6GK7543-1MX00-0XE0
Conformal coating:with conformal coating
Temperature range:-40…+70 °C
Communications module:communications module for SIMATIC S7-1500, S7-400, S7-300 with SINAUT ST7
Interfaces (IP-based networks):three RJ45 interfaces for communication via IP-based networks (WAN / LAN)
Interface (classic wide area networks):RS-232/RS-485 interface for communications via classic wide area networks
Engineering Context
The SIPLUS TIM 1531 IRC communications module 6AG1543-1MX00-7XE0 supports communication for SIMATIC S7-1500, S7-400, S7-300 with SINAUT ST7.
For IP-based network communication, the module provides three RJ45 interfaces for communication via WAN / LAN.
For classic wide area network communication, the module provides an RS-232/RS-485 interface.
