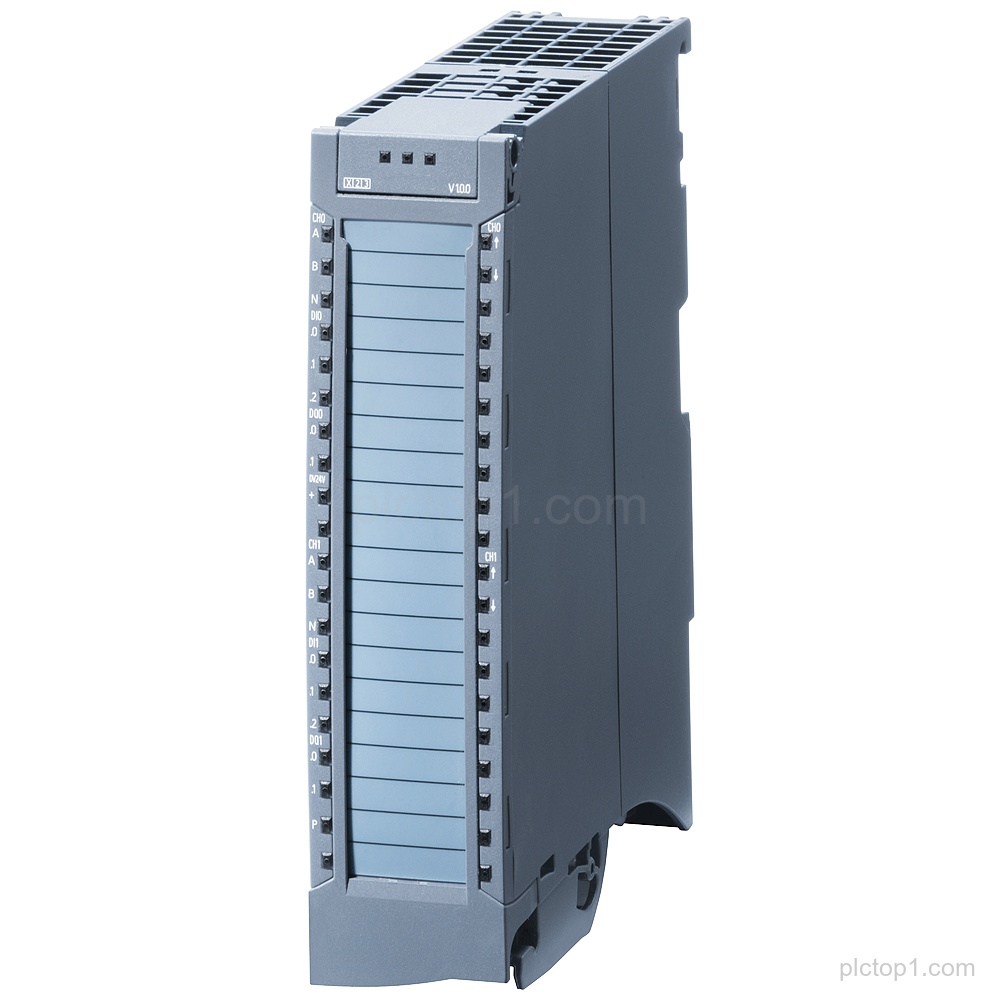

SIPLUS S7-1500 TM counter module with part number 6AG1550-1AA01-7AB0, based on 6ES7550-1AA01-0AB0 with conformal coating and temperature range -40…+70 °C.
Detailed Parameters
Based on:6ES7550-1AA01-0AB0
Conformal coating:Yes
Operating temperature:-40…+70 °C
Module type:counter module
Channels:2 channels for 24 V incremental encoder or pulse generator
DI per channel:3
DQ per channel:2
Engineering Context
The counter module provides 2 channels for 24 V incremental encoder or pulse generator signal connection.
The module is based on 6ES7550-1AA01-0AB0 and includes conformal coating.
The specified operating temperature range is -40…+70 °C.
FAQ
1. What type of module is 6AG1550-1AA01-7AB0?
It is a SIPLUS S7-1500 TM counter module.
2. How many channels does the counter module provide?
It provides 2 channels for 24 V incremental encoder or pulse generator.
3. What signal type is supported per the product information?
24 V incremental encoder or pulse generator.
4. What is the temperature range for 6AG1550-1AA01-7AB0?
-40…+70 °C.
5. Does the module use conformal coating?
Yes.
6. What are the DI and DQ counts per channel?
3 DI and 2 DQ per channel.
