Product information

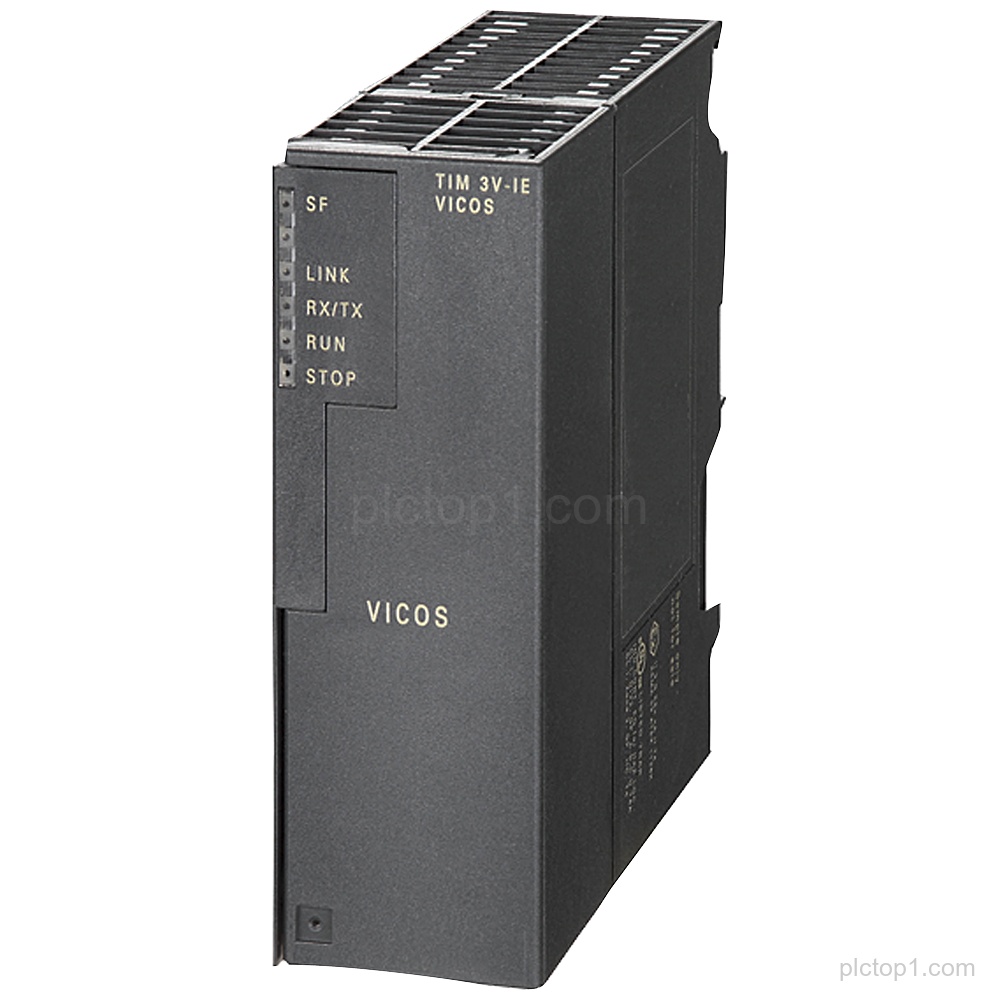

SIMATIC SIPLUS NET TIM 3V-IE communications module with conformal coating, part number 6AG1800-3BA00-7AA0, supports SINAUT communication via RS-232 interface and RJ45 interface for classic wide area network and IP-based network (WAN or LAN).
Detailed Parameters
Product type:communications module
products / system designation:SIPLUS NET TIM 3V-IE
Conformal coating:with conformal coating
Operating temperature:-25…+70 °C
Based on:6NH7800-3BA00
Interfaces:one RS-232 interface
Interfaces:RJ45 interface
SINAUT communication (classic WAN):via the RS-232 interface
SINAUT communication (IP-based network):via the RJ45 interface (WAN or LAN)
Intended for:SIMATIC S7-300 and C7
Spares part:spare part
Engineering Context
The SIPLUS NET TIM 3V-IE communications module (part number 6AG1800-3BA00-7AA0) is intended for use with SIMATIC S7-300 and C7.
The module provides SINAUT connectivity via one RS-232 interface for classic wide area network operation.
The module provides SINAUT connectivity via an RJ45 interface for IP-based network operation (WAN or LAN).
FAQ
1. What is the product designation for part number 6AG1800-3BA00-7AA0?
SIPLUS NET TIM 3V-IE.
2. Is 6AG1800-3BA00-7AA0 a spare part?
Yes, it is specified as a spare part.
3. Which systems is the module intended for?
SIMATIC S7-300 and C7.
4. Does the module include conformal coating?
Yes, it is specified as ‘with conformal coating’.
5. What temperature range is specified for the module?
-25…+70 °C.
6. Which interfaces are provided for SINAUT communication?
One RS-232 interface and an RJ45 interface.
7. How is SINAUT communication supported over wide area and IP-based networks?
SINAUT via the classic wide area network is supported via the RS-232 interface, and SINAUT via an IP-based network (WAN or LAN) is supported via the RJ45 interface.
