Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

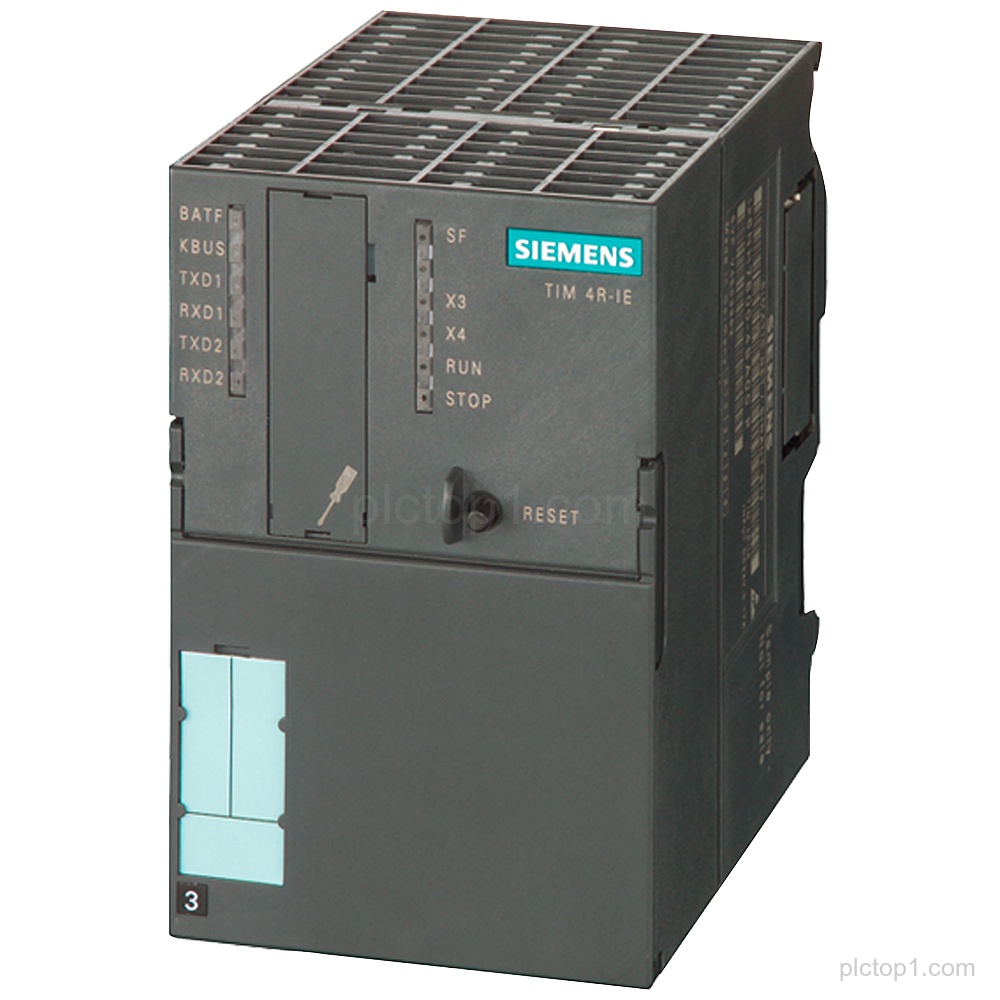

SIPLUS NET TIM 4R-IE communications module, part number 6AG1800-4BA00-7AA0, is provided as a spare part based on 6NH7800-4BA00 with conformal coating for SINAUT communication via classic wide area networks and IP-based networks (WAN or LAN).
Detailed Parameters
Part number:6AG1800-4BA00-7AA0
Product type:communications module
Product family:SIPLUS NET TIM 4R-IE
Spare part:spare part
Based on:6NH7800-4BA00
Conformal coating:yes
Operating temperature:-25…+70 °C
System compatibility (as stated):SIMATIC S7-300, S7-400, C7, PC
SINAUT communication via classic wide area networks:two RS-232/RS-485 interfaces
SINAUT communication via IP-based networks:two RJ45 interfaces for WAN or LAN
Engineering Context
The SIPLUS NET TIM 4R-IE communications module (6AG1800-4BA00-7AA0) is used for SINAUT communication via classic wide area networks and IP-based networks (WAN or LAN).
Two RS-232/RS-485 interfaces are provided for SINAUT communication via classic wide area networks.
Two RJ45 interfaces are provided for SINAUT communication via IP-based networks (WAN or LAN).
FAQ
1. What is the function of 6AG1800-4BA00-7AA0?
It is a SIPLUS NET TIM 4R-IE communications module for SINAUT communication via classic wide area networks and IP-based networks (WAN or LAN).
2. Is 6AG1800-4BA00-7AA0 provided as a spare part?
Yes, it is provided as a spare part.
3. What is the temperature range for 6AG1800-4BA00-7AA0?
The specified range is -25…+70 °C.
4. How many RS-232/RS-485 interfaces are available on the SIPLUS NET TIM 4R-IE?
Two RS-232/RS-485 interfaces.
5. How many RJ45 interfaces are available on the SIPLUS NET TIM 4R-IE?
Two RJ45 interfaces.
6. Based on which Siemens part is the SIPLUS NET TIM 4R-IE spare part?
It is based on 6NH7800-4BA00.
