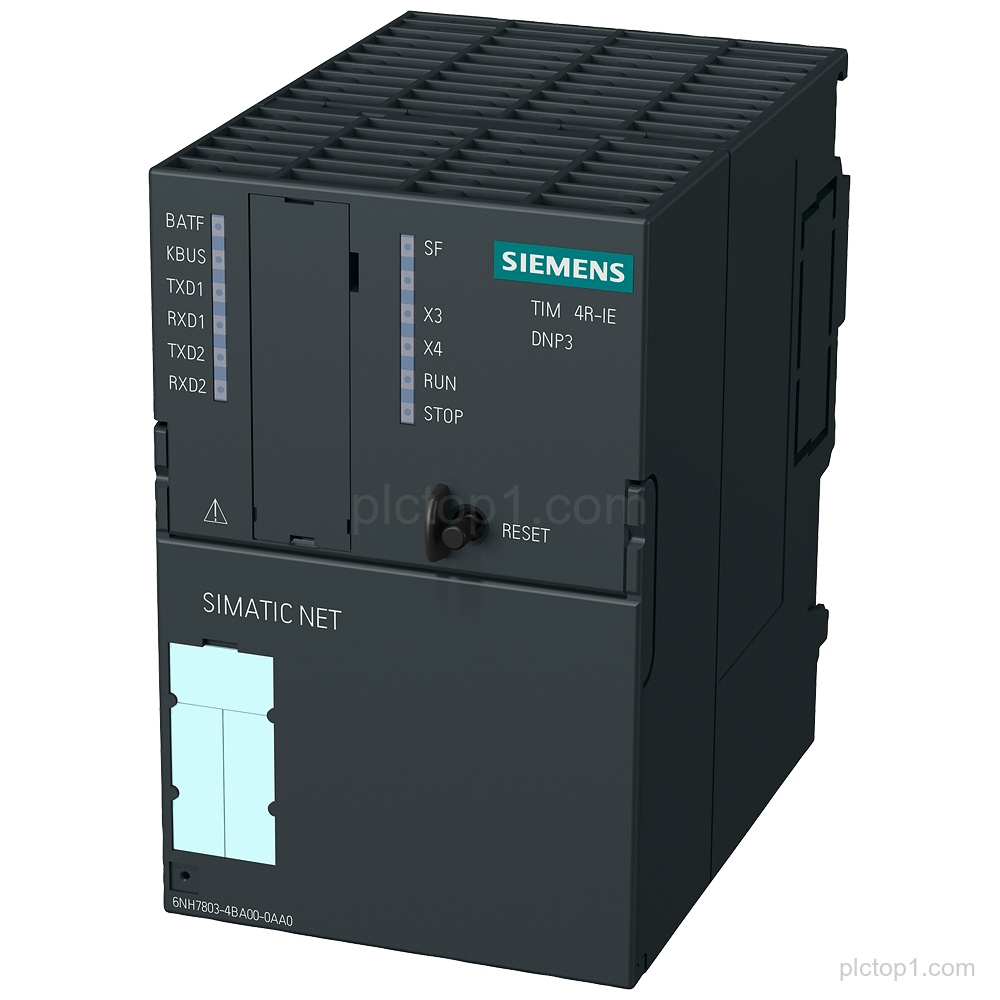

SIPLUS NET TIM 4R-IE DNP3 DNP3 communications module for SIMATIC S7-300, S7-400, and PC; part number 6AG1803-4BA00-7AA0, with conformal coating and operation in the range -25…+70 °C.
Detailed Parameters
Product type:spare part
Product family/designation:SIPLUS NET TIM 4R-IE DNP3
Based on:6NH7803-4BA00-0AA0
Conformal coating:yes
Operating temperature range:-25…+70 °C
Interfaces for DNP3 via classic WAN:two RS 232/RS 485 interfaces
Interfaces for DNP3 via IP-based networks:two RJ45 interfaces
Networks for DNP3 communication:classic wide area networks and IP-based networks (WAN or LAN)
Intended for:SIMATIC S7-300, S7-400, PC
Engineering Context
The TIM 4R-IE DNP3 provides DNP3 communication for SIMATIC S7-300, S7-400, and PC systems.
DNP3 communication is supported via two RS 232/RS 485 interfaces for classic wide area networks and via two RJ45 interfaces for IP-based networks (WAN or LAN).
The module is conformal coated and specified for an operating temperature range of -25…+70 °C.
