Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

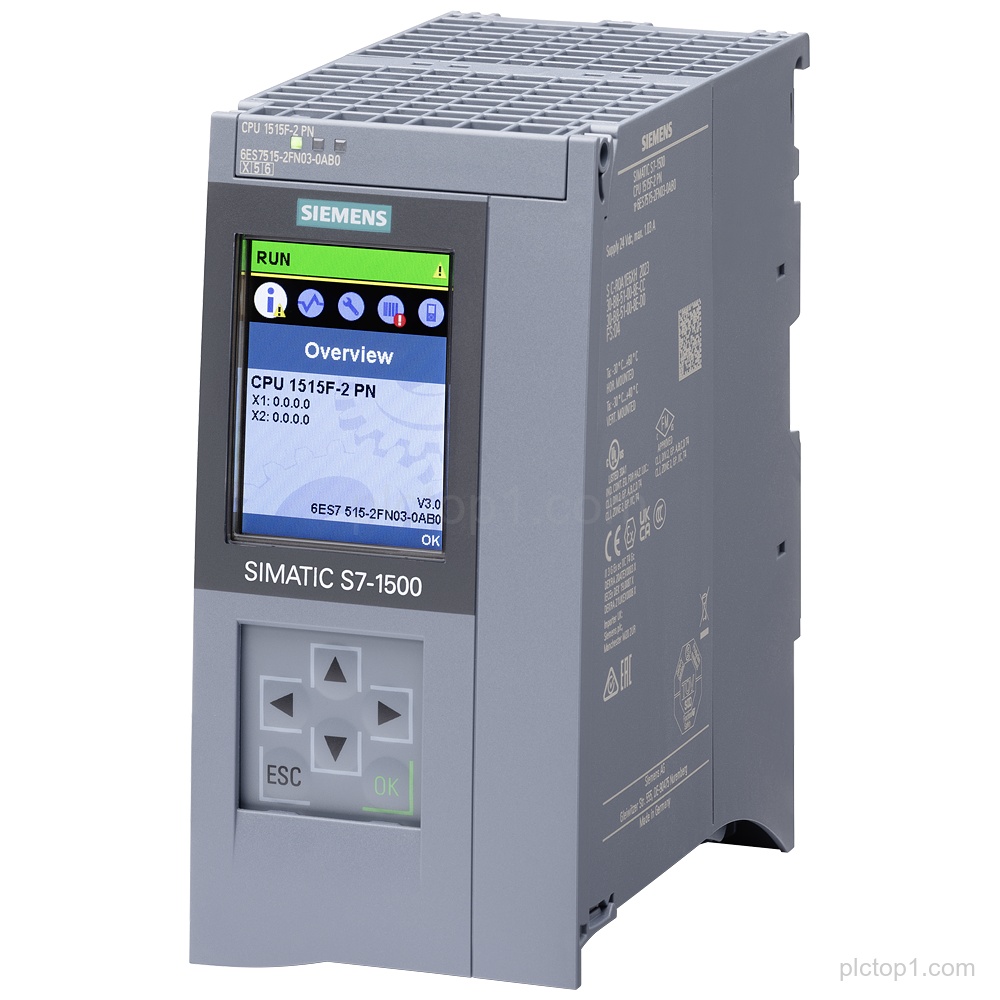

SIPLUS S7-1500 CPU 1515F-2 (Part Number: 6AG2515-2FN03-4AB0) is specified as a central processing unit based on 6ES7515-2FN03-0AB0 with conformal coating OT4: -40…+70 °C and ST1/2: 85 °C for 10 minutes.
Detailed Parameters
Based on:6ES7515-2FN03-0AB0
Conformal coating:OT4: -40…+70 °C; ST1/2: 85 °C for 10 minutes
Work memory (program):1.5 MB
Work memory (data):4.5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
Bit performance:6 ns
Memory card:SIMATIC Memory Card required
Engineering Context
Use 6AG2515-2FN03-4AB0 as a central processing unit within the SIPLUS S7-1500 CPU 1515F-2 configuration.
Configure the CPU networking using the 1st interface PROFINET IRT with 2-port switch and the 2nd interface PROFINET RT.
Plan program and data usage based on 1.5 MB work memory for program and 4.5 MB for data.
FAQ
1. What is the product family and designation for part number 6AG2515-2FN03-4AB0?
It is a SIPLUS S7-1500 CPU 1515F-2.
2. Which interfaces are provided by 6AG2515-2FN03-4AB0?
The 1st interface is PROFINET IRT with 2-port switch and the 2nd interface is PROFINET RT.
3. How much work memory is available for program and data?
It provides 1.5 MB work memory for program and 4.5 MB for data.
4. What conformal coating conditions are specified for this CPU?
Conformal coating is specified as OT4: -40…+70 °C and ST1/2: 85 °C for 10 minutes.
5. Is a SIMATIC Memory Card required for 6AG2515-2FN03-4AB0?
Yes, SIMATIC Memory Card required is specified.
6. What is the stated bit performance of the CPU?
The bit performance is stated as 6 ns.
