Product information

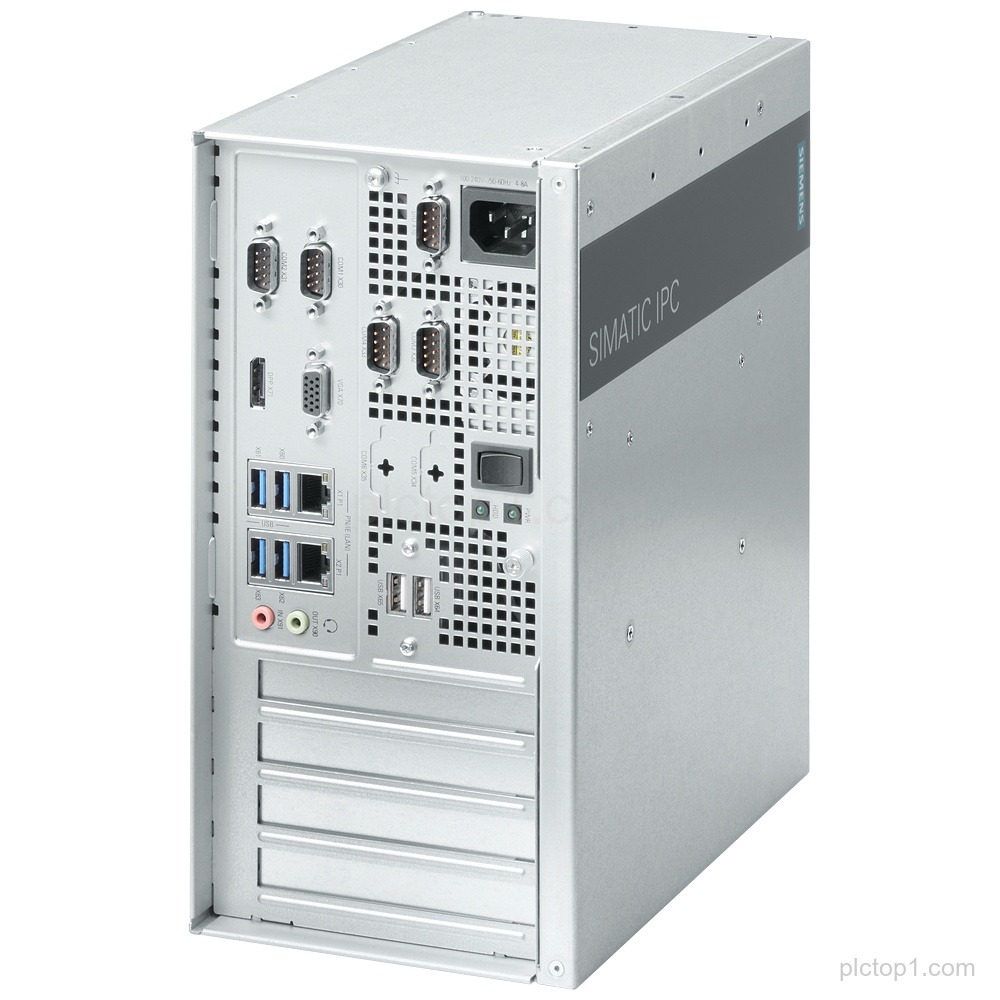

SIMATIC IPC527G (Box PC) 6AG4025-0CE20-2BB0 provides computing performance and integrated interfaces for system integration, including Gigabit Ethernet and configurable serial interfaces.
Detailed Parameters
Processor:Core i5-6500 (4C/4T, 3.2 (3.6) GHz)
Memory:8 GB DDR4
Storage:256 GB SSD, internal
Operating system:Windows 7 Ultimate 64 bit, MUI
Ethernet ports:2x Gigabit Ethernet (IE/PN)
Video outputs:1x display port, 1x VGA
USB ports:4x USB 3.0, 2x USB 2.0
Serial interfaces:2x RS232/485/422 (can be selected)
Additional serial/IO interfaces:2x RS232, 1x 8bit DIO
Expansion slots:2x PCI; 1x PCIex16, 1x PCIe x1
Power supply:100/240 V AC power supply without line cable
Engineering Context
SIMATIC IPC527G (Box PC) 6AG4025-0CE20-2BB0 is intended as a Box PC platform with integrated Ethernet and multiple I/O interfaces.
The serial interface configuration includes 2x RS232/485/422 with selectable mode and additional ports listed for RS232 and 8bit DIO.
System integration can utilize the provided video outputs (display port and VGA) and expansion slots (PCI and PCIe variants).
FAQ
1. What is the product family and type for part 6AG4025-0CE20-2BB0?
6AG4025-0CE20-2BB0 is SIMATIC IPC527G (Box PC).
2. Which processor, RAM, and internal storage are included?
It includes Core i5-6500 (4C/4T, 3.2 (3.6) GHz), 8 GB DDR4, and 256 GB SSD (internal).
3. Which operating system is specified?
Windows 7 Ultimate 64 bit, MUI.
4. How many Gigabit Ethernet ports are available and what designation is provided?
2x Gigabit Ethernet (IE/PN).
5. What serial interfaces are provided and can they be selected?
2x RS232/485/422 (can be selected), and additionally 2x RS232.
6. What video outputs are available?
1x display port and 1x VGA.
7. What power supply input is specified for this Box PC?
100/240 V AC power supply without line cable.
