Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

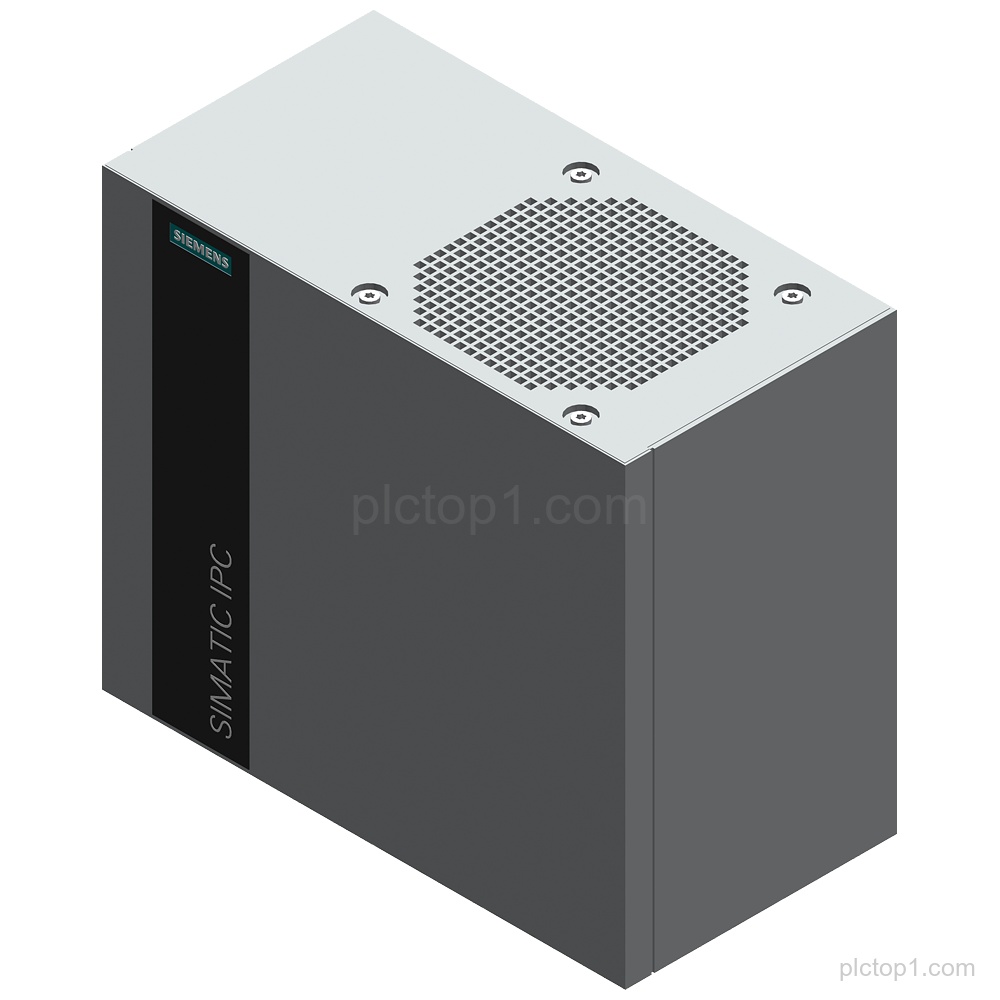

SIMATIC IPC527G (Box PC) with Part Number 6AG4025-0DE20-6CA0 and the listed CPU, memory, storage, operating system, and interface options.
Detailed Parameters
CPU:Core i7-6700 (4C/8T, 3,4 (4,0) GHz)
Internal storage:256 GB SSD, internal
Memory:8 GB DDR4
Operating system:Windows 10 IoT Enterprise LTSC 2019 64 bit, MUI
Ethernet interfaces:2x Gigabit Ethernet (IE/PN)
Display interfaces:1x display port, 1x VGA
USB interfaces:4x USB 3.0, 2x USB 2.0
Serial interfaces:2x RS232/485/422 (can be selected)
Additional RS232:2x RS232
Digital I/O:1x 8bit DIO
Expansion slots (PCIe):1x PCIex16, 1x PCIex4, 2x PCIex1
Power supply:100/240 V AC power supply without line cable
Engineering Context
The SIMATIC IPC527G (Box PC) provides the specified CPU, internal SSD, and DDR4 memory configuration for the system level.
The interface set includes 2x Gigabit Ethernet (IE/PN), display outputs (1x display port, 1x VGA), USB connectivity, and selectable 2x RS232/485/422 ports.
The serial interface configuration includes 2x RS232 and additional 8bit DIO alongside the listed PCIe expansion slots.
FAQ
1. What is the CPU and clock range of the SIMATIC IPC527G (Box PC) with Part Number 6AG4025-0DE20-6CA0?
Core i7-6700 (4C/8T, 3,4 (4,0) GHz).
2. What internal storage and memory are specified for Part Number 6AG4025-0DE20-6CA0?
256 GB SSD, internal and 8 GB DDR4.
3. Which operating system is provided on the SIMATIC IPC527G (Box PC) configuration?
Windows 10 IoT Enterprise LTSC 2019 64 bit, MUI.
4. How many Gigabit Ethernet interfaces are provided and what designation is listed for them?
2x Gigabit Ethernet (IE/PN).
5. What display outputs are available?
1x display port and 1x VGA.
6. What serial interface options are included, and what does “can be selected” refer to?
2x RS232/485/422 (can be selected).
7. What is the specified power supply for Part Number 6AG4025-0DE20-6CA0?
100/240 V AC power supply without line cable.
