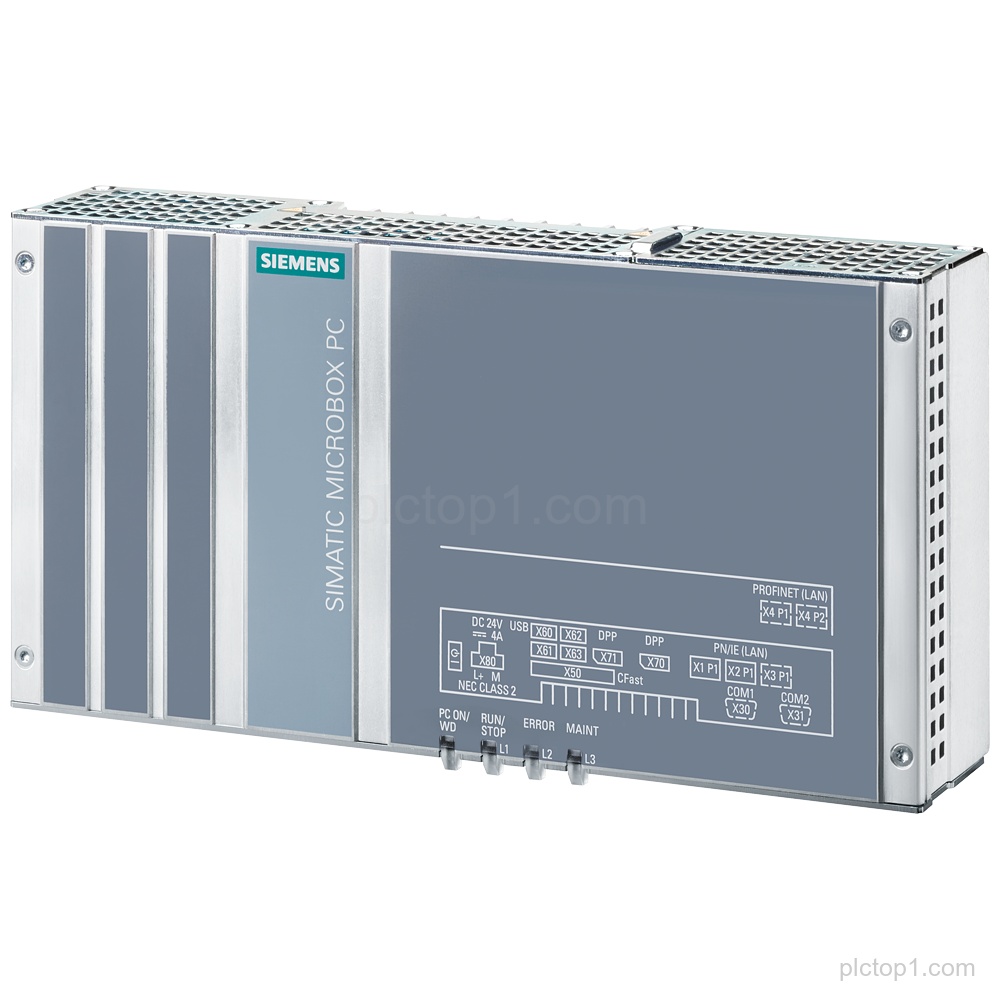

SIMATIC IPC427E (Microbox PC) product part number 6AG4141-1AA14-0FA0 is configured with onboard HD graphic, 3x Gbit Ethernet (IE/PN), and 24 V DC industrial power supply; it is supplied without mounting accessories and without RS232/485.
Detailed Parameters
Working memory:4 GB
Onboard graphics:HD graphic
USB:4x USB V3.0 (high current)
PCIe:PCIE (optional); 1x PCIe (x4)
Ethernet:3x Gbit Ethernet (IE/PN)
Internal mass storage:240 GB Solid-State Drive SATA
Replaceable mass storage:w/o replaceable mass storage
Processor:Celeron G3902E
RS232/485:w/o RS232/485
SIMATIC Software:w/o SIMATIC Software
Mounting accessories:w/o mounting accessories
Operating system:Windows 7 Ultimate SP1, 64 Bit, MUI (ge, en, es, fr, it)
Power supply:24 V DC industrial power supply
Engineering Context
The Microbox PC provides onboard HD graphic and a Celeron G3902E processor configuration for a SIMATIC IPC427E system.
The interface set includes 4x USB V3.0 (high current) and 3x Gbit Ethernet (IE/PN) with PCIe support configured as 1x PCIe (x4).
The unit is delivered without mounting accessories and without RS232/485 and includes an internal 240 GB Solid-State Drive SATA.
FAQ
1. What is the product family for part number 6AG4141-1AA14-0FA0?
SIMATIC IPC427E (Microbox PC).
2. Which graphics and memory configuration are included?
Onboard HD graphic and working memory 4 GB.
3. How many USB ports are provided and what version?
4x USB V3.0 (high current).
4. What Ethernet interfaces are available?
3x Gbit Ethernet (IE/PN).
5. Is RS232/485 included?
No, it is w/o RS232/485.
6. What internal mass storage is specified?
240 GB Solid-State Drive SATA (w/o replaceable mass storage).
7. Which operating system and licensing languages are specified?
Windows 7 Ultimate SP1, 64 Bit, MUI (ge, en, es, fr, it).
8. What power supply is used?
24 V DC industrial power supply.
