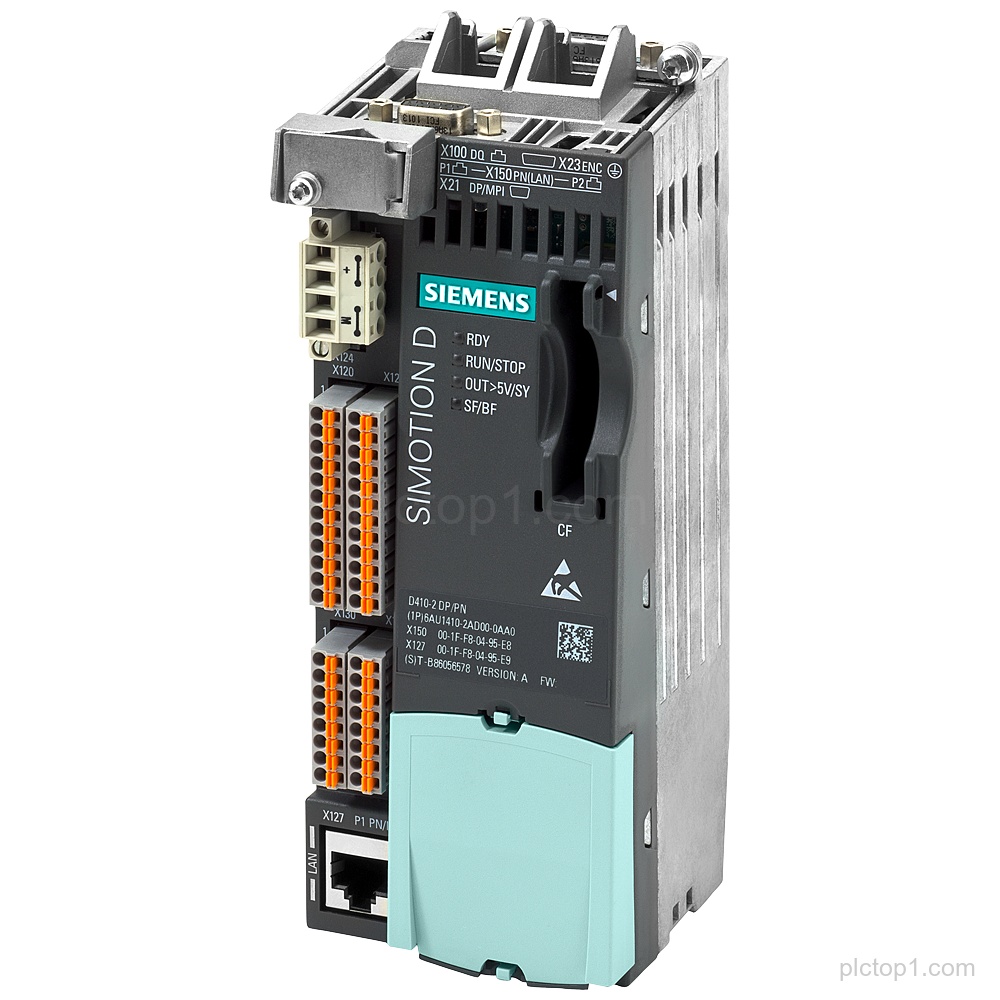

SIMOTION Drive-based Control Unit D410-2 DP/PN (part number 6AU1410-2AD00-0AA0) provides programmable single-axis motion controller functionality with a multi-axis option and supports multiple interface types for system integration. Operation requires at least SCOUT/firmware V4.3 SP1 HF3.
Detailed Parameters
Part number:6AU1410-2AD00-0AA0
System designation:SIMOTION Drive-based Control Unit D410-2 DP/PN
Controller type:programmable single-axis motion controller
Multi-axis option:supported
Interfaces:5 DI, 8 DI/DO, 3 F-DI, 1 F-DO, 1 AI, 1 encoder, 1 DRIVE-CLiQ, 1 PROFIBUS, 2 PROFINET ports, 1 ethernet
Requirement:requires at least SCOUT/firmware V4.3 SP1 HF3
Engineering Context
The SIMOTION Drive-based Control Unit D410-2 DP/PN provides programmable single-axis motion controller functionality with a multi-axis option.
The unit offers digital and functional I/O interfaces including 5 DI, 8 DI/DO, 3 F-DI, and 1 F-DO, plus 1 AI and 1 encoder input.
The unit supports system connectivity via 1 DRIVE-CLiQ and network interfaces including 1 PROFIBUS and 2 PROFINET ports, as well as 1 ethernet.
FAQ
1. What is the product family and designation for part number 6AU1410-2AD00-0AA0?
It is a SIMOTION Drive-based Control Unit D410-2 DP/PN.
2. What control functionality does the D410-2 DP/PN provide?
It is a programmable single-axis motion controller with a multi-axis option.
3. How many DI and DI/DO channels are listed for this unit?
The interfaces list includes 5 DI and 8 DI/DO.
4. Which functional I/O channels are listed?
The interfaces list includes 3 F-DI and 1 F-DO.
5. What analog and sensing interfaces are listed?
The interfaces list includes 1 AI and 1 encoder.
6. What connectivity interfaces are listed for the unit?
The interfaces list includes 1 DRIVE-CLiQ, 1 PROFIBUS, 2 PROFINET ports, and 1 ethernet.
7. What minimum SCOUT/firmware level is required?
It requires at least SCOUT/firmware V4.3 SP1 HF3.
