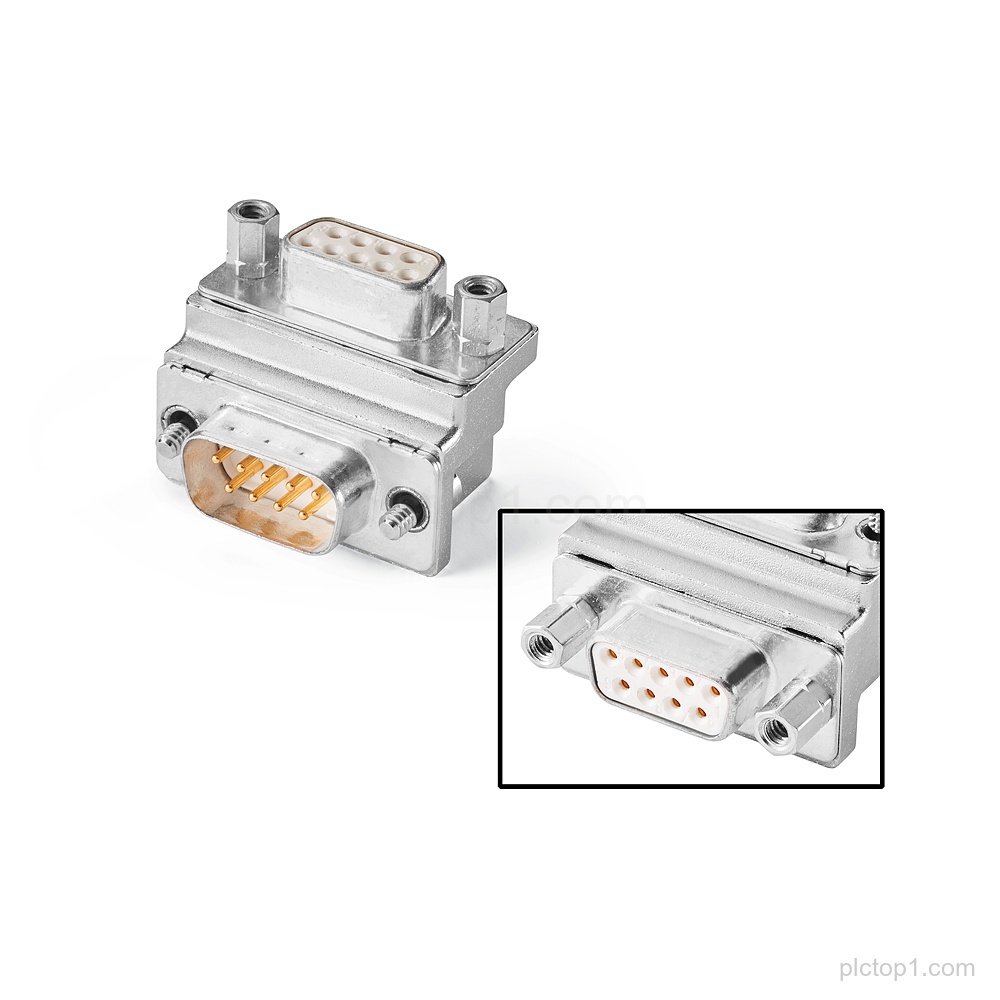

90-degree angle adapter for screw-together installation with RS-485/422 interface or RS-232 interface, part number 6AV6671-8XD00-0AX0.
Detailed Parameters
Product type:90-degree angle adapter
Ratio:1:1
Mounting:can be screwed together
Interfaces:RS-485/422 interface or RS-232 interface
Scope of supply:1 angle adapter
Engineering Context
Use the 90-degree angle adapter to provide a 1:1 screw-together connection arrangement with an RS-485/422 interface or RS-232 interface.
The part number 6AV6671-8XD00-0AX0 is supplied as 1 angle adapter.
The connection is intended for installation where a 90-degree angle adapter is required for wiring layout.
FAQ
1. What is the function of part number 6AV6671-8XD00-0AX0?
It is a 90-degree angle adapter.
2. What ratio is supported by this adapter?
The adapter is 1:1.
3. How is the adapter mounted?
It can be screwed together.
4. Which interfaces can be connected using this adapter?
It can be screwed together with an RS-485/422 interface or an RS-232 interface.
5. What is included in the scope of supply?
1 angle adapter.
