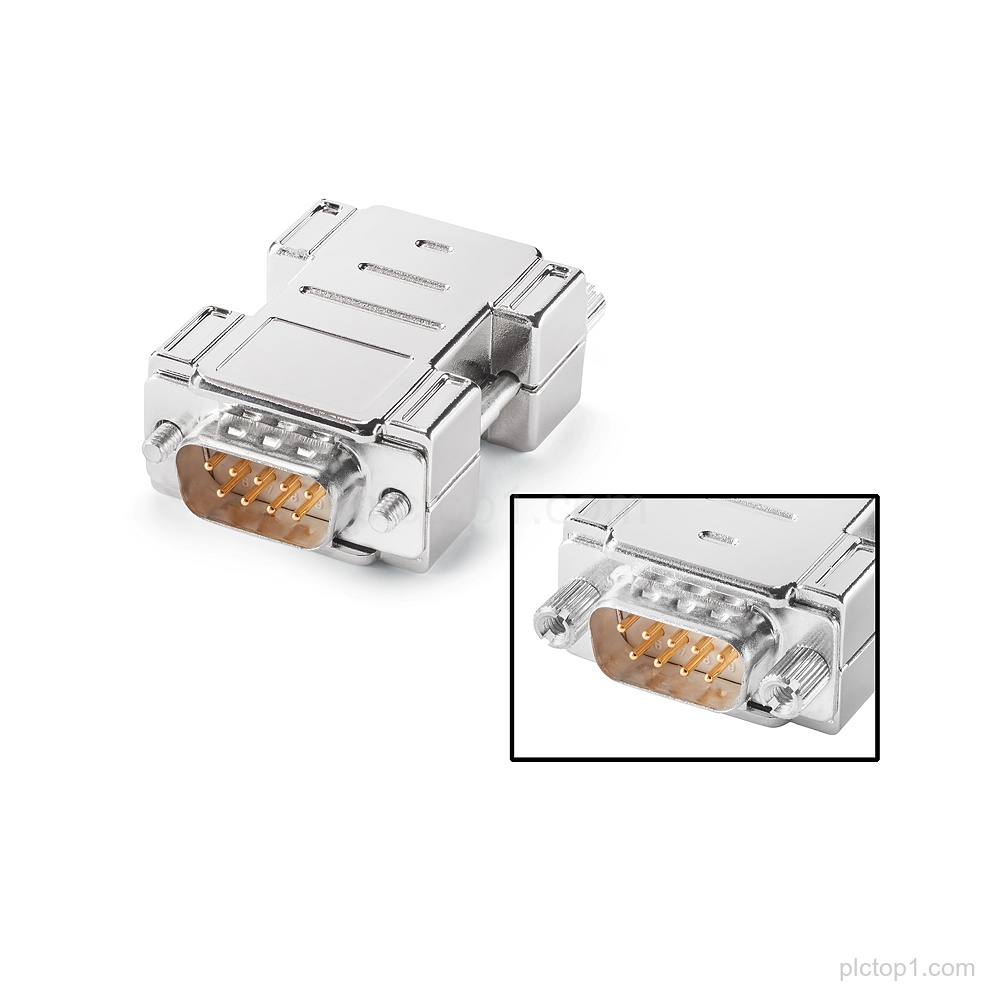

Converter RS-422 to RS-232 with part number 6AV6671-8XE00-0AX0 for connection of third-party PLC; the RS-422 interface can be screwed together and the cable outlet is 180 degrees.
Detailed Parameters
Converter:RS-422 to RS-232
Connector type (RS-422 side):male, 9-pole
Connector type (RS-232 side):male, 9-pole
Cable outlet:180 degrees
Mechanical connection:can be screwed together with RS-422 interface
Scope of supply:1 converter
Intended use:for connection of third-party PLC
Engineering Context
The converter translates between RS-422 (male, 9-pole) and RS-232 (male, 9-pole) connector interfaces.
The RS-422 interface connection is designed so it can be screwed together with the RS-422 interface.
The cable outlet orientation is specified as 180 degrees for the converter.
FAQ
1. What does 6AV6671-8XE00-0AX0 convert?
It converts between RS-422 (male, 9-pole) and RS-232 (male, 9-pole).
2. What are the connector types on the RS-422 and RS-232 sides?
RS-422 side: male, 9-pole; RS-232 side: male, 9-pole.
3. How is the RS-422 interface connection made?
It can be screwed together with the RS-422 interface.
4. What is the cable outlet configuration?
Cable outlet is 180 degrees.
5. What is included in the scope of supply?
Scope of supply: 1 converter.
6. For what is the converter intended?
For connection of third-party PLC.
