Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

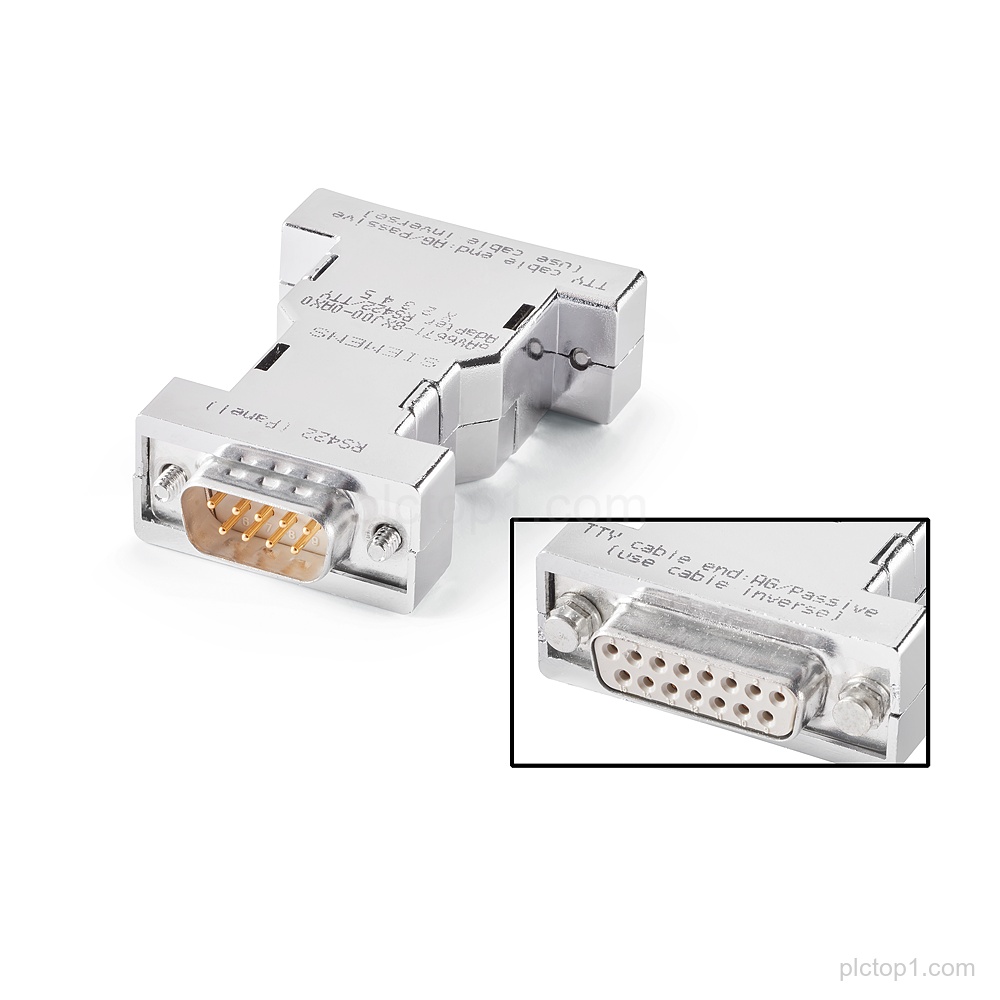

RS-422 converter with part number 6AV6671-8XJ00-0AX0 for connection of SIMATIC S5, featuring a male 9-pole to TTY female 15-pole interface and an RS-422 interface screw connection, with a cable outlet 180 degrees.
Detailed Parameters
Converter type:converter RS-422
Connector type (input):male, 9-pole
Connector type (output):TTY female, 15-pole
Connection method:can be screwed together with RS-422 interface
Cable outlet:180 degrees
Scope of supply:1 converter
Engineering Context
The converter RS-422 supports a male 9-pole to TTY female 15-pole transition for connection of SIMATIC S5.
The converter can be screwed together with the RS-422 interface to establish the connection.
The cable outlet is arranged at 180 degrees for routing from the converter.
FAQ
1. What does 6AV6671-8XJ00-0AX0 convert?
It is a converter RS-422 designed as male 9-pole to TTY female 15-pole for connection of SIMATIC S5.
2. How is the converter connected to the RS-422 interface?
It can be screwed together with the RS-422 interface.
3. What is the cable outlet orientation?
The cable outlet is 180 degrees.
4. What is included in the scope of supply?
1 converter.
