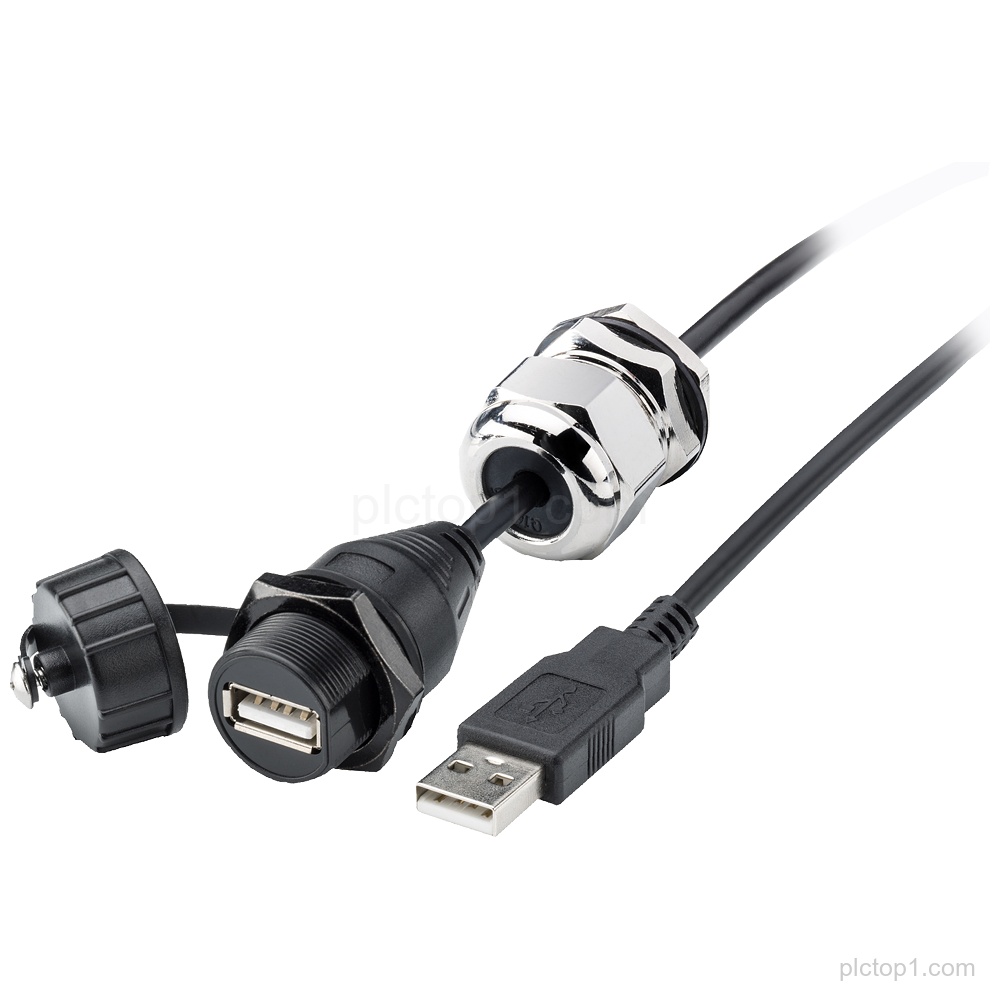

USB cable type B, female USB A, male USB A with M20 screw sealing; part number 6AV6881-0AF22-0DC0.
Detailed Parameters
Cable type:USB cable type B
Connectors:female USB A, male USB A
Sealing:M20 screw sealing
IP rating (female USB A):IP67
IP rating (male USB A):IP20
Cable length:0.8 m
Scope of supply:1 USB cable with screw sealing
Engineering Context
The cable provides a USB cable type B connection with female USB A and male USB A connectors.
The female USB A side is specified with IP67 and the male USB A side is specified with IP20.
M20 screw sealing is specified for the cable.
FAQ
1. What connector types are used in 6AV6881-0AF22-0DC0?
It is specified as USB cable type B with a female USB A and a male USB A.
2. What IP ratings are specified for the USB connectors?
The female USB A side is IP67 and the male USB A side is IP20.
3. What sealing is specified for the cable?
M20 screw sealing is specified.
4. What is the cable length and scope of supply?
The length is 0.8 m and the scope of supply is 1 USB cable with screw sealing.
